16~63A Industrial Circuit Breaker 1P+N 2P 3P+N 4P AC230/400V Nylon PA6 Recyclable Case
Product Details
| Model: | NB7LE-32/63, NB7ELE-32/63 | Pole(s): | 1P,1P+N,2,3P+N,4 |
|---|---|---|---|
| Volt: | 1P,2P-220/230/240V, 3P,4P-380~415V | Hz: | 50~60Hz |
| Phase: | 1/3 | Standard: | EN/IEC60898, IEC60947 |
| Certification: | CCC, CE, GS Etc. | Breaking Capacity: | Ics=Icn=6000A |
| Thermal Trip Curve: | C,D | Case Material: | Nylon PA6 Recyclable |
| Wiring: | Terminal Block, Busbar Duct Etc. IP20B | Electric Shock Protection: | Class II |
| Mechanical Life: | 10,000 | Electrical Life: | 5,000 |
| Highlight |
industrial type circuit breaker,molded case circuit breaker |
||
Product Description

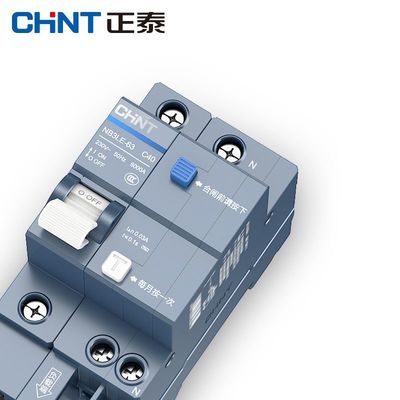

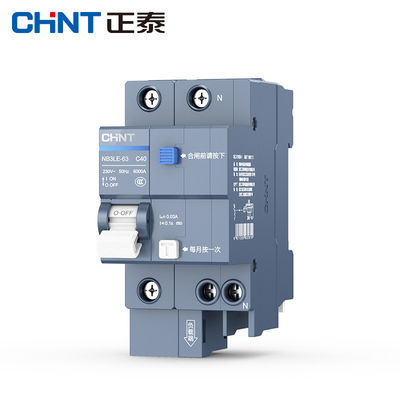

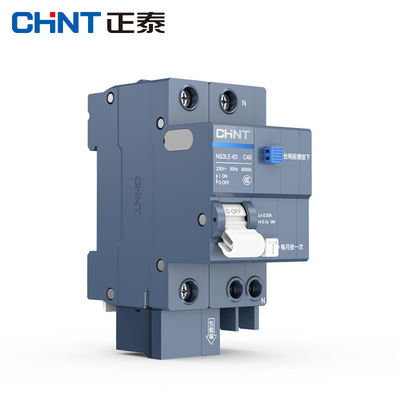

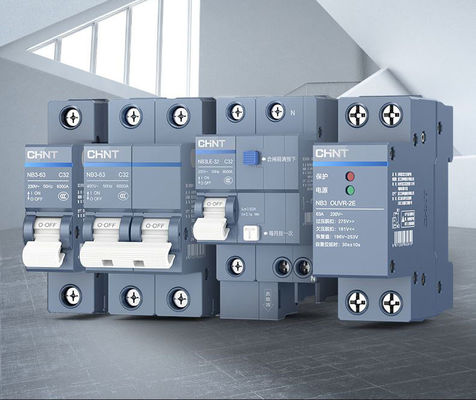

Chint NB3LE Earth Leakage Circuit Breaker with Overload Protection 16~63A 1P+N,2P,3P+N,4P for AC230/400V Use
RCBO, ELCB NXBLE
CHINT Made In China
AC Use Earth Leakage Circuit Breakers 6~63 A
Miniature Circuit Breakers for AC Current circuits, offering terminal distribution installation protection
The NB3LE-32/63 is a miniature circuit breaker that offers AC current circuit protection. It protects circuits against short-circuit currents and overload currents.
NB3LE-32/63 mini circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteris in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product with long life, is mainly used in AC 50Hz/60Hz single-pole 240 or two three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898 & BS 3711.
-
Compliant with IEC60898, IEC61009
-
Available in 1P+N, 2P 3P, 4P and 3P+N
-
C tripping curve
-
Up to 500V AC.
NB3LE-32/63 MCB combines the following functions:
b Protection of circuits against short-circuit currents
b Protection of circuits against overload currents
b Control
b isolation
Specification Table
|
Standard |
Rated Current (A) |
Pole |
Voltage(V) |
Breaking Capacity(A) |
|
BS3871-1 IEC60898 |
1 to 40 50 to 63 |
1P+N |
230/240 |
6000 |
|
2,3,3P+N,4 |
400/415 |
6000 |
||
|
|
|
|
|
|
CONSTRUCTION AND FEATURE
. Capable of switch electric circuit with load
. Capable of quickly releasing stored energy operation
. Adaptable to padlock device
. Contact position indication
. High short-circuit current withstand capacity
. High lighted of high making and breaking capacity
. Used as main switch for household and similar installation
TECHNICAL DATA
. Pole NO.:1,2, 4, 1P+N, 3P+N
. Rated Current(A):16,20,25,32,40,50,63
. Rated frequency: 50/60Hz
. Rated voltage: 230/400V AC
. Rated withstand current: 1000A Within lesc
. Electro-mechanical endurance: 10000 Cycles
. Rated short-circuit making capacity: 4500A, 6000A
. Connection Capacity: Rigid conductor 25mm2
. Connection Terminal:
. Screw terminal
. Pillar terminal with lamp
. Installation:
. Panel mounting
OVERALL & INSTALLATION DIMENSIONS
|
|
Standard |
|
IEC/EN 61009-1 |
|
Mechanical |
Electrical life |
|
4000 |
|
Mechanical life |
|
10000 |
|
|
Protection degree |
|
IP20 |
|
|
Reference temperature for |
℃ |
30 |
|
|
Ambient temperature(with daily |
℃ |
-5..+40 |
|
|
Storage temperation |
℃ |
|
|
|
Installation |
Terminal connection type |
|
Cable//U-type busbar/pin-type busbar |
|
Terminal size top/bottom for cable |
mm2 |
25 |
|
|
AWG |
18-3 |
||
|
Terminal size top/bottom for busbar |
mm2 |
25 |
|
|
mm2 |
18-3 |
||
|
Tightening torque |
N*m |
2 |
|
|
In-Ibs. |
18 |
||
|
Mounting |
|
On DN rail EN 60715(35mm)by meas of fast clip device |
|
|
Connection |
|
From top and bottom |
|
Rated current |
Temperature compensation coefficient under various operational temperature |
||||||||
|
-10℃ |
0℃ |
10℃ |
20℃ |
30℃ |
40℃ |
50℃ |
55℃ |
60℃ |
|
|
6 |
1.2 |
1.14 |
1.09 |
1.05 |
1.00 |
0.96 |
0.8 |
0.75 |
0.7 |
|
10-32 |
1.18 |
1.12 |
1.08 |
1.04 |
100 |
0.96 |
0.92 |
0.88 |
0.84 |
|
40 |
1.16 |
1.12 |
1.07 |
1.03 |
1.00 |
0.97 |
0.87 |
0.83 |
0.80 |
|
|
Standard |
|
IEC/EN 61009-1 |
|
Electrical |
Rated current In |
A |
6,10,16,20,25,32,40,50,63 |
|
poles |
|
1P+N,2P,3P,4P |
|
|
Rated voltage Ue |
V |
230/400 |
|
|
Insulation voltage Ui |
V |
500 |
|
|
Rated frequency |
Hz |
50/60Hz |
|
|
Rated breaking capacity |
KA |
6000 |
|
|
Rated impelse withstand voltage(1.2/50)UimpStandard |
V |
4000 |
|
|
Dielectric test voltage at ind,Fred,for 1 min |
KV |
2 |
|
|
Polluttion degree |
|
2 |
|
|
Themo-magnetic release characteristis |
|
B,C,D |
Product Highlights
