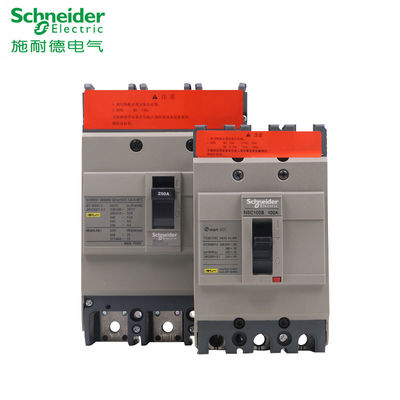

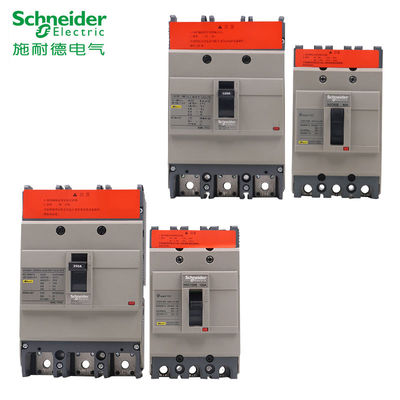

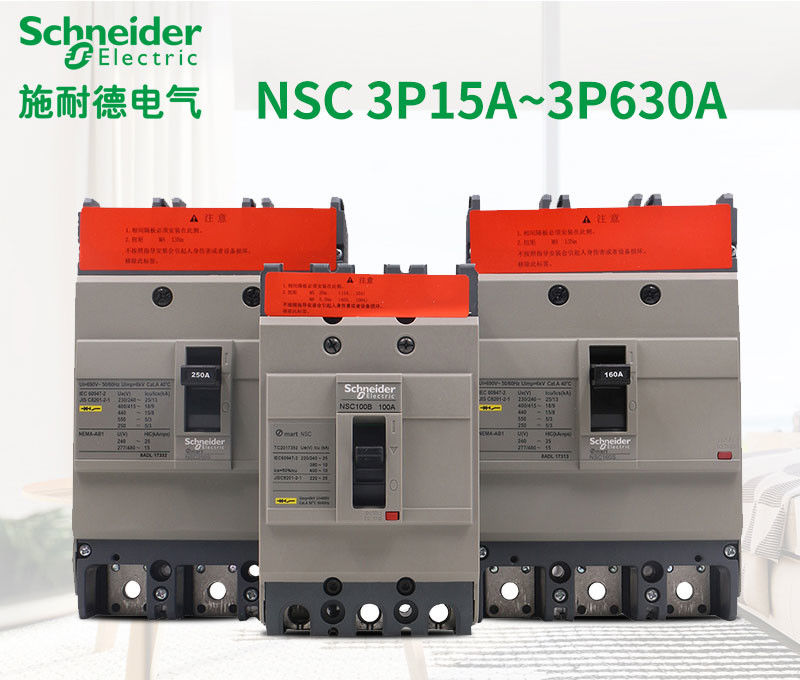

3 4 Pole Industrial Circuit Breaker Osmart NSC Molded Case 15~630A 35kA 380-400V

3 4 Pole Industrial Circuit Breaker Osmart NSC Molded Case 15~630A 35kA 380-400V

  • 3 4 Pole Industrial Circuit Breaker Osmart NSC Molded Case 15~630A 35kA 380-400V
  • 3 4 Pole Industrial Circuit Breaker Osmart NSC Molded Case 15~630A 35kA 380-400V
  • 3 4 Pole Industrial Circuit Breaker Osmart NSC Molded Case 15~630A 35kA 380-400V
  • 3 4 Pole Industrial Circuit Breaker Osmart NSC Molded Case 15~630A 35kA 380-400V
3 4 Pole Industrial Circuit Breaker Osmart NSC Molded Case 15~630A 35kA 380-400V
Product Details:
Place of Origin: China
Brand Name: Schneider Electric
Certification: CE etc.
Model Number: NSC
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD30~USD500
Packaging Details: Standard export carton
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 1,000pcs/month
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (33)
Weatherproof Distribution Box (48)
Fiberglass Enclosure Box (60)
ATS Automatic Transfer Switch (68)
EDI Modules (160)
Ultrafiltration Membrane Modules (72)
Industrial Circuit Breaker (85)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (144)
Moon Balloon Light (145)
Tripod LED Balloons (122)
Inflatable Light Tower (76)
Terminal Block Accessories (6)
Detailed Product Description
Product Name: Mccb Moulded Case Circuit Breaker,Good Quality 3 Pole Tmax 100A Mccb Molded Case Circuit Breaker,compact NS 800A 1000A 1250A 1600A Mccb Molded Case Circuit Breaker Rated Voltage: 380V,380/400V,AC230/440/660,230/400V AC 50/60Hz
Rated Current: 16,25,25,32,40,50,63,80,100,125,160,200,250,315,350,400,500,630A Poles Number: 3P 4P
Breaking Capacity: 7.5-35kA Material: Plastic,High Standard Plastic Silver Copper,Nylon PA66
Installation: Fixed Standard: IEC 60947-2
Highlight:

molded case circuit breaker

,

electric circuit breaker

CM1 Molded Case Circuit Breaker 2, 3, 4 Pole 10~630A 380V 415V Icu up to 50kA in compliance with IEC 60947





characteristic

  • As the main switch of the mechanical equipment

  • Rated current: full range 15~630A

  • Voltage level: 550V (15~250A), 440V (250A~630A)

  • Breaking capacity: E7.5KA, B10KA, S18KA, K35KA

  • Trip unit: thermomagnetic (distribution protection), single magnetic (motor protection)

  • Number of poles: 3P/4P

  • Installation method: Fixed installation, horizontal, vertical and flat installation, does not affect electrical performance. Ambient temperature: -25°C~+70°C, derating should be considered when higher than 50°C (40°C should be considered for derating at 630A)




Advantage

  • 60/100 small frame products for small current and small size applications for OEM customers

  • 160/250A products share a size, easy to upgrade and interchange 400/630A high current products with dual rotary contact design, superior current limiting capability greatly reduces the short circuit current damage to the equipment

  • The circuit breaker isolation position has a mechanical indication and a reliable indication status

  • The accessories are modular and can be freely replaced

  • Complete certification, green: CCC, CE, CCS (100A), RoHS (250A)



application

  • All OEM industries:

  • Rubber and plastic machinery, textile machinery, air conditioning, HVAC, machine tools, communication power, printing and packaging, construction machinery, lifting machinery, elevator industry, etc.



main information

Product Series

Osmart NSC

product type

breaker

Product short name

NSC630K

Frame rated current

630 A

Circuit breaker application

Distribution protection

Number of poles

3P

Rated current [In]

630 A on 40 °C

Breaking capacity

70 kA Icu on 220/240 V AC 50/60 Hz in accordance with IEC 60947-2
35 kA Icu on 380 V AC 50/60 Hz in accordance with IEC 60947-2
35 kA Icu on 400 V AC 50/60 Hz in accordance with IEC 60947-2



Additional information

Protection pole description

3d

Circuit breaker model

K

Network Type

AC

Network frequency

50/60 Hz

Control type

handle

Installation type

Fixed

Installation method

Base plate installation

Connection method - upper end

Front connection

Connection method - lower end

Front connection

Rated insulation voltage [Ui]

690 V in accordance with IEC 60947-2

Rated impulse withstand voltage [Uimp]

6 kV in accordance with IEC 60947-2

Rated working voltage [Ue]

440 V AC 50/60 Hz in accordance with IEC 60947-2

Use category

AC class

Rated use short circuit breaking capacity [Ics]

75 % on 220/240 V AC 50/60 Hz in accordance with IEC 60947-2
50% on 380/400 V AC 50/60 Hz in accordance with IEC 60947-2

Mechanical life

10,000 times

Electrical life

3000 times in accordance with IEC 60947-2

Phase spacing

45 mm

Trip unit name

ETS 2.3

Trip unit type

Electronic

Trip unit rating

630 A on 40 °C

Type of protection

Overload protection (long delay)
Short circuit short delay protection
Short circuit transient protection

Long delay current setting type

Fixed

Long delay current setting value [Ir]

1 In

Long delay time setting type

Fixed

[tr] Long delay time setting range

90...180 s on 1.5 x Ir
5...7.5 s on 6 x Ir
3.2...5 s on 7.2 x Ir

Short delay current setting type

8 files adjustable

Short delay current setting value [Isd]

2...10 x Ir

Short delay time setting type

Fixed

Short delay time setting value [tsd]

0...60 s

Instantaneous protection current setting type

Fixed

Instantaneous protection setting [Ii]

11 x In

height

255 mm

width

140 mm

depth

110 mm

product weight

6.2 kg



surroundings

Standards compliant

IEC 60947-2

certified product

CE

Pollution level

3 in accordance with IEC 60947

Operating temperature

-25...70 °C

Storage ambient temperature

-35...85 °C
