3P 4P NC2 Ac Contactor Switch , 3 Phase AC Contactor 115A~800A Coil Voltage 24V 110V 230V 380V
Product Details
| Main Circuit Rating Current: | 115-800A | Electricity Type: | AC,AC/DC |
|---|---|---|---|
| Main Circuit Rating Voltage: | 600V,220V,380V,110V,24V | Number Of Pole: | 3,4 |
| Phase: | 3Phase | Frequency: | 50/60Hz |
| Product Name: | Ac Contactor CJX2N-D09,3 Pole Ac Contactor | Rated Current: | 630,800A |
| Standard: | IEC60947,EN/IEC60947-4-1 | ||
| Highlight |
home ac contactor,electrical control equipment |
||
Product Description

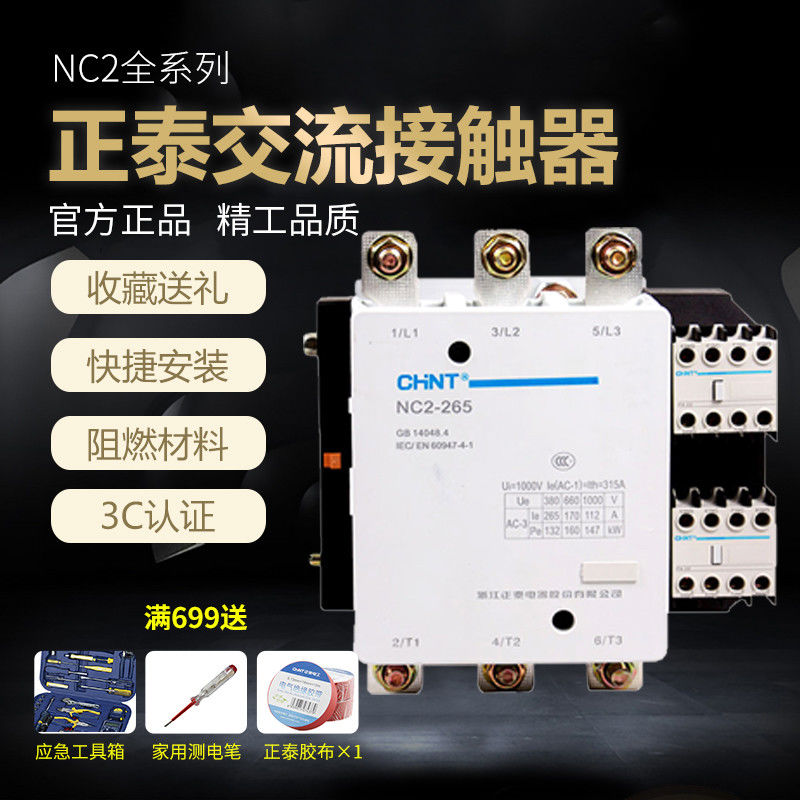

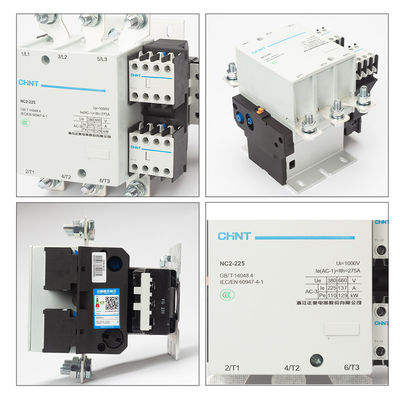

Chint NC2 AC Contactor 3P, 4P 115A~800A 115,150,185,225,330,400,630,800A AC-3 AC-1 Coil Voltage 24V,110V,230V,380V
characteristic
• Current range 115~800A;
• Different types of starters are available: standard motor start contactors, reversible contactors, star-delta starters, autotransformer starters, etc.
• Optional connection: bolt connection (09~620A), ring terminal connection (09~38A), terminal connection (40~65A), convenient for customer installation;
• Product Certification: CCC, CE, CCS;
Advantage
• Compact installation
> Contactors to 38A and protection components are only 45mm wide
> Surge suppressor installation requires no tools and can be inserted directly into the contactor without taking up more space
> Reversible contactor is only 90mm wide, mechanical interlocking does not take up extra space, installation takes almost no time
> Starter components provide pre-wired modules for quick and easy assembly
• Highly integrated
> to 100A contactor integration 1 normally open / 1 normally closed auxiliary contact
> DC coil with built-in bidirectional suppression diode
> Reversible contactor group with built-in bidirectional suppression diode
• Safe and reliable
> The main circuit and control circuit of the control and protection components are clearly distinguished
> Mirrored contact design that meets safety standards, ensuring 10 million reliable actions
> Protective cover prevents accidental contact of the contactor
• outstanding quality
> DC coils have a wide range of control voltages (0.7~1.25Uc)
> Strong earthquake resistance
> lower noise
> Increased terminal strength
CJX2 40-65A:
> Permanent torque, reliable installation
> Compact and space saving
> Easy to install, saves time
> Easy to maintain and save costs
| Product Series |
NC2
|
|---|---|
| product name |
AC Contactor
|
| product type |
Contactor
|
| Product short name |
NC2
|
| Contactor application area |
Applied to AC loads with a power factor greater than or equal to 0.95
Squirrel cage motor for switching on and off normal start |
| Use category |
AC-1
AC-3 |
| Number of poles |
3P
|
| Power pole contact composition |
3 NO
|
| Rated operating current [Ie] |
1000 A 40 °C) on <= 440 V AC AC-1 for power supply circuit
620 A 40 °C) on...<= 440 V AC AC-3 Applicable power circuit |
| Control loop voltage |
380 V AC 50/60 Hz
|
| Auxiliary contact type |
Excluded
|
| Rated working voltage [Ue] |
Power circuit: <= 1000 V AC 25...400 Hz
Power circuit: <= 460 V DC |
|---|---|
| Motor power (kW) |
200 kW on 220/240 V AC 50/60 Hz
335 kW on 380/400 V AC 50/60 Hz 375 kW on 415 V AC 50/60 Hz 400 kW on 440 V AC 50/60 Hz 400 kW on 500 V AC 50/60 Hz 450 kW on 660/690 V AC 50/60 Hz 450 kW on 1000 V AC 50/60 Hz |
| Electrical life |
0.33 kA2.s 1000 A AC-1 Ue condition <= 440 V
0.8 kA2.s 640 A AC-3 Ue condition <= 440 V 0.6 kA2.s 470 A AC-3 Ue condition 660/690 V |
| Mechanical life |
5 kA2.s
|
| Maximum operating frequency |
1200 times / hour on ... <55 °C
|
| Action time |
40...80 ms closed
100...200 ms break |
| Control voltage limit |
Operation: 0.85...1.1 Uc on...40...400 Hz 55 °C)
Release: 0.25...0.5 Uc on...40...400 Hz 55 °C) |
| (~50Hz hold) power consumption (VA) |
22 VA 50 Hz 0.9 20 °C)
22 VA 60 Hz 0.9 20 °C) |
| Conventional heating current [Ith] |
1000 A on <40 °C for power supply circuit
|
| Average impedance |
0.12 mΩ - Ith 1000 A 50 Hz for power supply circuits
|
| Heat dissipation |
22 W
|
| Rated short-time withstand current [Icw] |
5050 A on <40 °C - 10 s for power supply circuit
4400 A on <40 °C - 30 s for power supply circuit 3400 A on <40 °C - 1 minute for power circuit 2200 A on <40 °C - 3 minutes for power circuit 1600 A on <40 °C - 10 minutes for power circuit |
| Fuses used with relays |
800 A gG on...<= 440 V for power supply circuit
630 A aM on...<= 440 V Applicable power circuit 1000 A gG on...<= 440 V Applicable power circuit |
| Overvoltage category |
III
|
| Rated insulation voltage [Ui] |
Power circuit: 1000 V in accordance with IEC 60947-4-1
|
| Installation method |
Rail mounting
|
| Wiring ability |
Control circuit: Bolt fastening cable selection: Cord without cable terminal
Control circuit: Bolt fastening cable selection: Cord with cable terminal Control circuit: Bolt fastening cable selection: Single strand hard wire without twist terminal Power circuit: Bus terminal cable selection: Hard wire without cable terminal Busbar cross section: 60 x 5 mm |
| Tightening torque |
Control circuit: 1.2 Nm Fastened by bolts
Power circuit: 58 Nm through bus terminal Power circuit: 58 Nm through cable connector |
| height |
280 mm
|
| width |
309 mm
|
| depth |
255 mm
|
| Control loop characteristics |
AC on 50/60 Hz
|
| Rated impulse withstand voltage [Uimp] |
8 kV in accordance with IEC 60947
|
| Safety cover |
no
|
| (~50Hz pull-in) power consumption (VA) |
1650 VA 50 Hz 0.9 20 °C)
1650 VA 60 Hz 0.9 20 °C) |
| product weight |
20.1 kg
|
| model |
LC1D
|
| Standards compliant |
IEC 60947-4-1
GB 14048.4 |
|---|---|
| certified product |
CCC
|
| Pollution level |
3
|
| Operating temperature |
-5...60 °C
|
| Storage ambient temperature |
-60...80 °C
|
| Ambient air temperature |
-40...70 °C (allowed under Uc)
|
| Working elevation |
3000 m without
|
| Shock and vibration resistance |
Seismic performance contacts open (2 gn (5...300 Hz)) in accordance with IEC 60068-2-6
Seismic performance contact closure (4 gn (5...300 Hz)) in accordance with IEC 60068-2-6 Impact resistance 11 ms Contact closure condition (15 gn) in accordance with IEC 60068-2-27 Impact resistance 11 ms contact open (6 gn) in accordance with IEC 60068-2-27 |
| Quality identification |
CE statement
|
