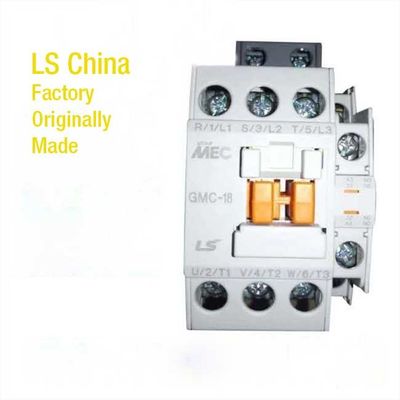

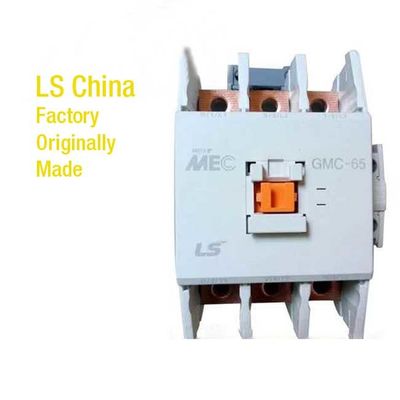

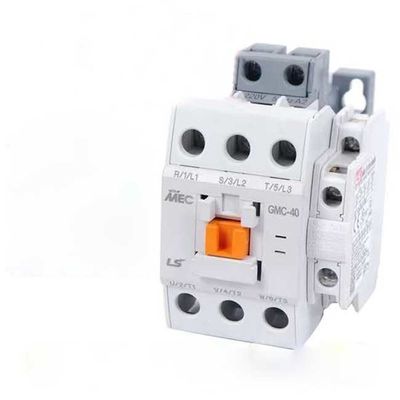

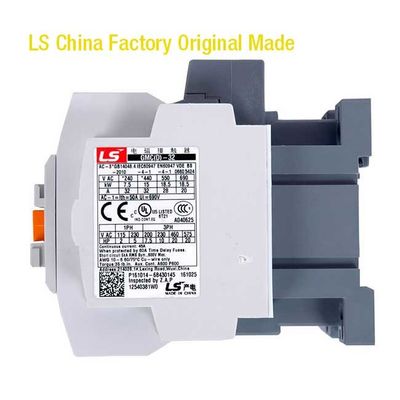

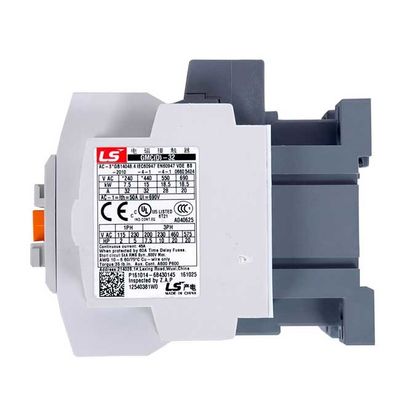

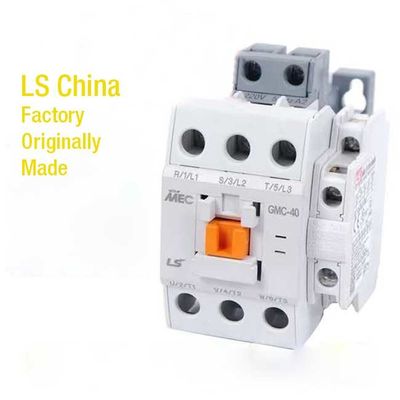

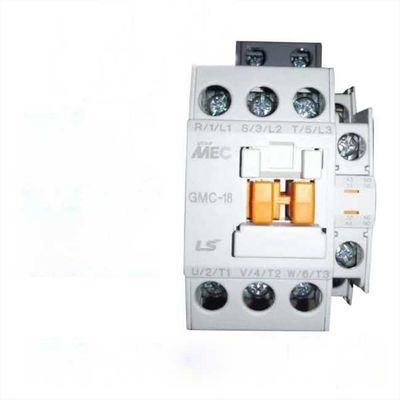

LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated

LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated

  • LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated
  • LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated
  • LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated
  • LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated
  • LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated
  • LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated
  • LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated
LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated
Product Details:
Place of Origin: China
Brand Name: LS
Certification: CE,CCC,CB etc.
Model Number: Meta-MEC, GMC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD6~USD40(~3P/95A)
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 1,000pcs/month
Contact Now
Detailed Product Description
Main Circuit Rating Current: 9-85A Electricity Type: AC,AC/DC
Main Circuit Rating Voltage: 600V,220V,380V,110V,24V Number Of Pole: 3,4
Phase: 3,1Phase Frequency: 50/60Hz
Product Name: Ac Contactor CJX2N-D09,3 Pole Ac Contactor Rated Current: 85A
Standard: IEC60947,EN/IEC60947-4-1
High Light:

ac contactor switch

,

home ac contactor

LS GMC Contactor 3P, 4P 9A,12A,18A,32,40A,50A,65A,75A,85A, AC-3 AC-1 Coil Voltage 24V,110V,230V,380V





characteristic
• Current range 09~85A;
• AC, DC control coil is optional;
• Different types of starters are available: standard motor start contactors, reversible contactors, star-delta starters, autotransformer starters, etc.
• Optional connection: bolt connection (09~8000A);
• Product Certification: CCC, CE, CCS;


Advantage
• Compact installation
> Surge suppressor installation requires no tools and can be inserted directly into the contactor without taking up more space
> Reversible contactor is only 90mm wide, mechanical interlocking does not take up extra space, installation takes almost no time
> Starter components provide pre-wired modules for quick and easy assembly
• Highly integrated
> to 100A contactor integration 1 normally open / 1 normally closed auxiliary contact
> DC coil with built-in bidirectional suppression diode
> Reversible contactor group with built-in bidirectional suppression diode
• Safe and reliable
> The main circuit and control circuit of the control and protection components are clearly distinguished
> Mirrored contact design that meets safety standards, ensuring 10 million reliable actions
> Protective cover prevents accidental contact of the contactor
• outstanding quality
> DC coils have a wide range of control voltages (0.7~1.25Uc)
> Strong earthquake resistance
> lower noise
> Increased terminal strength

> Permanent torque, reliable installation
> Compact and space saving
> Easy to install, saves time



> Easy to maintain and save costs

main information
Product Series
Metal MEC
product name
AC Contactor
product type
Contactor
Product short name
GMC
Contactor application area
Applied to AC loads with a power factor greater than or equal to 0.95
Squirrel cage motor for switching on and off normal start
Use category
AC-3
AC-1
AC-4
Number of poles
3P
Power pole contact composition
3 NO
Rated working voltage [Ue]
Power circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC
Rated operating current [Ie]
18 A 60 °C) on <= 440 V AC AC-3 Applicable power circuit
32 A 60 °C) on <= 440 V AC AC-1 for power supply circuit
Motor power (kW)
4 kW on 220...230 V AC 50/60 Hz (AC-3)
7.5 kW on 380...400 V AC 50/60 Hz (AC-3)
9 kW on 415...440 V AC 50/60 Hz (AC-3)
10 kW on 500 V AC 50/60 Hz (AC-3)
10 kW on 660...690 V AC 50/60 Hz (AC-3)
4 kW on 400 V AC 50/60 Hz (AC-4)
Motor power HP (UL / CSA)
1 hp on 115 V AC 50/60 Hz for 1-phase motors
3 hp on 230/240 V AC 50/60 Hz for 1-phase motors
5 hp on 200/208 V AC 50/60 Hz for 3-phase motors
5 hp on... 230/240 V AC 50/60 Hz for 3-phase motors
10 hp on 460/480 V AC 50/60 Hz for 3-phase motors
15 hp on 575/600 V AC 50/60 Hz for 3-phase motors
Control loop characteristics
AC on 50/60 Hz
Control loop voltage
230 V AC 50/60 Hz
Auxiliary contact type
1 NO + 1 NC
Rated impulse withstand voltage [Uimp]
6 kV in accordance with IEC 60947
Overvoltage category
III
Conventional heating current [Ith]
10 A on <60 °C for signal circuit
32 A on <60 °C for power supply circuit
Rated turn-on capability [Irms]
140 A AC suitable signal circuit in accordance with IEC 60947-5-1
250 A DC suitable signal loop in accordance with IEC 60947-5-1
300 A on 440 V applicable power supply circuit in accordance with IEC 60947
Rated breaking capacity
300 A on 440 V applicable power supply circuit in accordance with IEC 60947
Rated short-time withstand current [Icw]
145 A on <40 °C - 10 s for power supply circuit
240 A on <40 °C - 1 s for power supply circuit
40 A on <40 °C - 10 minutes for power circuit
84 A on <40 °C - 1 minute for power circuit
100 A - 1 s for signal circuits
120 A - 500 ms Applicable signal loop
140 A - 100 ms for signal circuits
Fuses used with relays
10 A gG Applicable signal circuit in accordance with IEC 60947-5-1
50 A gG on...<= 690 V with type 1 for power supply circuit
35 A gG on ...<= 690 V with type 2 for power supply circuit
Average impedance
2.5 mΩ - Ith 32 A 50 Hz for power supply circuits
Rated insulation voltage [Ui]
Power circuit: 690 V in accordance with IEC 60947-4-1
Power circuit: 600 V CSA certification
Power circuit: 600 V UL certification
Signal loop: 690 V in accordance with IEC 60947-1
Signal loop: 600 V CSA certified
Signal circuit: 600 V UL certification
Electrical life
1.65 kA2.s 18 A AC-3 Ue condition <= 440 V
1 kA2.s 32 A AC-1 Ue condition <= 440 V
Power consumption per pole
2.5 W AC-1
0.8 W AC-3
Safety cover
band
Installation method
Rail mounting
Base plate installation
standard
CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508

LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated 0

LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated 1

LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated 2

LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated 3

LS GMC Contactor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Highly Integrated 4
