LRD10C LED35C AC Motor Contactor Thermal Overload Relay Contactor Setting Current 4~6A 30~38A

Product Details:

Place of Origin:	China
Brand Name:	Schneider Electric (TeSys)
Certification:	CE,CCC,CB etc.
Model Number:	LRD (TeSys D)

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD15~USD20
Packaging Details:	Standard export carton
Delivery Time:	5-8 working days or bulk order negotiate
Payment Terms:	T/T, Western Union
Supply Ability:	5,000pcs/month

Contact Now

All Products

Lighting Distribution Box (33)

Electrical Distribution Box (33)

Weatherproof Distribution Box (48)

Fiberglass Enclosure Box (60)

ATS Automatic Transfer Switch (68)

EDI Modules (128)

Ultrafiltration Membrane Modules (49)

Industrial Circuit Breaker (85)

Solar PV System (72)

Electric EV Charging Station (21)

Modular Timing Relays (12)

Automation Control Relays (64)

Voltage Regulator Transformer (16)

Film Lighting Balloons (123)

Moon Balloon Light (131)

Tripod LED Balloons (71)

Inflatable Light Tower (56)

Terminal Block Accessories (6)

Detailed Product Description

Setting Current:	4~6A, 32~38A,	Electricity Type:	AC,AC/DC
Main Circuit Rating Voltage:	600V,220V,380V,110V,24V	Number Of Pole:	3,4
Phase:	3,1Phase	Frequency:	50/60Hz
Product Name:	Ac Contactor CJX2N-D09,3 Pole Ac Contactor	Rated Current:	38A, 95A Etc.
Standard:	IEC60947,EN/IEC60947-4-1
Highlight:	home ac contactor , electrical control equipment

Schneider Electric LRD10C, LED35C Thermal Overload Relay For Contactor Setting Current 4~6A, 30~38A, 400V IEC947-4-1

characteristic

• Manual/automatic reset • Pre-wired components • Independently mounted terminal block • Remote electrical reset • 45mm wide to 18.5Kw, 55mm wide from 15Kw to 30Kw, can be combined with Tesys D contactors • Terminal block: screw terminal block, Everlink wiring Terminal • Class 10 A

Advantage

Safe and effective thermal protection
The LRD thermal protection relay integrates manual/remote reset function, and the screw terminal and Everlink terminal block are easy to install. It provides reliable thermal protection to the 620A for a full range of domestic Tesys D contactors, and can be assembled into a compact motor with the contactor of 150A. Starter.

application

Industry, infrastructure, construction, etc.:
• Standard motor protection • Line protection • Protection: Motor overload, phase loss

**main information**
Product Series	TeSys
product name	TeSys LRD
product type	E type 3-pole thermal overload relay
Product short name	LRD
Relay application	Motor protection
The scope of products	LC1D09...D38
Relay setting range	4...6 A

**Additional information**
Control type	Red (Press) button: Stop (Make N/C contact action, does not affect N/O contact) Blue (press) button: reset
Current setting range	3 A on 120 V AC-15 for signal circuit 0.22 A on 125 V DC-15 for signal circuit
Hot off towing level	Level 10A in accordance with IEC 60947-4-1
Trip threshold	1.14 ± 0.06 In in accordance with IEC 60947-4-1
Phase loss sensitivity	Two phases 1.3 Ir, the other phase is 0 in accordance with IEC 60947-4-1
Rated impulse withstand voltage [Uimp]	6 kV in accordance with IEC 60801-5
Conventional heating current [Ith]	5 A applicable signal loop
Installation method	Mounted directly under the contactor Base plate installation DIN rail mounting terminal block
Wiring ability	Control circuit: Bolt fastening 2 1...2.5 mm2 Cable selection: Cord without cable terminal Control circuit: Bolt fastening 2 1...2.5 mm2 Cable selection: Corded cable terminal Power circuit: Bolt tightening 1 1.5...10 mm2 Cable selection: Cord without cable terminal Power circuit: Bolt fastening 1 1...4 mm2 Cable selection: Cord with cable terminal Control circuit: Bolt tightening 1 1...2.5 mm2 Cable selection: Cord without cable terminal Control circuit: Bolt tightening 1 1...2.5 mm2 Cable selection: Corded cable terminal Control circuit: Spring terminal 1 1...2.5 mm2 Cable selection: Cord without cable terminal Power circuit: Spring terminal 1 1.5...4 mm2 Cable selection: Cord without cable terminal Control circuit: Bolt tightening 1 1...2.5 mm2 Cable selection: Hard wire without wire terminal Control circuit: Bolt fastening 2 1...2.5 mm2 Cable selection: Hard wire without wire terminal Control circuit: Spring terminal 1 1...2.5 mm2 Cable selection: Hard wire without wire terminal Power circuit: Bolt fastening 1 1...6 mm2 Cable selection: Hard wire without cable terminal Power circuit: Spring terminal 1 1.5...4 mm2 Cable selection: Hard wire without cable terminal
Tightening torque	Control circuit: 1.7 Nm Fastened by bolts Power circuit: 1.7 Nm Fastened by bolts
width	45 mm
depth	70 mm
product weight	0.124 kg

**surroundings**
Standards compliant	GB 14048.4 IEC 60947-4-1
certified product	CCC CE
IP protection level	IP20 complies with IEC 60529
Protective measures	TH conforms to IEC 60068
Ambient temperature	-20...60 °C without derating in accordance with IEC 60947-4-1 -40...70 °C with derating
Storage ambient temperature	-60...70 °C
Refractory and resistant to abnormal high temperatures	850 °C in accordance with IEC 60695-2-1
Flame retardant	V1 complies with UL 94
Shock and vibration resistance	Seismic performance: 6 gn, in accordance with IEC 60068-2-6 Impact resistance: 15 gn, , 11 ms in accordance with IEC 60068-2-7
Insulation performance	6 kV on 50 Hz in accordance with IEC 60255-5

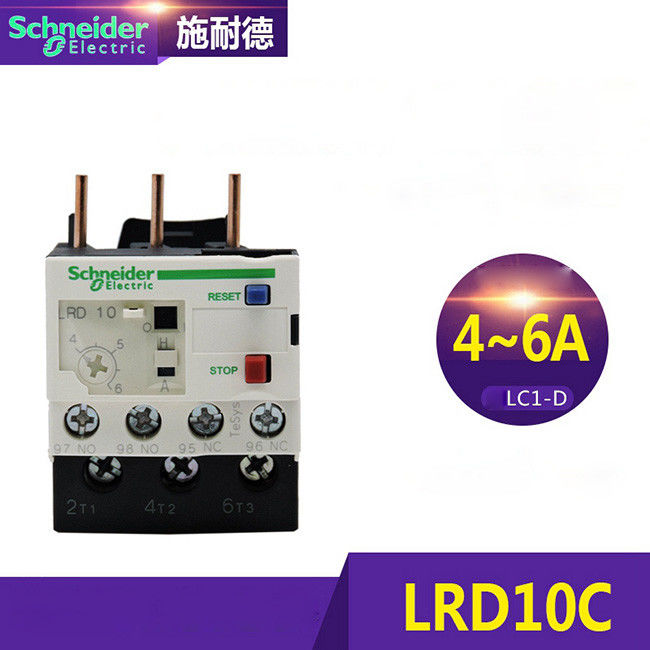

LRD10C LED35C AC Motor Contactor Thermal Overload Relay Contactor Setting Current 4~6A 30~38A 0
