Power Measurement Current Transformer 100/5-4000/5 For Low Voltage Distribution Panel IEC60044-1
Product Details
| Rated Current: | 50~4,000A | Rated Voltage: | 230/400VAC |
|---|---|---|---|
| Accuracy Class: | 1, 0.5 | Insulation Voltage: | 660V |
| Install: | DIN Rail Mount, Screw Plate Mount | ||
| Highlight |
ac contactor switch,home ac contactor |
||
Product Description

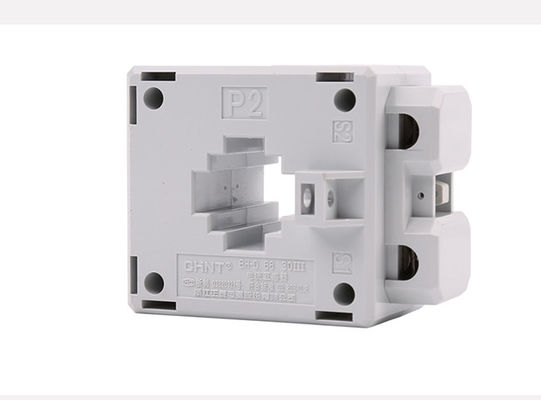

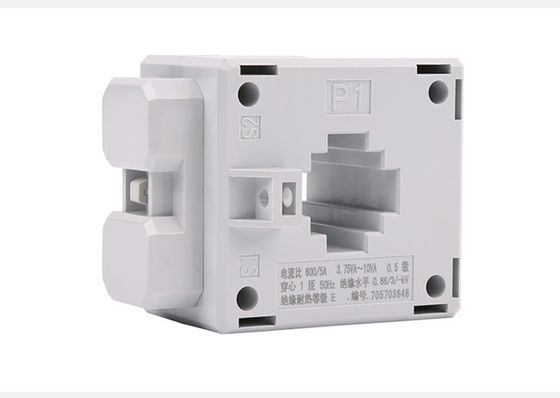

Chint BH-0.66 Current Transformer 100/5 to 4000/5 for Low Voltage Distribution Panel Power Measurement IEC60044-1
General
-
These current transformers are a comprehensive offer, ideally suited for use throughout entire low voltage field, from 40A to 4000A. They deliver at the secondary a current (0-5 A) proportional to the current measured at the primary; they can be used in combination with measurement devices (switchboard instrumentation, kilowatt-hour meters, power-monitoring units, etc.)
Primary current can be measured in two ways: -
CT with let-through primary
-
CT with connection of primary by screw and nut
|
range |
BH-0.66 |
|---|---|
|
product name |
CT |
|
product or component type |
Current transformer |
|
secondary current |
5 A |
|
accuracy class |
Class 0.5 at 8 VA |
|
[In] rated current |
300 A |
|
current transformer type |
Tropicalised for busbar and cable |
|---|---|
|
current transformer ratio |
300/5 |
|
[Ith] conventional free air thermal current |
18 kA |
|
dynamic withstand current |
2.5 Ith |
|
maximum safety factor |
5 |
|
[Ue] rated operational voltage |
< 720 V AC 50/60 Hz |
|
[Ui] rated insulation voltage |
3 kV |
|
mounting mode |
Insulated locking screw |
|
mounting support |
DIN rail |
|
width |
56 mm outside: |
|
height |
80 mm outside: |
|
depth |
43 mm frame: |
|
diameter |
27 mm |
|
net weight |
0.303 kg |
|
[Uimp] rated impulse withstand voltage |
3 kV |
|
electrical insulation class |
Class B |
|
cable outer diameter |
27 mm |
|
opening of bars |
32.5 x 10.5 |
|
sealing |
Without |
|
standards |
VDE 0414 |
|---|---|
|
product certifications |
CE |
|
IP degree of protection |
IP20 |
|
relative humidity |
0…95 % |
|
ambient air temperature for operation |
-25…60 °C |
