ACLSG-OCLSG Low Voltage Components Reactor Frequency Inverter Harmonic Filtering AC230V 400V 690V
Product Details
| Rated Frequency: | 50/60Hz | Ambient Temperature: | -25~40 Degree Celsius |
|---|---|---|---|
| Rated Capacity: | 0.3~7.2kvar | Voltage Range: | 230V, 400V, 450V, 525V, 690V, |
| Install: | Screw Plate Mount | ||
| Highlight |
surge protection device,digital multifunction meter |
||
Product Description

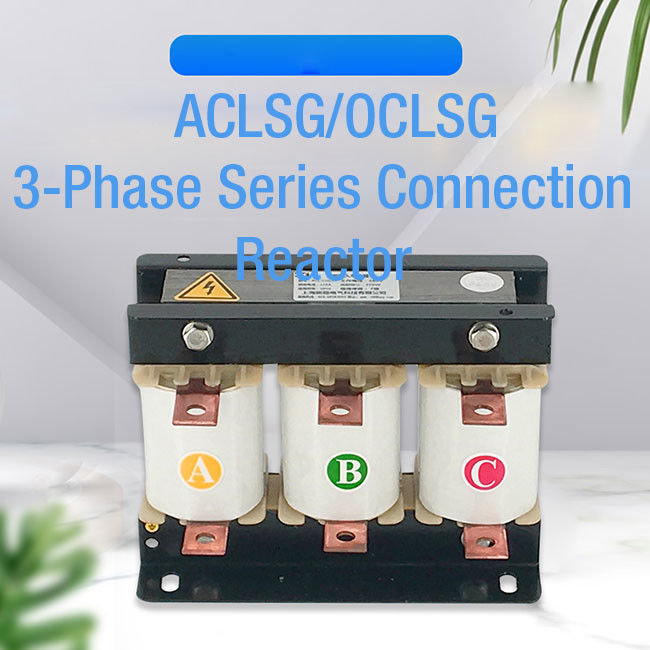

CKSG Low Voltage 3-phase Low Voltage Serial Reactor for Harmonic Filtering and Power Factor Correction AC230V,400V,690V
General
Three phase inductors designed to weaken harmonic amplification in highly polluted networks, and protect multiple installation components.
Features
Input AC Reactor is applied at the AC drive input side to suppress inrush voltage, designed to reduce inrush & peak current, improve the real power factor, restrain the grid harmonics and improve the input current waveform.
Output AC Reactor is applied to smoothing the circuit and filter harmonics in order to reduce the transient voltage dt/dv and extend the service life of the electric motors, which reduces the motor noise, eddy loss and leakage current resulting from the output of high harmonics and protects the power switch within the inverters.

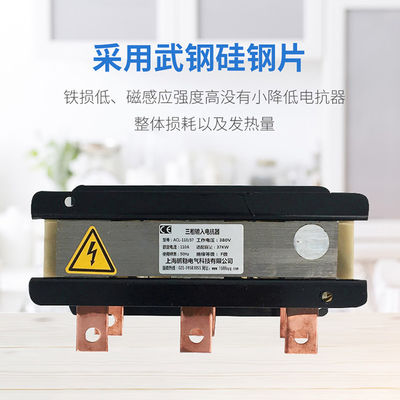

Due to the excellent foil winding structure, Input AC Reactor is characterized by small DC resistance, strong ability to withstand short circuit and strong short-time overload capability. F Class insulation materials equip the products with reliable performance even in harsh operating conditions;designed with low magnetic flux density , the reactor is of high linearity and powerful overload capacity. Moreover, combined with VPI process ,the reactor noise is low; With the core made of grain-oriented cold rolled silicon steel sheets, the reactor boasts high efficiency, low core loss and low temperature rise.
Different choices of magnetic materials (Silicon steel sheets, ferrite material or amorphous core) are available to match the frequencies of different application. Due to the excellent foil winding structure, Output AC Reactor is characterized by small DC resistance, strong resistance to electromagnetic interference and strong short-time overload capability. F Class insulation materials equip the products with reliable performance even in harsh operating conditions;Designed with low magnetic flux density , the reactor is of high linearity and powerful overload capacity. Moreover, combined with VPI process,the reactor noise is low.
|
range |
ACLSG/OCLSG |
|---|---|
|
device short name |
Reactor for Drives |
|
product or component type |
Reactor |
|
network frequency |
50 Hz |
|
reactive power rating |
50 kvar for 690 V AC 50 Hz |
|
network rated voltage |
690 V AC 50 Hz |
|
tuning order |
4.2 - 210 Hz - 5.7 % - 50 Hz |
|
power losses (max) |
320 W |
|---|---|
|
value of inductance |
1.827 mH |
|
inductance tolerance |
- 5 % to 5 % per phase |
|
fundamental current rating |
41.8 A |
|
RMS current rating |
51 A |
|
electrical insulation class |
Class H |
|
[Ui] rated insulation voltage |
1.1 kV |
|
dielectric test voltage |
4 kV 50 Hz 1 minute |
|
[Imp] maximum permanent current |
1.3 x I1 |
|
harmonic current spectrum |
2.9 % x I3 |
|
dynamic withstand current |
2.2 x Isc |
|
[Ith] conventional free air thermal current |
2 A at 250 V AC 50 Hz |
|
type of installation |
Indoor installation |
|
type of cooling |
Forced convection |
|
connections - terminals |
Pad terminal |
|
fixing center |
200 x 125 mm |
|
height |
270 mm |
|
width |
260 mm |
|
depth |
200 mm |
|
net weight |
29.5 kg |
|
standards |
IEC 60068 |
|---|---|
|
IP degree of protection |
IP00 |
|
operating altitude |
<= 2000 m |
|
ambient air temperature for operation |
0…55 °C at <= 1000 m |
|
average ambient air temperature for operation |
50 °C at <= 1000 m (average over 24 hours) |
|
climatic withstand |
Relative humidity: 20...80 % |
Product Highlights
CKSG Low Voltage 3-phase Low Voltage Serial Reactor for Harmonic Filtering and Power Factor Correction AC230V,400V,690V General Three phase inductors designed to weaken harmonic amplification in highly polluted networks, and protect multiple installation components. Features Input AC Reactor is ...
