Mns Dmc Busbar Support Insulator Low Voltage 3 Phase 230v 400v 690v 1000v Terminal Block Accessories
Product Details
| Rated Voltage: | Up To 1000v | Ambient Temperature: | -40~90 Degree Celsius |
|---|---|---|---|
| Insulation Voltage: | 5000V | Install: | Screw Plate Mount |
| Highlight |
mns busbar support insulator,dmc 230v busbar support insulator,400v dmc busbar support |
||
Product Description
Busbar Support Insulator MNS Series DMC Material For Low Voltage 3-phase 230V,400V,690V,1000V Electrical Panel
Product Description

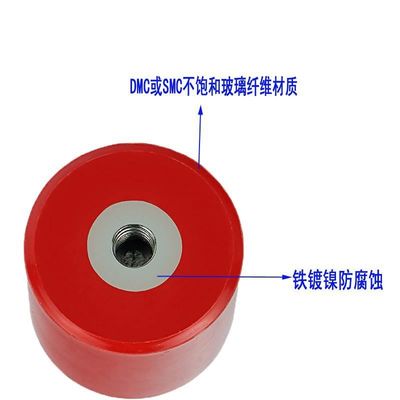

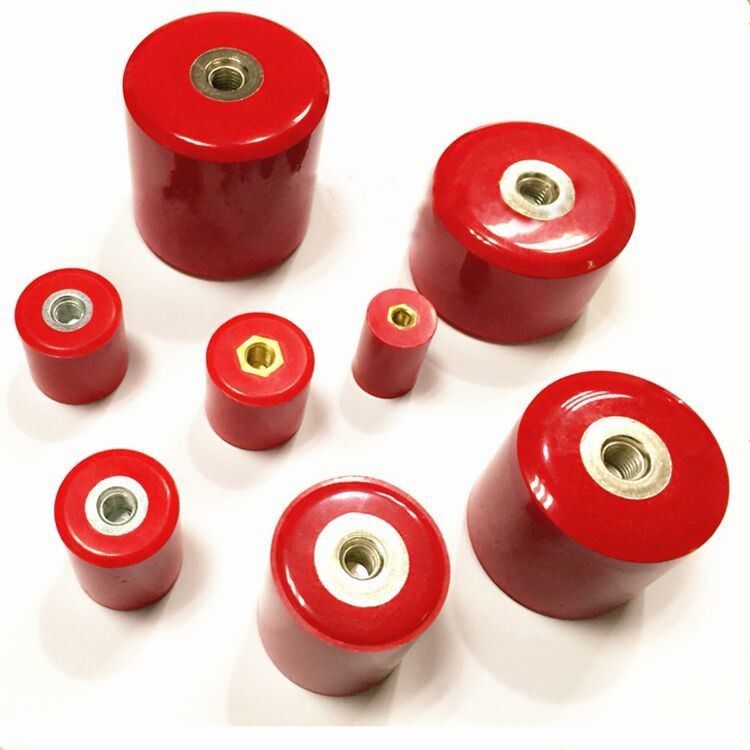

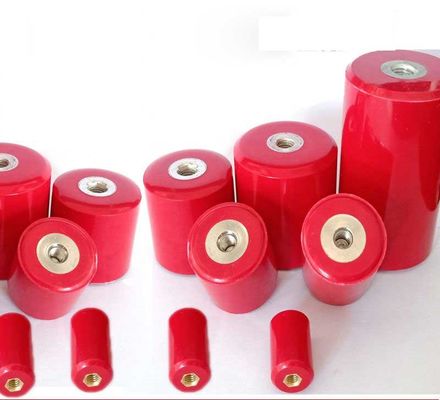

Insulator is the special part to fix,install and insulat on communication, electric power, lightning protection, machinery, medical, wind energy, frequency conversion equipment,new energy vehicles (integrated chassis cabinets, locker, etc.) to provide meet the fixed support, installation and insulation isolation effect of special parts, it is also known as insulators, insulation column .Its appearance is usually the cylinder,hexagonal,round.There is the insert on the two surface of insulator.
Operating temperature:-40--+140
Insert:Brass.steel with Zn coating
Material:BMC(bough moulding compound)
SMC(sheet moulding compound)
Color,insert,mateerial in capability accordance with customer need.
Specifications
1. Size: MNS20x30, up to MNS70x110
2. Material:DMC 3.Tensile strength:600LBS
Description
1) Made of bulk molding compound, unsaturated polymer with fiber glas
2) Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties
|
Product Name |
cylindrical insulator |
|
Model |
mns3040 |
|
Material |
DMC/BMC |
|
Type |
cylindrical type |
|
Weight |
/ |
|
Dimension |
30*40 |
|
Color |
Customized |
|
Sample |
Free |
|
Torgue Strength |
≥20 |
|
Rated Voltage |
660V |
|
Application |
low voltage and high voltage |
|
Certification |
CE,ROHS,UL for material |
|
Operating Temperature |
30℃~120℃ |
|
Place of Origin |
China |
Advantages:
The products have excellent insulation properties,high strenght,high temperature resistant,safe and reliable,tated voltage 660V is good choice for low voltage power distribution cabinet fixed bus.
Using SMC unsaturated resin hot pressing. Mainly used for high and low voltage power distribution cabinet,inverter,power distribution box,supporting the connecting bus etc.
The product has excellent insulation properties,high strength,high teperature resistant,safe and reliable,rated voltage up to 660V is the best choice for low voltage power distribution cabiner fixed bus.
