Male Female 16A 32A 63A Industrial Plug Socket 230-400V IP44 IP67 Terminal Block Accessories
Product Details
| Rated Voltage: | 130v, 250v, 415v, 500v | Ambient Temperature: | -25~75 Degree Celsius |
|---|---|---|---|
| Insulation Voltage: | 800V | Install: | Screw Plate Mount |
| Rated Current: | 16A, 32A, 63A, 125A | Poles: | 3(1P+N+E), 4(3P+E), 5(3P+N+E) |
| Highlight |
16a industrial plug socket ip67,230v industrial plug socket,ip44 32a industrial plug and socket |
||
Product Description

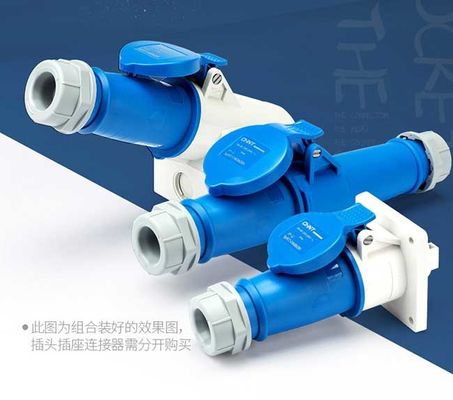

Chint Industrial Plug and Socket male female 3,4,5 pin 16A, 32A, 63A 230-400V IP44, IP67 Optional IEC60309-1
Industrial plugs and sockets
Reliable, durable and safe. Perfect for your application.
These products are used for connection of equipment in all kind of applications where it needs to be possible to connect and disconnect. ABB industrial plugs and sockets are chosen when safety, reliability and durability is requested.
Reliable contacts prevent stops and power breaks, which leads to increased productivity.
Durable equipment prevents time and cost lost due to maintenance.
Safe connections prevent accidents.
We have divided our range of industrial plugs and sockets into four groups:
Easy & Safe are high quality products for basic applications.
Tough & Safe are products for demanding applications and environments.
Critical & Safe are sockets with additional safety functions.
Fast & Safe are industrial plugs, connectors, inlets and socket outlets with screwless terminal connectors
industrial plugs are high quality products for reliable and safe use in various environments.
Main benefits
High quality for perfect performance
Ergonomic design
Self-cleaning and calibrated contacts
Clear terminal markings for easy installation
Approved according to IEC 60 309-1, -2
Main features
Plug Easy & Safe
High quality basic range
IP44 (splash-proof) protection degree
Range from 16 A to 32 A
Contact parts made of brass for reliable connection
The housing is made of standard PA plastic material
Cable entry is equipped with a compression gland
Plugs Tough & Safe
Designed for tough environments
IP44 (splash-proof) or IP67 (watertight) protection degree
Range from 16 A to 125 A
Robust enclosure made of PBT plastic material which withstands heavy-duty usage and chemicals
Perfect for application in food and beverage industry, heavy industry, ship containers, airports, train stations, construction sites, mines, …
Additional Information:
2P+E
Ambient Temperature:
-55 … 55 °C
Cable Cross-Section:
1 ... 2.5 mm²
Cable Diameter:
14 mm
Color:
Blue
Connection Type:
Screw Clamp
Cover Color:
Black
Degree of Protection:
IP44
Enclosure Material:
Plastic (PA)
Frequency (f):
50 Hz
60 HzHousing Material:
Plastic (PA)
Invoice Description:
Ind. P&S#216EP6B
Number of Poles:
3
Order Multiple:
10 piece
Product Main Type:
EP
Product Name:
Industrial Plug
Protection Type:
Splashproof
Rated Current (In):
16 A
Rated Voltage (Ur):
200 ... 250 V
Recommended Screw Driver:
PH2
Standards:
IEC 60309-1
IEC 60309-2Suitable for Product Class:
IEC Industrial Plugs and Sockets
Product Series | NTC1 etc. |
|---|---|
product type | Mobile plug |
Product short name | Industrial Plug |
Plug and socket type | Low Voltage Distribution |
Number of poles | 3P + N + E |
Network Type | AC |
Jack standard | Industry standard |
Plug and socket and control unit shape | Right angle |
|---|---|
Rated current [In] | 16 A |
Rated working voltage [Ue] | 380...415 V |
Network frequency | 50/60 Hz |
Contact clock position | 6 h |
Socket material | Housing: Flame retardant engineering polymer |
Contact material | Casing: brass |
Wiring ability | Quick connection |
Cable diameter | 1...2.5 mm2 |
Cable outer diameter | 8...15 mm |
Cable entry hole | Cable guide |
Thread type | Pg 21 |
product weight | 0.212 kg |
height | 142 mm |
width | 74 mm |
depth | 74 mm |
colour | Gray (RAL 7035) |
Voltage color | red |
Standards compliant | IEC 60309-2 |
|---|---|
IP protection level | IP44 complies with IEC 60529 |
IK protection level | IK08 in accordance with EN 62262 |
Refractory and resistant to abnormal high temperatures | 850 °C in accordance with IEC 60695-2-11 |
Relative humidity | 50 % on 40 °C |
Working elevation | 2000 m |
Ambient temperature | 35 °C (86400 s) |
Please contact us for more options
