IPRU Surge Protection Device Low Voltage Components SPD 230V/400V Imax 10 20 40 65kA

Large Image : IPRU Surge Protection Device Low Voltage Components SPD 230V/400V Imax 10 20 40 65kA

Product Details:

Place of Origin:	China
Brand Name:	Schneider Electric
Certification:	CE,CCC
Model Number:	iPRU

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	USD75~USD280
Packaging Details:	Standard export carton
Delivery Time:	5-8 working days or bulk order negotiate
Payment Terms:	T/T, Western Union
Supply Ability:	1,000pcs/month

Contact Now

Detailed Product Description

Max. Discharge Current:	10kA,20kA,40kA, 65kA	Max. Continuous Working Voltage:	350VAC
Nominal Discharge Current:	5kA, 10kA、20kA、35kA	Up:	2.5/2.2/2.1/1.9/1.7/1.45/1.2 KV
Pole:	1P/2P/3P/4P/1P+N/3P+N	Rated Working Voltage:	230/400VAC
Highlight:	ac contactor switch , home ac contactor

Schneider Electric iPRU Surge Protection Device SPD 1,2,3,4 Pole 230V/400V Home or Industrial Use Imax=10,20,40,65kA

Characteristic

IEC test category: Class II test (8/20us)
Meet the standard: GB 18802.1-2011
Maximum sustainable operating voltage Uc : 350 V
Maximum discharge current Imax : 120/100/80/65/40/20/10 kA
Nominal discharge current In : 60/50/40/35/20/10/5 kA
Voltage protection level Up: 2.5/2.2/2.1/1.9/1.7/1.45/1.2 kV
Number of steps: 1P/2P/3P/4P/1P+N/3P+N

Advantage

Complete flow capacity level to meet different location installation requirements
Uc (LN) reaches 350V, Uc (L-PE) reaches 440V, and the work after accessing the system is safe and reliable.
The full range of 1P/2P/3P/4P pole products provides phase-to-phase and neutral-to-ground common-mode protection. The full range of 1P+N/3P+N poles provides phase-to-neutral and phase-to-phase Full-mode protection from neutral to ground, suitable for grounding systems such as TT and TN
GB 18802.1-2011 conformity assessment, CQC comprehensive certification
The cooperation relationship between SPD and backup protection circuit breaker has been fully verified by Shanghai Lightning Protection Center.

Application

Suitable for incoming line protection, secondary protection and tertiary protection, can be used in TN-C, TN-S, TT systems

main information
Product Series	IPRU
product type	Pluggable surge protector
Product short name	IPRU 20r
Number of poles	3P + N
Output type	Remote indication signal
Surge protector application type	Power distribution network
Grounding system	TT TN-S

Additional information
Surge protector test category	(Type II)
Structure principle and action characteristics of surge protector	MOV
Rated working voltage [Ue]	230/400 V
Maximum continuous operating voltage [Uc]	Differential mode: 350 V (L - N ) Common mode: 260 V (N - PE) Common mode: 440 V (L - PE)
Maximum [Up] voltage protection level	Common mode <1.5 kV (N - PE) Common mode <1.5 kV (L - PE) Differential mode <1.45 kV (L - N )
Local signal indication	White/red mechanical indicator window
Installation type	Locking clip locking
Installation method	DIN rail mounting
Width (multiple of 9mm)	8
height	85 mm
width	72 mm
depth	64 mm
colour	White (RAL 9003)
Response time	<= 25 ns
Wiring ability	Wiring or lower wiring on tunnel terminals 2.5...35 mm2 single strand hard wire Wiring or lower wiring on the tunnel terminal 2.5...25 mm2 cord
Recommended cable	4 mm2 fire (L) 4 mm2 zero (N) 6 mm2 ground (PE)
Tightening torque	3.5 Nm

surroundings
standard	GB 18802.1:2011 IEC 61643-1
certified product	CQC MIIT
IP protection level	Front panel: IP40 Terminal: IP20
Operating temperature	-25...60 °C
Storage ambient temperature	-40...70 °C

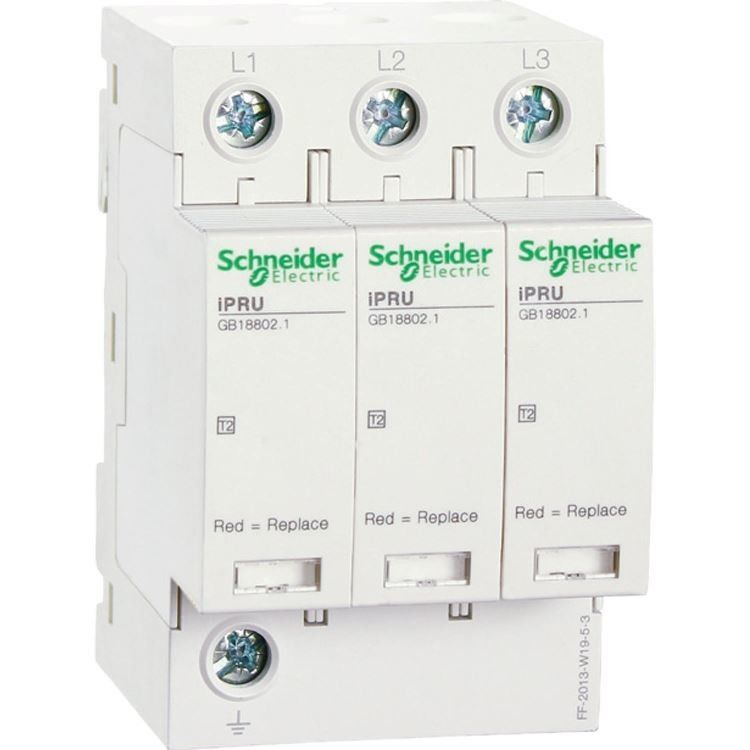

IPRU Surge Protection Device Low Voltage Components SPD 230V/400V Imax 10 20 40 65kA 0

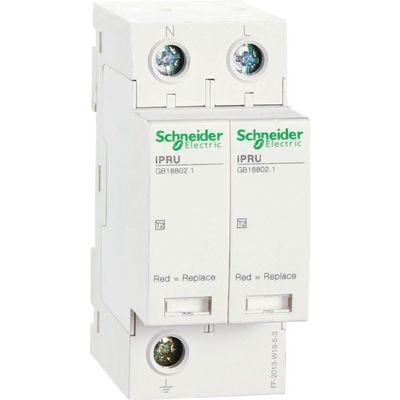

IPRU Surge Protection Device Low Voltage Components SPD 230V/400V Imax 10 20 40 65kA 1

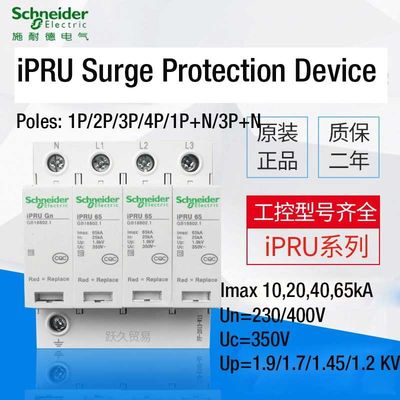

IPRU Surge Protection Device Low Voltage Components SPD 230V/400V Imax 10 20 40 65kA 2
