SPD 3 Phase Surge Protector , Domestic Surge Protection Devices 1 2 3 4 Pole 230V/400V Imax20 40 65kA

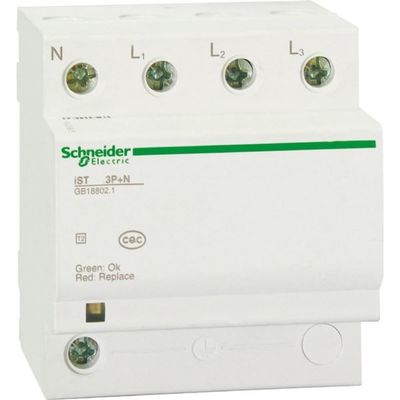

Large Image : SPD 3 Phase Surge Protector , Domestic Surge Protection Devices 1 2 3 4 Pole 230V/400V Imax20 40 65kA

Product Details:

Place of Origin:	China
Brand Name:	Schneider Electric
Certification:	CE,CCC
Model Number:	iSt fixed type

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	USD48~USD260
Packaging Details:	Standard export carton
Delivery Time:	5-8 working days or bulk order negotiate
Payment Terms:	T/T, Western Union
Supply Ability:	1,000pcs/month

Contact Now

Detailed Product Description

Max. Discharge Current:	20kA,40kA, 65kA	Max. Continuous Working Voltage:	340VAC
Nominal Discharge Current:	10kA、20kA、35kA	Up:	2.0/1.5/1.2 KV
Pole:	1P/2P/3P/4P/1P+N/3P+N	Rated Working Voltage:	230/400VAC
Highlight:	ac contactor switch , electrical control equipment

Schneider Electric iST Surge Protection Device SPD 1,2,3,4 Pole 230V/400V Home or Industrial Use Imax=20,40,65kA

Characteristic

* IEC test category: Class II test (8/20us)
* Compliance with standards: GB 18802.1
* Maximum sustainable operating voltage Uc: 340V
* Maximum discharge current Imax: 65/40/20kA
* Nominal discharge current In: 35/20/10kA
* Voltage protection level Up: 2.0/1.5/1.2kV
* Series: 1P/2P/3P/4P/1P+N/3P+N

Advantage

* The latest through the lightning protection product testing center of Shanghai Lightning Protection Center
GB 18802.1-2011 conformity assessment
* China Quality Certification Center CQC Mark Certification

Application

Suitable for secondary protection, tertiary protection, can be used for TN-C, TN-S, TT system

main information
Product Series	IST
product type	Surge protector
Product short name	IST 65r
Number of poles	3P + N
Output type	Remote indication signal
Surge protector application type	Power distribution network
Grounding system	TN-S TT

Additional information
Surge protector test category	(Type II)
Structure principle and action characteristics of surge protector	MOV
Rated working voltage [Ue]	230/400 V
Maximum continuous operating voltage [Uc]	Common mode: 260 V (N - PE) Common mode: 440 V (L - PE) Differential mode: 340 V (L - N )
Maximum [Up] voltage protection level	Common mode <1.5 kV (N - PE) Differential mode <2 kV (L - N ) Common mode <2.1 kV (L - PE)
Local signal indication	Green/red indicator
Installation type	Locking clip locking
Installation method	DIN rail mounting
Width (multiple of 9mm)	8
height	81 mm
width	72 mm
depth	64 mm
colour	White (RAL 9003)
Response time	<= 25 ns
Wiring ability	Wiring or lower wiring on tunnel terminals 2.5...35 mm2 single strand hard wire Wiring or lower wiring on the tunnel terminal 2.5...25 mm2 cord
Tightening torque	3.5 Nm

surroundings
standard	GB 18802.1:2011 IEC 61643-1
certified product	CQC
IP protection level	Front panel: IP40 Terminal: IP20
Operating temperature	-20...60 °C
Storage ambient temperature	-40...70 °C

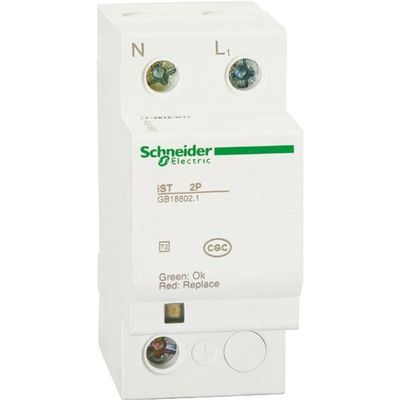

SPD 3 Phase Surge Protector , Domestic Surge Protection Devices 1 2 3 4 Pole 230V/400V Imax20 40 65kA 0

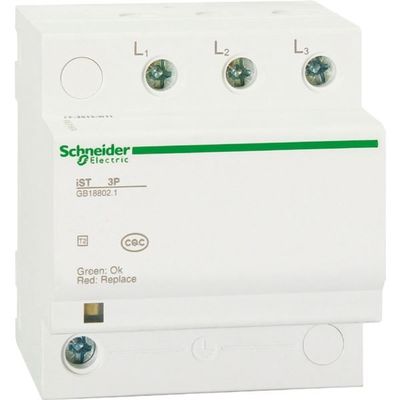

SPD 3 Phase Surge Protector , Domestic Surge Protection Devices 1 2 3 4 Pole 230V/400V Imax20 40 65kA 1

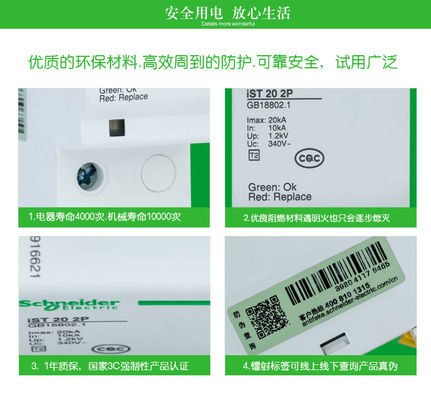

SPD 3 Phase Surge Protector , Domestic Surge Protection Devices 1 2 3 4 Pole 230V/400V Imax20 40 65kA 2
