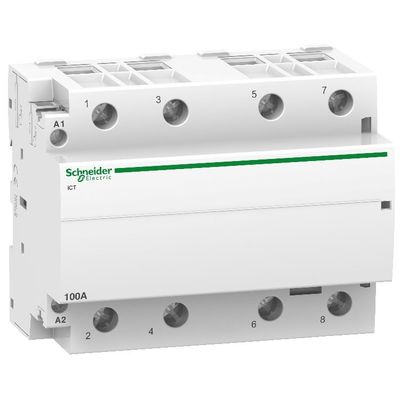

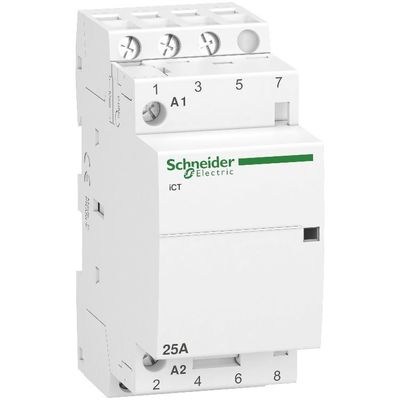

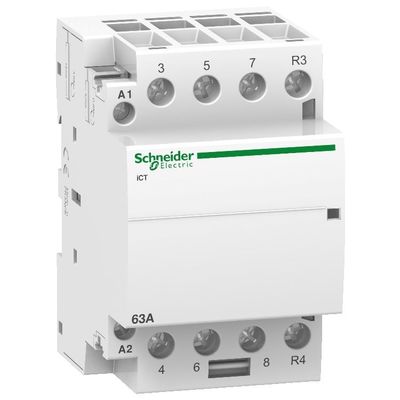

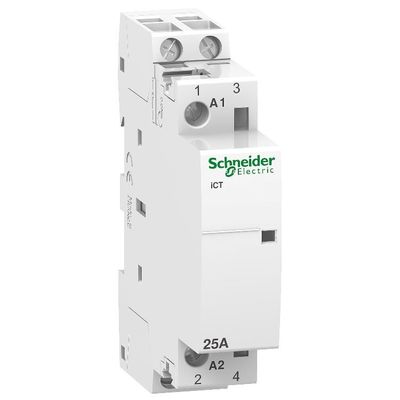

ICT Acti9 Modular Contactor Low Voltage Components 1-4 Pole 230V/400V 16 25 40 64 100A

ICT Acti9 Modular Contactor Low Voltage Components 1-4 Pole 230V/400V 16 25 40 64 100A

  • ICT Acti9 Modular Contactor Low Voltage Components 1-4 Pole 230V/400V 16 25 40 64 100A
  • ICT Acti9 Modular Contactor Low Voltage Components 1-4 Pole 230V/400V 16 25 40 64 100A
  • ICT Acti9 Modular Contactor Low Voltage Components 1-4 Pole 230V/400V 16 25 40 64 100A
  • ICT Acti9 Modular Contactor Low Voltage Components 1-4 Pole 230V/400V 16 25 40 64 100A
ICT Acti9 Modular Contactor Low Voltage Components 1-4 Pole 230V/400V 16 25 40 64 100A
Product Details:
Place of Origin: China
Brand Name: Schneider Electric
Certification: CE,CCC
Model Number: iCT Contactor
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD48~USD260
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 1,000pcs/month
Contact Now
Detailed Product Description
Max. Discharge Current: 20kA,40kA, 65kA Max. Continuous Working Voltage: 340VAC
Nominal Discharge Current: 10kA、20kA、35kA Up: 2.0/1.5/1.2 KV
Pole: 1P/2P/3P/4P/1P+N/3P+N Rated Working Voltage: 230/400VAC
High Light:

ac contactor switch

,

electrical control equipment

Schneider Electric iCT Acti9 Modular Contactor 1,2,3,4 Pole 230V/400V Home or Industrial Use 16,25,40,64,100A IEC61095

characteristic



  • Product standard IEC61095/GB17885

  • Product Certification CCC CE

  • Product poles 1,2,3,4

  • Rated current 16,25,40A,63A,100A

  • Main contact type NO, NC, NO+NC

  • Protection class IP20B (terminal), IP40 (installed in the distribution box)

  • Ambient temperature -5 ° C to +60 ° C (When the contactor is installed in a distribution box with an internal temperature range of 50 ° C to 60 ° C, there is a need to use a spacer between the contacts , its product number is A9A27062)

  • Storage ambient temperature -40°C~+70°C

  • Minimum noise

  • Indicate mechanical position

  • Compatible with all Acti 9 products and all types of lighting

  • Yellow card holder: The simple clamping system makes the accessory installation more flexible and convenient, while also increasing the strength of the device; it can be used for electrical and mechanical connection

  • The manually operated contactor has four position selector switches on its front face: automatic operation mode; temporary "on"; permanent "on": for locking the contactor in the "on" position during installation and maintenance;

  • Warranty period: 18 months



Advantage

Chuangqi wins and jumps to the top

  • Minimum noise

  • Indicate mechanical position

  • Compatible with all Acti 9 products and all types of lighting

  • Yellow card holder: The simple clamping system makes the accessory installation more flexible and convenient, while also increasing the strength of the device; it can be used for electrical and mechanical connection

application

The iCT contactors are available in contactors without manual operation and contactors with manual operation.

The iCT contactor can be used for remote control:

  • Lighting, heating, ventilation, roller blinds, public hot water

  • Mechanical ventilation system, etc.

  • Non-priority (sequential) circuit for load shedding

main information

Range of product

Acti 9

product name

Acti 9 iCT

product type

Contactor

Product short name

ICT

Applications

Motor heating and lighting

Poles

2P

Rated operating current [Ie]

25 A AC-7A
8.5 A AC-7B

Loop contact type

2 NO

Network Type

AC

Control type

remote control

Control loop voltage

230...240 V AC 50 Hz

Additional information

Network frequency

50 Hz

Rated working voltage [Ue]

250 V AC 50 Hz

Maximum power

1.2 W on 250 V AC

Rated insulation voltage [Ui]

500 V AC 50 Hz

Rated impulse withstand voltage [Uimp]

4 kV

Control signal type

Self-holding

operating frequency

Number of switching operations / per day

Local signal indication

Trip indicator window

Pulling power (VA)

2.7 VA

(~50Hz pull-in) power consumption (VA)

9.2 VA

Installation type

Locking clip locking

Installation method

35 mm DIN rail

Width (multiple of 9mm)

2

height

81 mm

width

18 mm

depth

68.5 mm

colour

white

Mechanical life

1000000 times

Electrical life

100000 times IEC/EN 61095 25 A 50 Hz AC-7A
30000 times IEC/EN 61095 8.5 A 50 Hz AC-7B
30000 times IEC/EN 61095 50 Hz AC-7C
100000 EN/IEC 60947-4-1 50 Hz AC-1
30000 times EN/IEC 60947-4-1 50 Hz AC-3
30000 times EN/IEC 60947-4-1 50 Hz AC-5A
30000 times EN/IEC 60947-4-1 50 Hz AC-5B

Wiring ability

Control circuit: tunnel terminal 2 cable 1.5 mm2 single strand hard wire
Power circuit: tunnel terminal 1 cable 1...4 mm2 cord
Power circuit: tunnel terminal 1 cable 1.5...6 mm2 single strand hard wire
Control circuit: tunnel terminal 1 cable 1.5...2.5 mm2 single strand hard wire
Control circuit: tunnel terminal 2 cable 1.5...2.5 mm2 cord

Tightening torque

Control loop: 0.8 Nm
Power circuit: 0.8 Nm

The scope of products

IACTs
IACTp
Compatible with iCT contactor accessories with Ti24 connection
IATEt
IACTc

model

ICT

market share

Residential
Small business

surroundings

Standards compliant

IEC/EN 61095

Noise level

30 dB

Heat dissipation

0.9 W on 50/60 Hz

IP protection level

IP20 complies with IEC 60529
IP40 (modular housing) in accordance with IEC 60529

Pollution level

2

Moisture resistance

2 in accordance with IEC 60068-1
2

Relative humidity

95 % on 55 °C

Working elevation

2000 m

Operating temperature

-5...60 °C

Storage ambient temperature

-40...70 °C
