12V 24V 36V Analog Timer Relay , Power On Power Off Delay Electricity 380v 220v 0.5s~24h
Product Details
| Product Name: | Plug-in DIN Rail Panel Mount Time Relay | Type: | Time Delay Relay |
|---|---|---|---|
| Control Volt: | DC12, DC24, AC36, AC110, 230, 380V | Acceossories: | Available |
| Highlight |
industrial control transformer,automation electrical controls |
||
Product Description

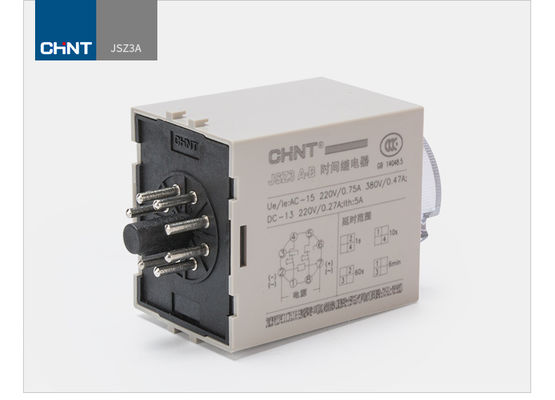

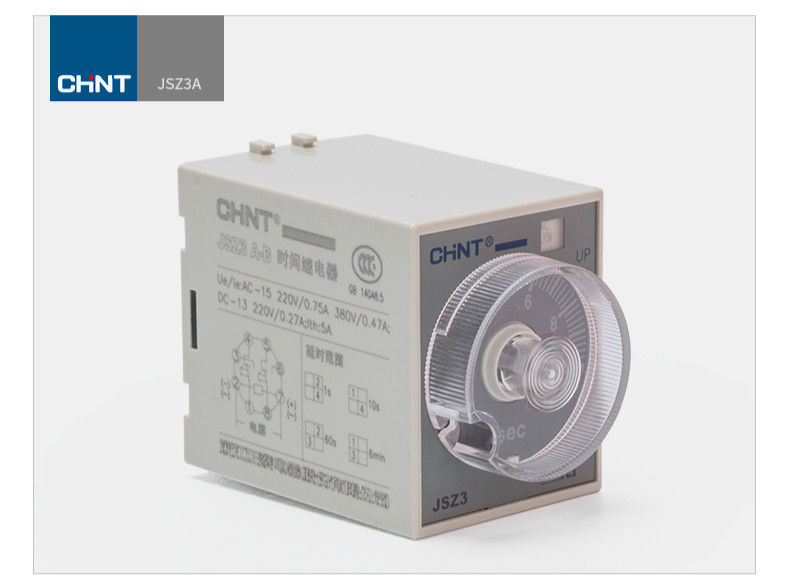

CHINT JSZ3 12v 24v 36v Analog Timing Relay Electricity 380v 220v Power-on Power-off Delay setting range 0.5s~24h
DESCRIPTION
-
Brand Name: CHNT
-
Theory: Time Relay
-
Protect Feature: Sealed
-
Contact Load: Low Power
-
Model Number: JSZ3
-
Usage: Protective
-
is_customized: Yes
-
Voltage: 12V
-
Power Source: AC
-
Conventional heating current: 5A
-
Ambient temperature: -5℃~+40℃
-
Insulation voltage: AC380V
-
Delay accuracy: ≤10%
|
SPECIFICATION |
|
|---|---|
|
AC-15 Ue V |
380(AC) 240(AC) 120(AC) |
|
Ie A |
0.95 1.5 3 |
|
DC-13 Ue V |
250(DC) 125(DC) |
|
Ie A |
0.27 0.55 |
|
Rated current (A) |
5 |
|
Repeat error |
≤5% |
|
Mechnical life time |
≥1×106 |
|
Electrical life time |
≥1×105 |
|
Comsuption (W) |
≤3 |
|
Rated voltage (V) |
12～380(AC) |
|
12～220(DC) |
|
|
Delay time |
JSZ3A-A:0.5s/5s/30s/3min |
|
JSZ3A-B:1s/10s/60s/6min |
|
|
JSZ3A-C:5s/50s/5min/30min |
|
|
JSZ3A-D:10s/100s/10min/60min |
|
|
JSZ3A-E:60s/10min/60min/6h |
|
|
JSZ3A-F:2min/20min/2h/12h |
|
|
JSZ3A-G:4min/40min/4h/24h |
|
|
JSZ3C-A:0.5s/5s/30s/3min |
|
|
JSZ3C-B:1s/10s/60s/6min |
|
|
JSZ3C-C:5s/50s/5min/30min |
|
|
JSZ3C-D:10s/100s/10min/60min |
|
|
JSZ3C-E:60s/10min/60min/6h |
|
|
JSZ3C-F:2min/20min/2h/12h |
|
|
JSZ3C-G:4min/40min/4h/24h |
|
|
JSZ3F:0.1s～1s,0.2s～2s,0.3s～3s,0.5s～5s,0.5s～6s,1s～10s,2s～20s,2.5s～30s,5s～60s,10s～100s,10s～120s,10s～180s,0.4min～4min,0.5min～5min,0.5min～6min,1min～10min,2min～20min,2.5min～30min |
|
|
JSZ3K:0.1s～1s,0.2s～2s,0.3s～3s,0.5s～5s,0.5s～6s,1s～10s,2s～20s,2.5s～30s,5s～60s,10s～100s,10s～120s,10s～180s,0.4min～4min,0.5min～5min,0.5min～6min,1min～10min,2min～20min,2.5min～30min,5min～60min |
|
|
JSZ3Y:0.1s～1s,0.2s～2s,0.3s～3s,0.5s～5s,1s～10s,2.5s～30s,5s～60s,10s～120s,10s～180s,0.5min～5min,1min～10min |
|
|
JSZ3R:0.5s-6s/60s,1s-10s/10min,2.5s-30s/30min,1s-10s/100s,2.5s-30s/5min,60s-10min/100min |
|
|
JSZ3-1,JSZ3-2,JSZ3-3:0.1s-1s,0.2s-2s,0.3s-3s,0.5s-5s,1s-10s,2．5s-30s,5s-60s,10s-120s,10s-180s, |
|
