Flush Head Push Button Switch Illuminated , Push Button Light Switch Optional Color 12V 24V 110V 230V

Flush Head Push Button Switch Illuminated , Push Button Light Switch Optional Color 12V 24V 110V 230V

Flush Head Push Button Switch Illuminated , Push Button Light Switch Optional Color 12V 24V 110V 230V
video
Flush Head Push Button Switch Illuminated , Push Button Light Switch Optional Color 12V 24V 110V 230V
Product Details:
Place of Origin: China
Brand Name: Chint
Certification: CE,CCC etc.
Model Number: NP2B, BP2W, etc.
Payment & Shipping Terms:
Minimum Order Quantity: 12pcs
Price: USD1~USD3/unit
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
Product Name: NP2 Push Buttons Type: Pilot Device
Control Volt: 380VAC, 220VDC Mechanical Life: 10 Million Cycles
Electrical Life: 300 Thousand Cycles Environment Temperature: -15~60 Degree Celsius
Contact: 1 NO / 1 NC Etc.
High Light:

home ac contactor

,

electrical control equipment

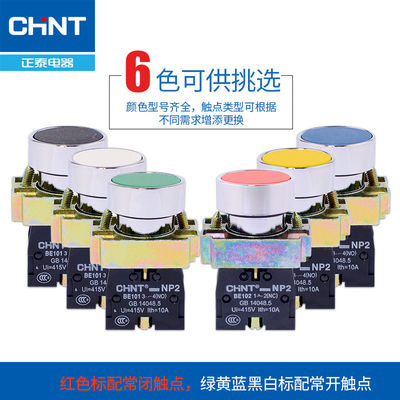

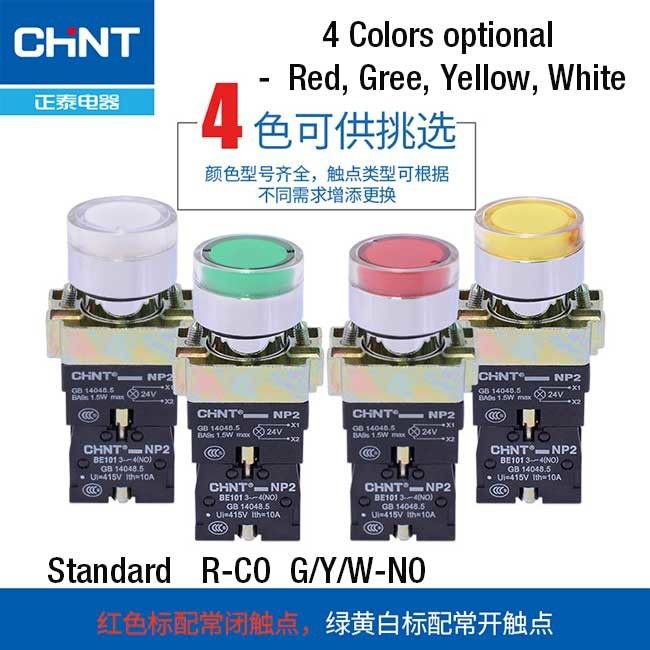

CHINT NP2 Series Push Button Switch Illuminated, flush head Red,Green,Yellow,White 12v,24v,110v,230v 1NO1NC AC380VDC220V



characteristic

  • Compliance with IEC, CCC certification standards

  • IP65, or IP66 (with protective cover)

  • Operating temperature -25°C to +70°C

  • Screw fastening method

  • Complete product range

  • Modular product design for custom installation and use

  • Warranty period: 18 months

Advantage

Simple and refined

  • Rugged and durable metal series for easy operation and quick and easy installation

application

  • Industry: Machine Manufacturing, Control System Panel Manufacturing, etc.

  • Downstream applications: transmission and distribution panels, utilities, buildings, airports, etc.

Flush Head Push Button Switch Illuminated , Push Button Light Switch Optional Color 12V 24V 110V 230V 0


Working & mounting conditions
Electric ratings: AC50/60Hz, AC380V/DC220V;
Degree of protection: IP40
Standard: IEC/EN60947-5-1
2.1 Ambient temperature is -5℃~+40℃, the average temperature during 24 hours couldn't exceed +35℃.
2.2 Altitude: ≤2000m.
2.3 Atmosphere condition: Relative humidity of the atmosphere couldn't exceed 50% when the highest temperature is +40℃; much higher relative humidity is allowable under the condition of lower temperature, for example, when the temperature reaches +20℃, the relative humidity is up to 90%. As for dews, which contingently appear due to change of temperature, special steps should be taken.
2.4 Pollution degree: 3
2.5 Overvoltage category: Ⅱ


main information

Product Series

NP2B

product type

Button

Product short name

NP2BA

Mounting diameter

22 mm

Separate sales quantity per piece

1



Additional information

Signal unit head shape

Round

Head type

Self reset

Joystick shape

Red flat head

Contact type

1NC/1NO

Conventional heating current [Ith]

10 A in accordance with EN/IEC 60947-5-1

Rated insulation voltage [Ui]

600 V (pollution level 3) in accordance with EN/IEC 60947-1



surroundings

Protection process

TC

Storage ambient temperature

-40...70 °C

Operating temperature

-25...55 °C



main information

Product Series

NP2B

product type

Illuminated button

Product short name

NP2BW

Border material

plastic

Mounting diameter

22 mm



Additional information

Separate sales quantity per piece

1

Protection process

TC

Operating position

any position

Mounting pitch

>= 30 x 40 mm (panel) - thickness: 1...5 mm

Fixed mode

Recommended torque for fixing nut: 2.2 Nm (Us +/- 10 %)

Signal unit head shape

Round

Joystick shape

Red flat head

Contact type

1 NO

Contact action

Slow break

Mechanical life

1500000 times

Wiring ability

Bolt fastening, clamping force: <= 1 x 2.5 mm2
Bolt fastening, clamping force: <= 2 x 1.5 mm2
Bolt fastening, clamping force: >= 1 x 0.5 mm2
Quick-connect terminal block, connection type: 6.3 mm

Tightening torque

0.8 Nm

Short circuit protection

10 A gL fuses in accordance with IEC 60269-1

Conventional heating current [Ith]

10 A

Rated insulation voltage [Ui]

600 V in accordance with IEC 60947-4-1

Rated impulse withstand voltage [Uimp]

6 kV in accordance with IEC 60947-1

Rated operating current [Ie]

3 A on 240 V, AC-15, A600
0.27 A on 250 V, DC-13, Q600

Electrical life

500000 times, AC-15, 3 A on 230 V, working rating <60 times/min, load factor: 0.5 in line with IEC 60947-5-4
500000 times, DC-13, 0.2 A on 110 V, working rating <60 times/min, load factor: 0.5 in line with IEC 60947-5-4

signal type

Constant

Light source

LED bulb

Lamp holder

BA 9s

Rated power supply voltage [Us]

220 V AC 50/60 Hz

Power supply voltage range

176...242 V communication

Current consumption

< 20 mA

Service life

10,000 hours



surroundings

Storage ambient temperature

-40...70 °C

Operating temperature

-25...55 °C

Overvoltage type

Class I complies with IEC 536

IP protection level

IP65 in accordance with IEC 60529

IK protection level

IK03 complies with IEC 60529

Standards compliant

GB 14048.5
IEC 60947-5-1
GB 14048.1
IEC 60947-1

certified product

CCC

Vibration resistant

10 gn (f= 40...500 Hz) in accordance with IEC 60068-2-6

Impact resistance

70 gn (duration = 11 ms) for half sinusoidal impact in accordance with IEC 60068-2-27

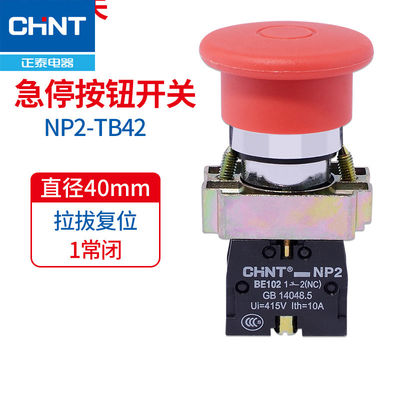

Flush Head Push Button Switch Illuminated , Push Button Light Switch Optional Color 12V 24V 110V 230V 1

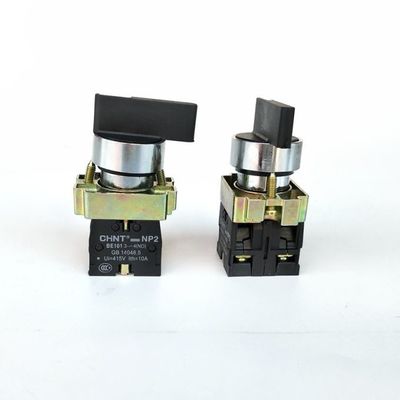

Flush Head Push Button Switch Illuminated , Push Button Light Switch Optional Color 12V 24V 110V 230V 2
Flush Head Push Button Switch Illuminated , Push Button Light Switch Optional Color 12V 24V 110V 230V 3
・
