Impulse Latching Relay Industrial Electrical Controls 1 Phase 16A 250V AC-28V DC
Product Details
| Product Name: | Impulse Relay | Type: | Switch Relay |
|---|---|---|---|
| Function: | Changeover Of Contact Status | Coil Volt: | DC12V/24V, AC120V/130V |
| Operating Voltage: | Max. 250VAC/28VDC | Contact Capacity: | 16A/32A |
| Highlight |
ac contactor switch,home ac contactor |
||
Product Description

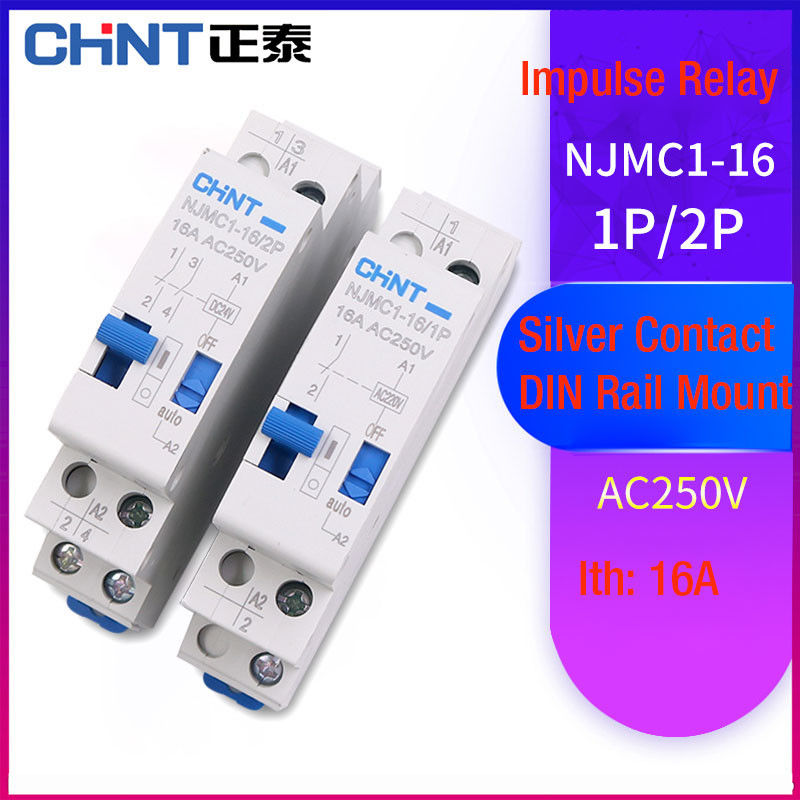

CHINT NJMC1 Impulse Latching Relay 1-Phase 16A 250VAC-28VDC Changeover of Contact Status Coil Volt 12V24V120V230V
Latching relays are electromagnetically operated devices. It is used to realise a simple, energy saving and efficient lighting control system.
These devices are mainly used in private houses, factory premises and commercial and public buildings as well as in industrial plants. As a rule, latching relays controlled by means of impulse buttons are installed where it is necessary for lighting to be operated from at least three different places.
Each time a command is initiated (by means of an impulse button), an electrical pulse is applied to the coil of the latching relay. The coil in the device is briefly energised and activated. That short pulse to the coil leads to the mechanical latch of the internal main contacts. The internal switching mechanism enables us to achieve a safe and reliable interlock (in the same way as a ballpoint pen). Each pulse that is sent to the magnetic coil system switches the device to its previous position where it is held mechanically until the next control pulse is received.
The devices are designed for rated currents 16 and 32A. Through the combinable accessories the main modules can be used in nearly all market applications.
Contact switching current of up to 16A and 32A; a complete range of AC/DC specifications; NJMC1 pulse relay is a mechanical bistable relay that changes the contact state by inputting pulse signals.

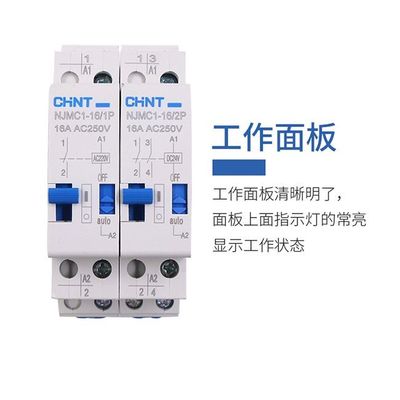

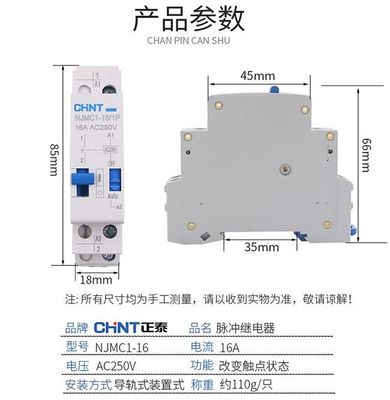

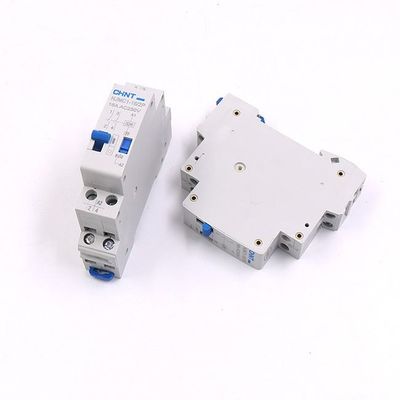

Dimensions
-
- Product Net Width:
- 18 mm
-
- Product Net Height:
- 85 mm
-
- Product Net Length:
- 62 mm
-
- Product Net Depth / Length:
- 62 mm
-
- Product Net Weight:
- 114 g
Container Information
-
- Package Level 1 Units:
- 10 piece
-
- Package Level 1 Width:
- 96 mm
-
- Package Level 1 Height:
- 82 mm
-
- Package Level 1 Depth / Length:
- 185 mm
-
- Package Level 1 Gross Weight:
- 1216 g
-
- Package Level 1 EAN:
- 7612270939619
Environmental
-
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Additional Information
-
- Connecting Capacity:
- Solid 1 x 1 ... 10 mm²
Flexible 2 x 2.5 mm²
Flexible with Cable End 1 x 0.75 ... 6 mm²
Flexible with Cable Lug 1 x 0.75 ... 6 mm²
-
- Current Rating, Main Switch:
- 32 A
-
- Function:
- Electronic for centralized control
-
- Mounting Type:
- DIN rail
-
- Number of Auxiliary Contacts NO:
- 1
-
- Number of Main Contacts NO:
- 1
-
- Options Provided:
- 1NO
-
- Product Main Type:
- E290
-
- Product Name:
- Electromechanical latching relay
-
- Rated Control Supply Voltage (Us):
- 8 V AC
-
- Rated Current (In):
- 32 A
-
- Rated Frequency (f):
- 50 Hz
-
- Rated Insulation Voltage (Ui):
- 8 V AC
-
- Rated Operational Voltage:
- 250 V AC
-
- RoHS Date:
- 20170426
-
- Supply Voltage:
- 250...250 V
Product Highlights
CHINT NJMC1 Impulse Latching Relay 1-Phase 16A 250VAC-28VDC Changeover of Contact Status Coil Volt 12V24V120V230V Latching relays are electromagnetically operated devices. It is used to realise a simple, energy saving and efficient lighting control system. These devices are mainly used in private ...
