304 Stainless Steel Weatherproof Distribution Box Wall Mounted Floor Standing Metal Junction Box
Product Details
| Material: | SS304, Painted Steel Sheet | Color: | Grey White/Transparent Cover |
|---|---|---|---|
| Application: | Power Distributing | Type: | Distribution Box Electrical Boxes |
| Installation Type: | Surface Type/ Flush Type | Standard: | IEC60439-3 |
| Rated Voltage: | 220V-380V,220/110V | Rated Current: | 32,63A,100A |
| Frequency: | 50 HZ/60HZ | External Size: | 230*381*110mm |
| Way: | 5,8,12,15,18,24 | Working Temperature: | -40 To +80 Degrees Centigrade |
| Highlight |
ac power distribution box,weatherproof distribution board |
||
Product Description

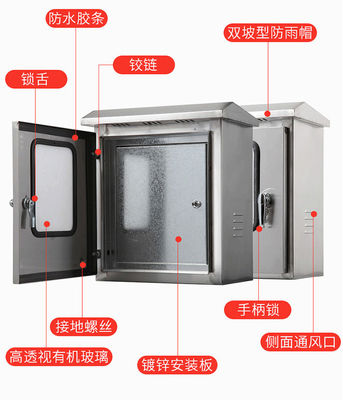

304 Stainless steel IP65 Waterproof Enclosure Dustproof Electrical wall mounted or floor standing metal junction box
Sheet metal custom outdoor waterproof electrical SS304 power control box
1. Body materials: stainless steel 304,
Thickness: 1.20mm

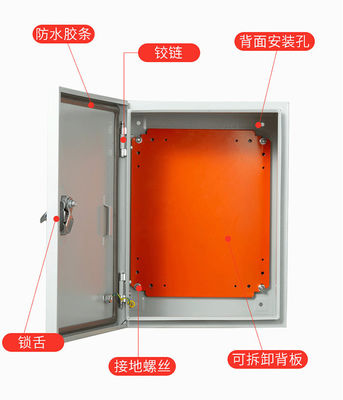

Back mounting plate material :aluminize zinc sheet,
Thickness: 1.20mm

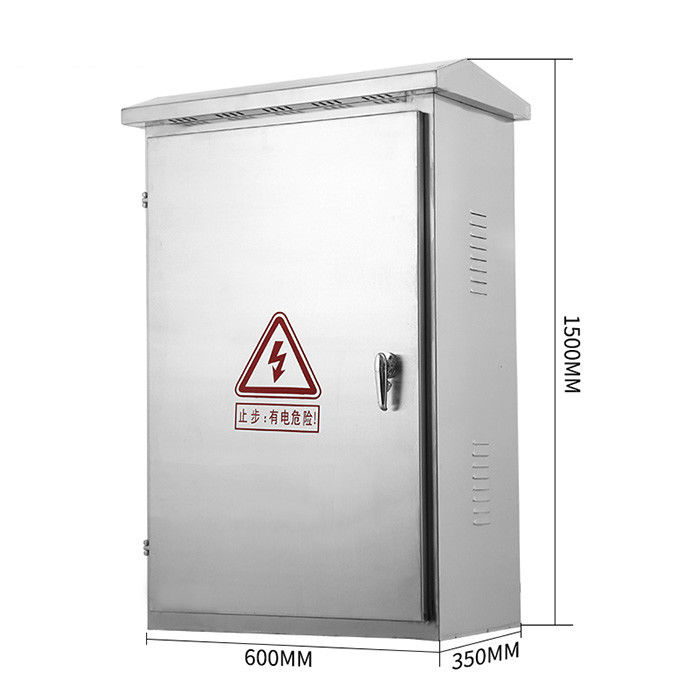

2. Dimension: 400mm x 300mm x 200mm, up to 1800mm height (many dimension available/ customisable)
3. Surface treatment: polishing, brushing & satin
4. IP65 waterproof door seal
5. Stainless steel lock, key and hinge
electrical box/ electrical metal enclosure/switch panel boxes
Surface finish:
Enclosure and door: Satined
Protection:
Protection degree:IP65
Impact resistaance:IK10
Supply includes:
Enclosure and door, Mounting Plate, Lock system, Gland plate sealing gasket, and fixing accessories,
Outdoor with plexiglass
|
Product specifics |
|
|
Brand |
Fenigal |
|
Model |
Customizable Size |
|
Material |
Stainless Steel |
|
Place Of Origin |
China Mainland |
|
Province |
Shanghai |
|
City |
Shanghai |
|
Color Classification |
250*150*300mm300*180*400mm300*200*400mm300*250*400mm 400*180*500mm400*200*500mm400*250*500mm400*300*500mm 400*200*600mm500*180*600mm500*200*600mm500*250*600mm 500*300*600mm500*200*700mm600*200*800mm600*250*800mm 600*300*900mm600*350*1000mm600*350*1200mm 700*350*1200700*370*1500700*370*1700mm 800*400*1800 500*250*700 |
|
Suitable |
Outdoor |
|
MODE |
DIMENSION |
MODE |
DIMENSION |
||||
|
H(MM) |
W(MM) |
D(MM) |
H(MM) |
W(MM) |
D(MM) |
||
|
BS-A 2020/15 |
200 |
200 |
150 |
BS-A 6060/30 |
600 |
600 |
300 |
|
BS-A 2520/15 |
250 |
200 |
150 |
BS-A 7050/15 |
700 |
500 |
150 |
|
BS-A 3020/15 |
300 |
250 |
150 |
BS-A 7050/20 |
700 |
500 |
200 |
|
BS-A 3025/20 |
300 |
250 |
200 |
BS-A 7060/20 |
700 |
600 |
200 |
|
BS-A 3030/15 |
300 |
300 |
150 |
BS-A 7060/25 |
700 |
600 |
250 |
|
BS-A 3030/20 |
300 |
300 |
200 |
BS-A 7060/30 |
700 |
600 |
300 |
|
BS-A 3030/25 |
300 |
300 |
250 |
BS-A 8060/20 |
800 |
600 |
200 |
|
BS-A 4030/15 |
400 |
300 |
150 |
BS-A 8060/25 |
800 |
600 |
250 |
|
BS-A 4030/20 |
400 |
300 |
200 |
BS-A 8060/30 |
800 |
600 |
300 |
|
BS-A 4030/25 |
400 |
300 |
250 |
BS-A 8080/20 |
800 |
800 |
200 |
|
BS-A 4030/30 |
400 |
300 |
300 |
BS-A 8080/25 |
800 |
800 |
250 |
|
BS-A 4040/15 |
400 |
400 |
150 |
BS-A 8080/30 |
800 |
800 |
300 |
|
BS-A 4040/20 |
400 |
400 |
200 |
BS-A 10060/20 |
1000 |
600 |
200 |
|
BS-A 4040/25 |
400 |
400 |
250 |
BS-A 10060/25 |
1000 |
600 |
250 |
|
BS-A 4040/30 |
400 |
400 |
300 |
BS-A 10060/30 |
1000 |
600 |
300 |
|
BS-A 5030/15 |
500 |
300 |
150 |
BS-A 10070/20 |
1000 |
700 |
200 |
|
BS-A 5030/20 |
500 |
300 |
200 |
BS-A 10080/20 |
1000 |
800 |
200 |
|
BS-A 5030/25 |
500 |
300 |
250 |
BS-A 10080/25 |
1000 |
800 |
250 |
|
BS-A 5040/15 |
500 |
400 |
150 |
BS-A 10080/30 |
1000 |
800 |
300 |
|
BS-A 5040/20 |
500 |
400 |
200 |
BS-A 10080/40 |
1000 |
800 |
400 |
|
BS-A 5040/25 |
500 |
400 |
250 |
BS-A 100100/25 |
1000 |
1000 |
250 |
|
BS-A 5040/30 |
500 |
400 |
300 |
BS-A 100100/30 |
1000 |
1000 |
300 |
|
BS-A 5050/20 |
500 |
500 |
200 |
BS-A 12060/20 |
1000 |
600 |
200 |
|
BS-A 5050/25 |
500 |
500 |
250 |
BS-A 12060/25 |
1000 |
600 |
250 |
|
BS-A 5050/30 |
500 |
500 |
300 |
BS-A 12070/25 |
1000 |
700 |
250 |
|
BS-A 6040/15 |
600 |
400 |
150 |
BS-A 12080/20 |
1000 |
800 |
200 |
|
BS-A 6040/20 |
600 |
400 |
200 |
BS-A 12080/25 |
1000 |
800 |
250 |
|
BS-A 6040/25 |
600 |
400 |
250 |
BS-A 12080/30 |
1000 |
800 |
300 |
|
BS-A 6040/30 |
600 |
400 |
300 |
BS-A 12080/40 |
1000 |
800 |
400 |
|
BS-A 6050/15 |
600 |
500 |
150 |
BS-A 120100/25 |
1200 |
1000 |
250 |
|
BS-A 6050/20 |
600 |
500 |
200 |
BS-A 120100/30 |
1200 |
1000 |
300 |
|
BS-A 6050/25 |
600 |
500 |
250 |
BS-A 120100/40 |
1000 |
1000 |
400 |
|
BS-A 6050/30 |
600 |
500 |
300 |
BS-A 14060/40 |
1400 |
600 |
400 |
|
BS-A 6060/15 |
600 |
600 |
150 |
BS-A 14080/40 |
1400 |
800 |
400 |
|
BS-A 6060/20 |
600 |
600 |
200 |
BS-A 140100/40 |
1400 |
1000 |
400 |
|
BS-A 6060/25 |
600 |
600 |
250 |
BS-A 140100/40 |
1400 |
1000 |
400 |
|
More dimension information, please contact with us. |
|||||||
