| Place of Origin: | China |
| Brand Name: | OEM/Fenigal |
| Certification: | CE,CCC etc. |
| Model Number: | RT8-2T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | USD7~USD8/unit |
| Packaging Details: | Standard export carton |
| Delivery Time: | 5-8 working days or bulk order negotiate |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000pcs/month |
| Product Name: | DIN Rail Mount Time Relay | Type: | Time Delay Relay |
|---|---|---|---|
| Control Volt: | DC/AC24, AC230V | Acceossories: | Available |
| High Light: | surge protection device,automation electrical controls |
||

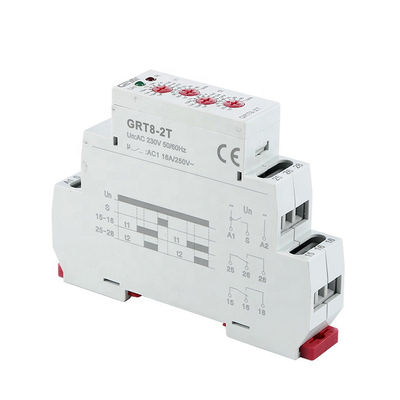

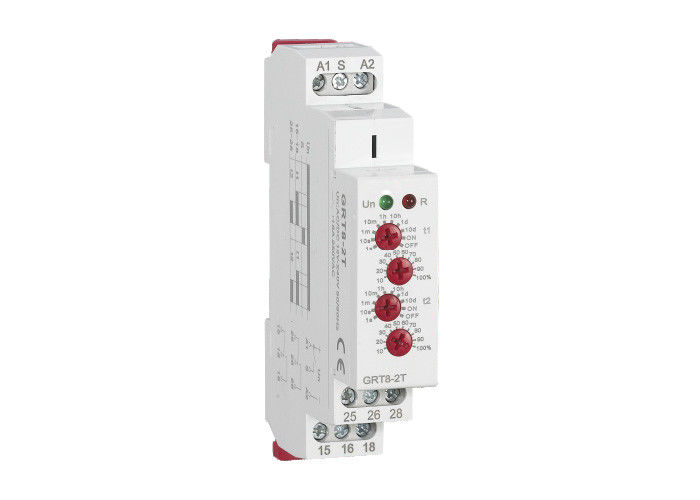

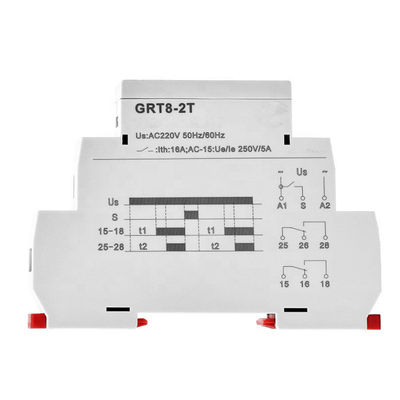

RT8-2T Double Delay Time Relay AC230V 2 Delay on Electronic Relay 12-240V Din rail Four Knobs
General
Applications
-For gradual switching of heavy powers (e.g. el.heating), prevents current
strokes in the main.
Function Features
- 2x Delay ON (2 time relays in one)
-Time scale 0.1s - 10 days divided into 10 time ranges:
0.1s - 1s / 1s - 10s / 0.1min - 1min / 1min - 10min / 0.1h - 1h / 1h - 10hrs
/ 0.1 day - 1 day / 1 day - 10 days / ON / OFF.
-Times t1 and t2 are independantly adjustable.
- t1 and t2 are switched on after supply voltage connection
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
| Model NO | GRT8-2T |
| Function | 2 Delay ON Time Relay |
| Voltage Range | AC230V (A230) OR AC/DC12V-240V (W240) |
| Output | 2 SPDT |
| Supply Terminals | A1-A2 |
| Time Range | 0.1s-10days,ON,OFF |
| Time Setting | Potentionmeter |
| Supply Indication | Green LED |
| Output Indication | Red LED |
| Rated Frequency | 50/60HZ |
| Rated Current | 16A |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | IEC6947-5-1 EN61812-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
