RT8-D Time Delay Off Relay

RT8-D Time Delay Off Relay

  • RT8-D Time Delay Off Relay
  • RT8-D Time Delay Off Relay
  • RT8-D Time Delay Off Relay
RT8-D Time Delay Off Relay
Product Details:
Place of Origin: China
Brand Name: OEM/Fenigal
Certification: CE,CCC etc.
Model Number: RT8-D
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: USD7~USD8/unit
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs/month
Contact Now
Detailed Product Description
Product Name: DIN Rail Mount Time Relay Type: Time Delay Relay
Control Volt: DC/AC24, AC230V Acceossories: Available
High Light:

industrial control transformer


automation electrical controls

RT8-D AC/DC 12-240V 16A Time Delay off Relay for Emergency Stuff Timer Control




-Back-up source for Delay OFF in case of voltage failure (emergency lighting,
emergency respirator,or protection of el. controlled doors - in case of fi re).


Function Features
-Time range (adjustable by rotary switch and fi ne setting by potentiometer):
0.1 s - 10 min.

-Voltage range: AC/DC12-240V , clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.


Technical Data

Model NO GRT8-D
Function Delay off without Supply Power
Voltage Range AC/DC24V-240V
Output 1 SPDT
Supply Terminals A1-A2
Supply Voltage Tolerance -15% +10%
Time Setting Potentionmeter
Supply Indication Green LED
Output Indication Red LED
Rated Frequency 50/60HZ
Rated Current 16A/AC1
Protection Degree IP40 for front Panel / IP20 for Terminals
Weight/pcs 0.1KG/PCS
Standard EN 61812-1,IEC60947-5-1
Certifications CE CB CCC TUV
Warranty/guarantee 18months

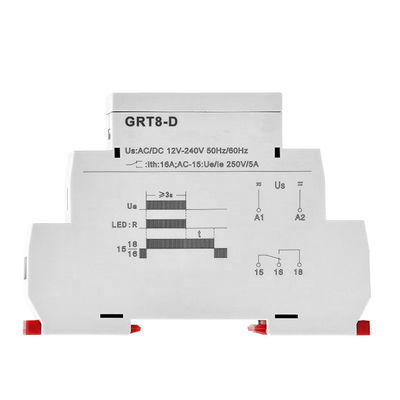

RT8-D Time Delay Off Relay 0

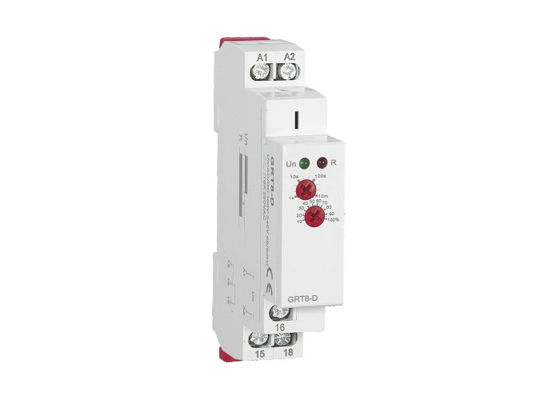

RT8-D Time Delay Off Relay 1

RT8-D Time Delay Off Relay 2
