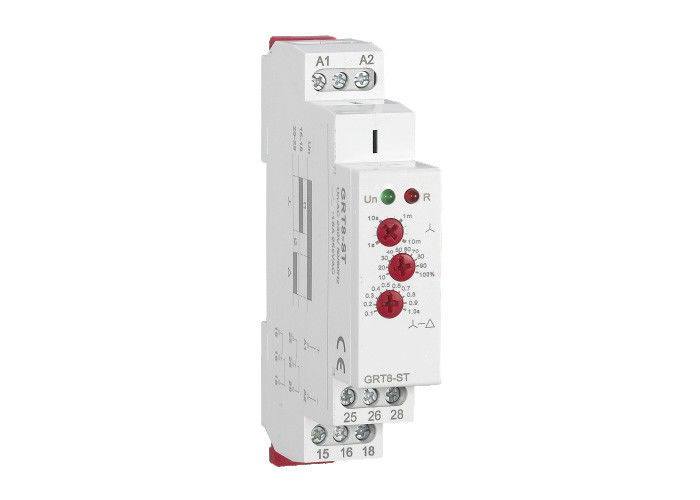

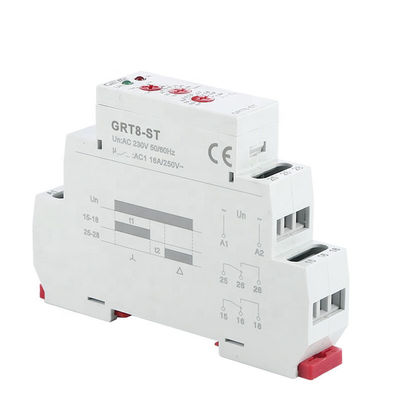

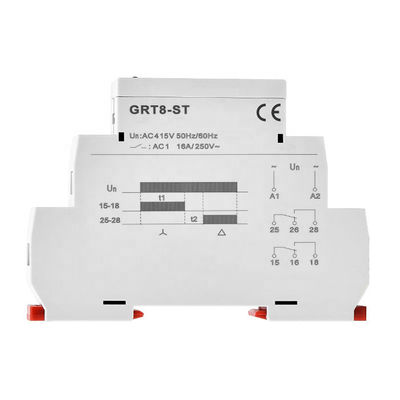

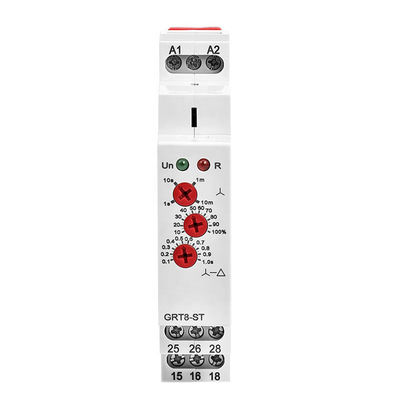

RT8-ST Modular Timing Relays

RT8-ST Modular Timing Relays

  • RT8-ST Modular Timing Relays
  • RT8-ST Modular Timing Relays
  • RT8-ST Modular Timing Relays
  • RT8-ST Modular Timing Relays
RT8-ST Modular Timing Relays
Product Details:
Place of Origin: China
Brand Name: OEM/Fenigal
Certification: CE,CCC etc.
Model Number: RT8-ST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs/month
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (33)
Weatherproof Distribution Box (48)
Fiberglass Enclosure Box (60)
ATS Automatic Transfer Switch (68)
EDI Modules (160)
Ultrafiltration Membrane Modules (72)
Industrial Circuit Breaker (85)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (144)
Moon Balloon Light (145)
Tripod LED Balloons (122)
Inflatable Light Tower (76)
Terminal Block Accessories (6)
Detailed Product Description
Product Name: DIN Rail Mount Time Relay Type: Time Delay Relay
Control Volt: DC/AC24, AC230V Acceossories: Available
Highlight:

industrial control transformer

,

automation electrical controls

RT8-ST Star delta Switch AC/DC12V-240V 2SPDT 16A Delay on Star Delta Starter Relay



General



Applications
-Designated for delay ON of motors star delta.


Function Features
-Time t1 (star) :
time scale 0.1 s - 10min devided into 4 time ranges
rough time setting by rotary switch.
-Time t2 (delay) :
time scale 0.1 s - 1 s
time setting by potentiometer
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

Technical Data

Model NO GRT8-ST
Function Delay on Star Delta Relay
Voltage Range AC230V (A230) OR AC/DC12V-240V OR AC415V
Output 2 SPDT
Supply Terminals A1-A2
Supply Voltage Tolerance -15% +10%
Glow Tubes Connections Voltage range: AC 230V Yes(A1-S)
Supply Indication Green LED
Output Indication Red LED
Rated Frequency 50/60HZ
Rated Current 16A/AC1
Protection Degree IP40 for front Panel / IP20 for Terminals
Weight/pcs 0.1KG/PCS
Standard EN 61812-1,IEC60947-5-1
Certifications CE CB CCC TUV
Warranty/guarantee 18months
MOQ 1PCS



RT8-ST Modular Timing Relays 0

RT8-ST Modular Timing Relays 1

RT8-ST Modular Timing Relays 2

RT8-ST Modular Timing Relays 3
