RV8-01/02 Automation Control Relays Single Phase
Product Details
| Product Name: | DIN Rail Mount Protection Relay | Type: | Phase Monitoring Relay |
|---|---|---|---|
| Control Volt: | DC/AC24, AC230V | Acceossories: | Available |
| Highlight |
home ac contactor,electrical control equipment |
||
Product Description

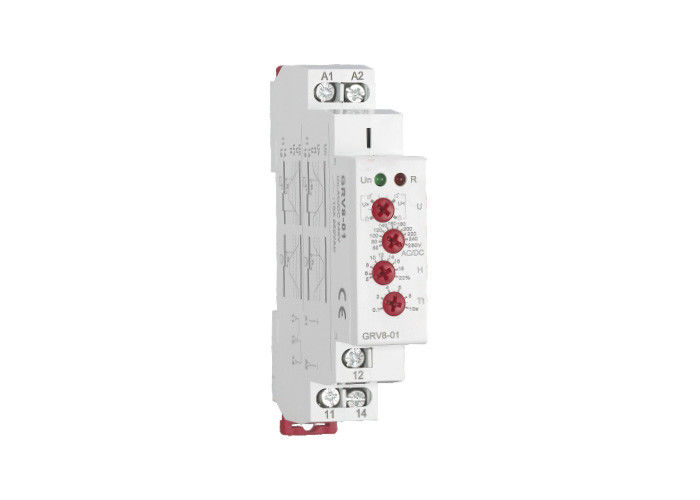

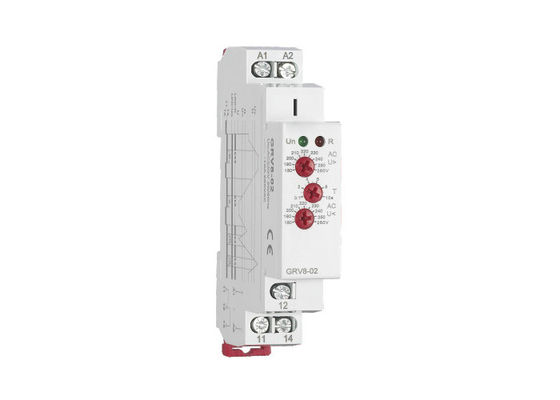

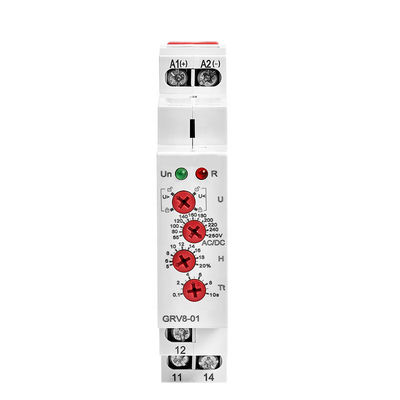

RV8-01/02 Single Phase Under Voltage Protector Automatic Voltage Relay
General
Applications
-Protect electrical equipment and motors from over-voltage and under-voltage.
-Normal/emergency power supply switching.

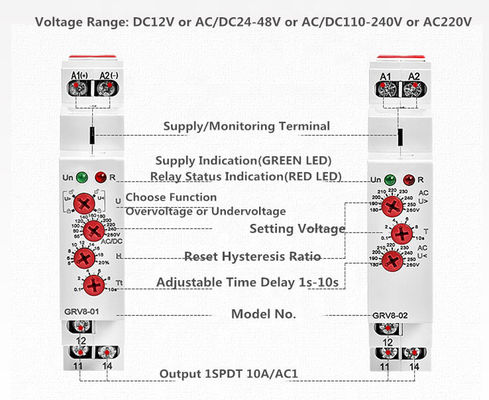

Function Features
-Controls its own supply voltage(True RMS measurement)
-.User may select operation mode through knob.
- Voltage measurement accuracy<1%.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
Technical Data
Electrical features
| Product Name | Single Phase Monitoring Voltage Relay |
| GRV8-01 | Function: Overvoltage or Undervoltage |
| GRV8-02 | Function: Overvoltage & Undervoltage |
| Voltage Range | AC/DC110-240V, DC12V, AC/DC24-48V, AC220V |
| Supply Terminals | A1-A2 |
| Output | 1SPDT |
| Current Rating | 10A/AC1 |
| Voltage Range | 50/60HZ |
| Time Delay | Adjustable 0.1s-10s (10%) |
| Reset Time | 1000ms |
| Standard | EN 60255-1,IEC60947-5-1 |
| Protection Degree | IP40 for Front Panel, IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Certifications | CE CB |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
