3 Phase Voltage Monitoring Relay Reset Time 0.1s-10s
Product Details
| Product Name: | DIN Rail Mount Protection Relay | Type: | Voltage Monitoring Relay |
|---|---|---|---|
| Control Volt: | DC/AC24, AC230V | Acceossories: | Available |
| Highlight |
ac contactor switch,home ac contactor |
||
Product Description

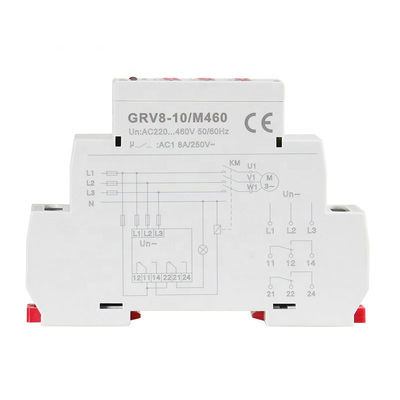

RV8-10 NEW 36mm 3 Phase Voltage Monitoring Relay with Reset Time 0.1s-10s over under voltage relays

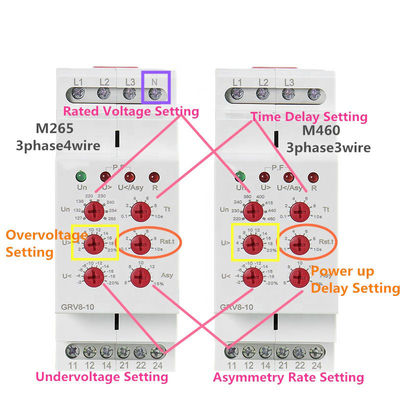

GRV8-10 Function: Overvoltage 2%-20%, Undervoltage -20%-2%, Asymmetry 5%-15%, Delay time 0.1s-10s, Phase Sequence, Phase Failure, Reset time 0.1s-10s
GRV8-10 M460 : 8A, 2SPDT, 3Phase 3Wire=M460 Voltage Range: 220V-230V-240V-380V-400V-415V-440V-460VAC(P-P)
GRV8-10 M265 : 8A, 2SPDT, 3Phase 4Wire=M265 Voltage Range: 127V-132V-138V-220V-230V-240V-254V-265VAC(P-N)
General
Applications
-Control for connection of moving equipment(site equipment,agricultural equipment,refrigerated trucks).
-Control for protection of persons and equipment against the consequences of reverse running.
-Normal/emergency power supply switching.
-Protection against the risk of a driving load(phase failure).
Function Features
-Controls its own supply voltage(True RMS measurement).
-2 C/O output .
-Measuring frequency range:45Hz-65Hz.
-Relay status is indicated by LED.
-2-MODULE,DIN rail mounting.
Technical Data
Product Highlights
RV8-10 NEW 36mm 3 Phase Voltage Monitoring Relay with Reset Time 0.1s-10s over under voltage relays GRV8-10 Function: Overvoltage 2%-20%, Undervoltage -20%-2%, Asymmetry 5%-15%, Delay time 0.1s-10s, Phase Sequence, Phase Failure, Reset time 0.1s-10s GRV8-10 M460 : 8A, 2SPDT, 3Phase 3Wire=M460 ...
