RI8-01 Over Current Detected Relay 0.5A 1A 2A 5A 8A 16A

RI8-01 Over Current Detected Relay 0.5A 1A 2A 5A 8A 16A

  • RI8-01 Over Current Detected Relay 0.5A 1A 2A 5A 8A 16A
  • RI8-01 Over Current Detected Relay 0.5A 1A 2A 5A 8A 16A
  • RI8-01 Over Current Detected Relay 0.5A 1A 2A 5A 8A 16A
  • RI8-01 Over Current Detected Relay 0.5A 1A 2A 5A 8A 16A
RI8-01 Over Current Detected Relay 0.5A 1A 2A 5A 8A 16A
Product Details:
Place of Origin: China
Brand Name: OEM/Fenigal
Certification: CE,CCC etc.
Model Number: RI8-01/02/03/04
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs/month
Contact Now
Detailed Product Description
Product Name: DIN Rail Mount Protection Relay Type: Current Monitoring Relay
Control Volt: DC/AC24, AC230V Acceossories: Available
High Light:

home ac contactor

,

electrical control equipment

RI8-01/02/03/04 Over Current Detected Relay Monitoring AC Current 0.5A 1A 2A 5A 8A 16A Current Sensor Relay



Applications
-Serves for monitoring of heating in rail-switches, heating cables, consumption
of one-phase motors, indicates current flow.

Function Features
-Adjustable delay 0.5 - 10 s to eliminate short current peaks.
-Flexible adjustment by potentiometer, choice of 6 ranges:
AC 0.05-0.5A; AC 0.1-1A; AC 0.2-2A; AC 0.5-5A; AC 0.8-8A; AC 1.6-16A
-Possible to use for current scanning from current transformer.
-Universal supply AC 24 - 240 V or DC 24 V.
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.



Technical Data

Model NO GRI8-01/02/03/04
Function Current Monitoring Relay
Voltage Range AC/DC24V-240V OR DC24V
Output 1 SPDT
Supply Terminals A1-A2
Supply Voltage Tolerance -15% +10%
Time Setting Potentionmeter
Supply Indication Green LED
Output Indication Red LED
Rated Frequency 50/60HZ
Rated Current 10A/AC1
Protection Degree IP40 for front Panel / IP20 for Terminals
Weight/pcs 0.1KG/PCS
Standard EN 61812-1,IEC60947-5-1
Certifications CE CB CCC TUV
Warranty/guarantee 18months
MOQ 1PCS

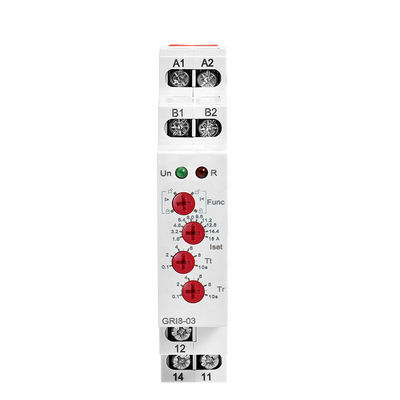

RI8-01 Over Current Detected Relay 0.5A 1A 2A 5A 8A 16A 0

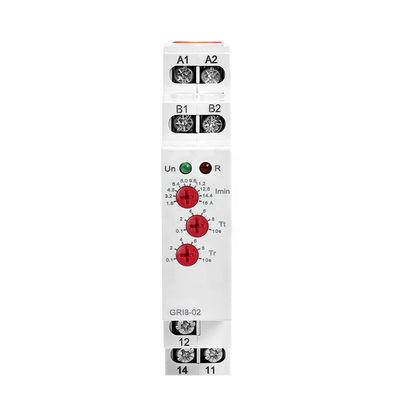

RI8-01 Over Current Detected Relay 0.5A 1A 2A 5A 8A 16A 1

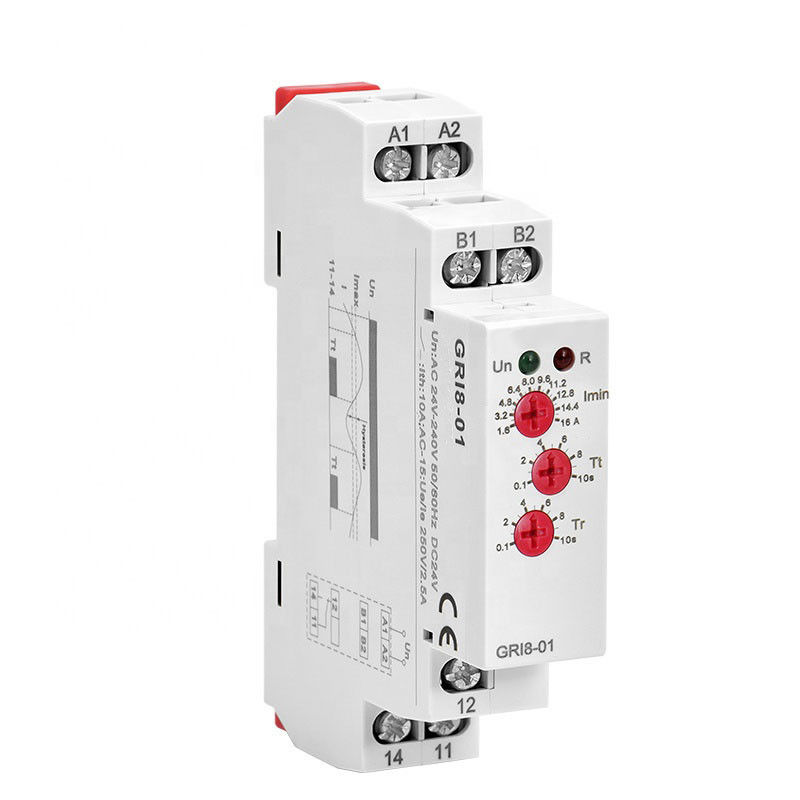

RI8-01 Over Current Detected Relay 0.5A 1A 2A 5A 8A 16A 2

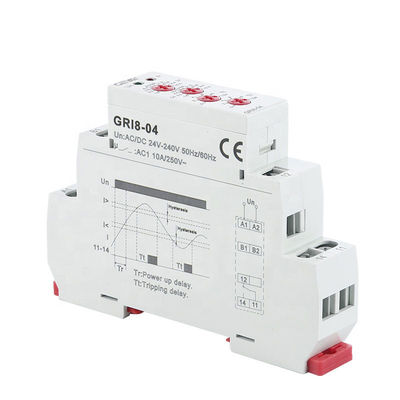

RI8-01 Over Current Detected Relay 0.5A 1A 2A 5A 8A 16A 3
