Photoelectric Timer Light Sensor Relay AC110V-240V
Product Details
| Product Name: | DIN Rail Mount Protection Relay | Type: | Current Monitoring Relay |
|---|---|---|---|
| Control Volt: | DC/AC24, AC230V | Acceossories: | Available |
| Highlight |
home ac contactor,electrical control equipment |
||
Product Description

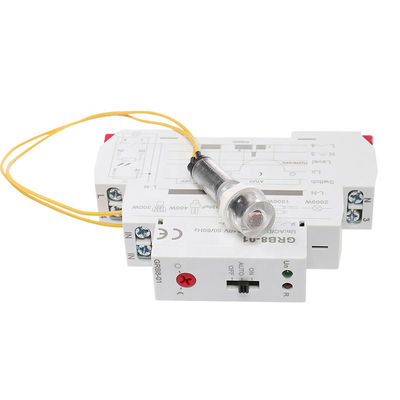

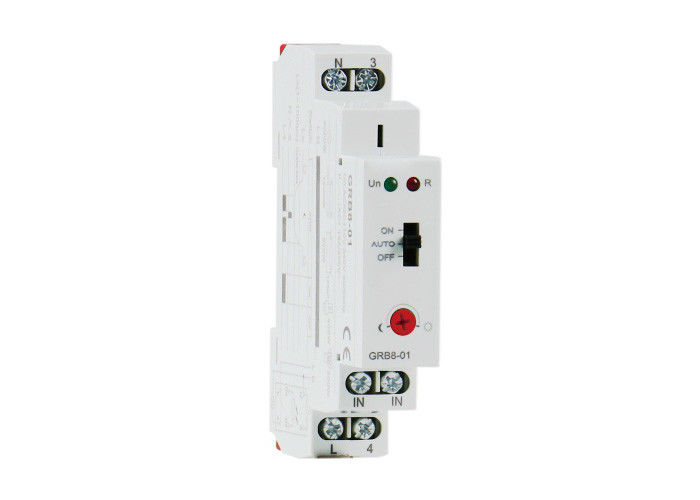

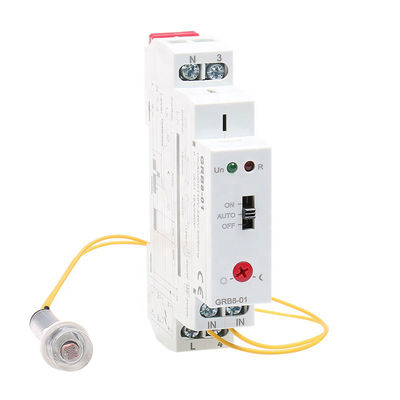

RB8-01 Din rail Twilight Switch Photoelectric Timer Light Sensor Relay AC110V-240V Auto ON OFF
General
Applications
Twilight switch with external fotosensor-Used for switching street illumination and garden lights, illumination of advertisements, shop windows, etc.
Function Features
-Serves to control lights on the basis of ambient light intensity.
-Level of ambient intensity is monitored by an external sensor and output is switched according to set level on the device.
-Control input for additional control.
-Universal supply AC 110V- 240V.
-Relay status is indicated by LED.
-1-MODULE, DIN rail mounting.
Technical Data
| Model NO | GRB8-01 |
| Function | Light Sensor |
| Voltage Range | AC110V-240V |
| Output | 1 SPST |
| Supply Terminals | L-N |
| Supply Voltage Tolerance | -15% +10% |
| Illumination Range | 1-100Lx |
| Supply Indication | Green LED |
| Output Indication | Red LED |
| Rated Frequency | 50/60HZ |
| Rated Current | 16A/AC1 |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 60255-1 |
| Certifications | CE CB CCC |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
