RW8-01 Automation Control Relays Din Rail

Product Details:

Place of Origin:	China
Brand Name:	OEM/Fenigal
Certification:	CE,CCC etc.
Model Number:	RW8-01/02

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiate
Packaging Details:	Standard export carton
Delivery Time:	5-8 working days or bulk order negotiate
Payment Terms:	T/T, Western Union
Supply Ability:	10,000pcs/month

Contact Now

All Products

Lighting Distribution Box (32)

Electrical Distribution Box (31)

Weatherproof Distribution Box (29)

Fiberglass Enclosure Box (26)

ATS Automatic Transfer Switch (53)

Industrial Circuit Breaker (78)

Solar PV System (32)

Electric EV Charging Station (8)

Modular Timing Relays (12)

Automation Control Relays (64)

Voltage Regulator Transformer (16)

Film Lighting Balloons (92)

Moon Balloon Light (108)

Tripod LED Balloons (54)

Inflatable Light Tower (26)

Terminal Block Accessories (6)

Detailed Product Description

Product Name:

DIN Rail Mount Protection Relay

Type:

Current Monitoring Relay

Control Volt:

DC/AC24, AC230V

Acceossories:

Available

High Light:

ac contactor switch

electrical control equipment

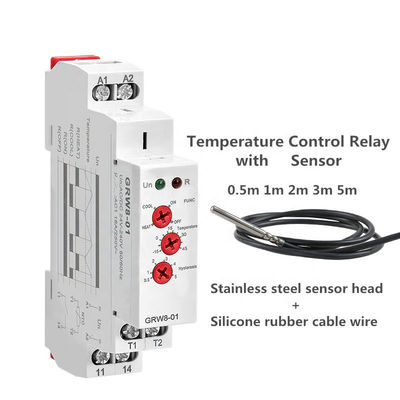

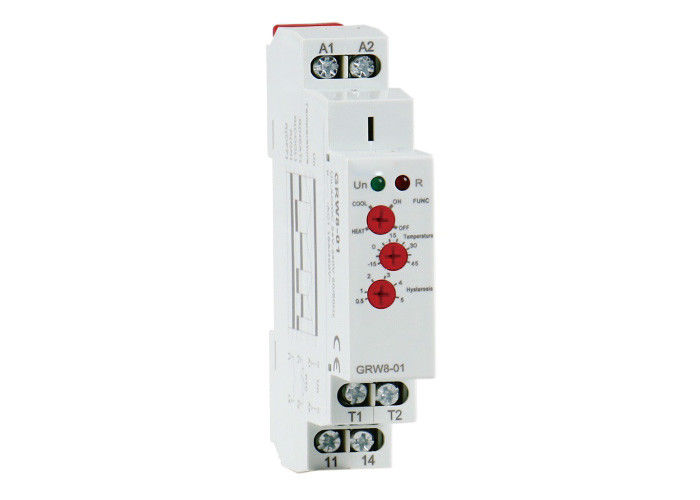

RW8-01 Din rail Temperature Control Relay AC DC 24V-240V Wide Range Voltage with Waterproof Sensor

General

Applications

Can be used for monitoring temperature e.g. in switchboards, heating systems, cooling systems, liquids, radiators, motors,devices, open spaces, etc..

Function Features

Function of short-circuit or sensor disconnection monitoring.

- Possibility to set function “heating”/”cooling”.

- It is possible to place sensor directly on terminal block – for temperature monitoring in a switchboard or in its surroundings

- Universal supply AC/DC 24V- 240 V.

- Relay status is indicated by LED.

- 1-MODULE,DIN rail mounting.

Technical Data

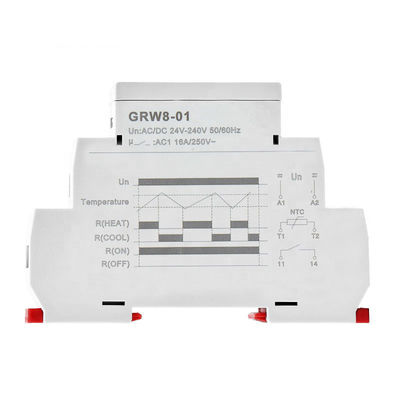

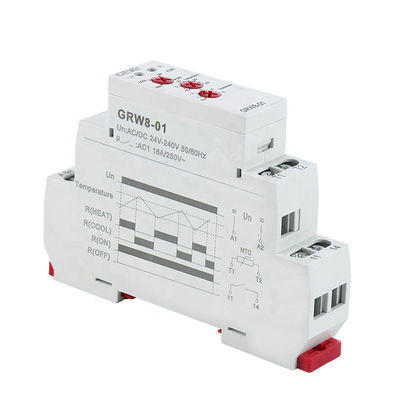

Model NO	GRW8-01 Temperature Control Relay
Function	Temperature Control Relay
Voltage Range	AC/DC240V-240V
Output	1 SPST
Supply Terminals	A1-A2
Supply Voltage Tolerance	-15% +10%
Temperature range	-15℃ to +45℃
Supply Indication	Green LED
Output Indication	Red LED
Rated Frequency	50/60HZ
Rated Current	16A/AC1
Protection Degree	IP40 for front Panel / IP20 for Terminals
Hysteresis	0.5℃ to 5℃
Standard	EN 60715
Certifications	CE CB
Warranty/guarantee	18months
MOQ	1PCS
