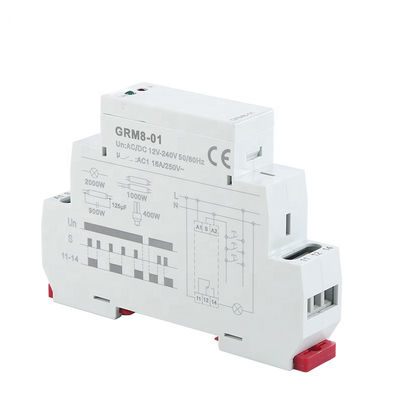

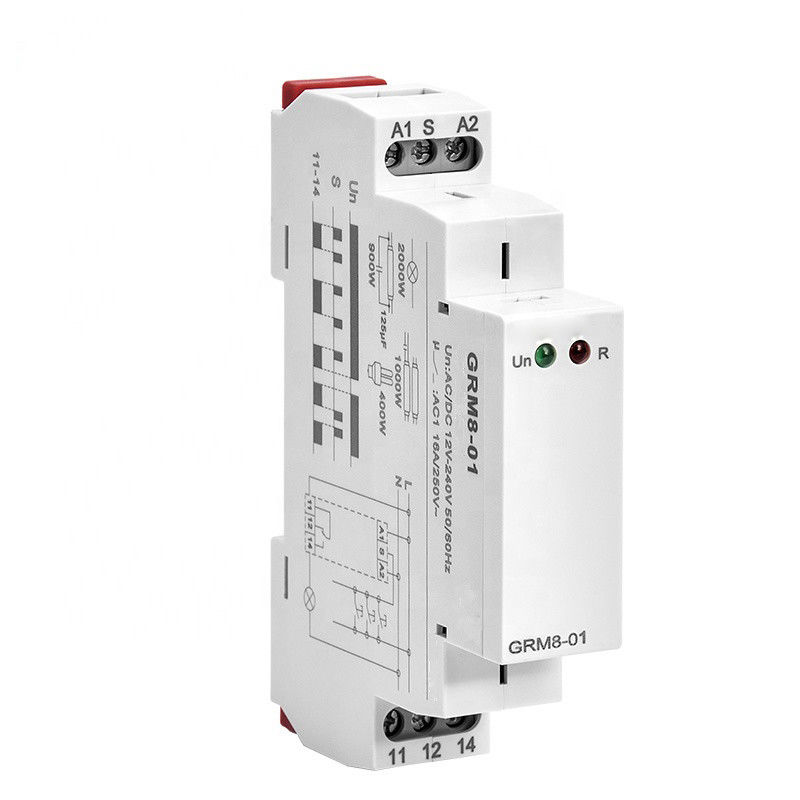

16A Step Reset Relay

16A Step Reset Relay

  • 16A Step Reset Relay
  • 16A Step Reset Relay
  • 16A Step Reset Relay
  • 16A Step Reset Relay
16A Step Reset Relay
Product Details:
Place of Origin: China
Brand Name: OEM/Fenigal
Certification: CE,CCC etc.
Model Number: RM8-01/02
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs/month
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (33)
Weatherproof Distribution Box (48)
Fiberglass Enclosure Box (60)
ATS Automatic Transfer Switch (68)
EDI Modules (160)
Ultrafiltration Membrane Modules (72)
Industrial Circuit Breaker (85)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (144)
Moon Balloon Light (145)
Tripod LED Balloons (122)
Inflatable Light Tower (76)
Terminal Block Accessories (6)
Detailed Product Description
Product Name: DIN Rail Mount Protection Relay Type: Current Monitoring Relay
Control Volt: DC/AC24, AC230V Acceossories: Available
Highlight:

ac contactor switch

,

home ac contactor

RM8 DIN Rail AC/DC 12-240V 16A Step Reset Relay PCB Relay 24vdc Latching Relay



General



Applications

-latching relay, controlled by buttons from several loacations can replace
three way switches or cross bar switchs thanks to control by buttons(un-
limited number,connected inparallel by 2 wires),installation gets more
transparent and faster for mounting.
Function Features
-Voltage range: AC 230 V,AC/DC12V-240V clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

Technical Data

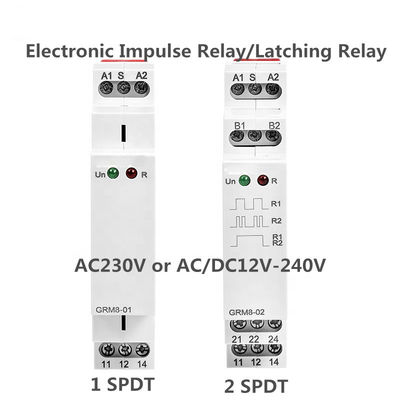

Model NO GRM8-01 OR GRM8-02
Function Impulse Relay, Latching Relay, Memory Relay
Voltage Range AC230V (A230) OR AC/DC12V-240V (W240)
Output 1 SPDT OR 2 SPDT
Supply Terminals A1-A2
Supply Voltage Tolerance -15% +10%
Glow Tubes Connections Voltage range: AC 230V Yes(A1-S)
Supply Indication Green LED
Output Indication Red LED
Rated Frequency 50/60HZ
Rated Current 16A/AC1
Protection Degree IP40 for front Panel / IP20 for Terminals
Weight/pcs 0.1KG/PCS
Standard EN 61810-1
Certifications CE CB CCC TUV
Warranty/guarantee 18months
MOQ 1PCS



16A Step Reset Relay 0

16A Step Reset Relay 1

16A Step Reset Relay 2



16A Step Reset Relay 3

16A Step Reset Relay 4
