63A Automation Control Relays
Product Details
| Product Name: | DIN Rail Mount Protection Relay | Type: | Current Monitoring Relay |
|---|---|---|---|
| Control Volt: | DC/AC24, AC230V | Acceossories: | Available |
| Highlight |
ac contactor switch,electrical control equipment |
||
Product Description

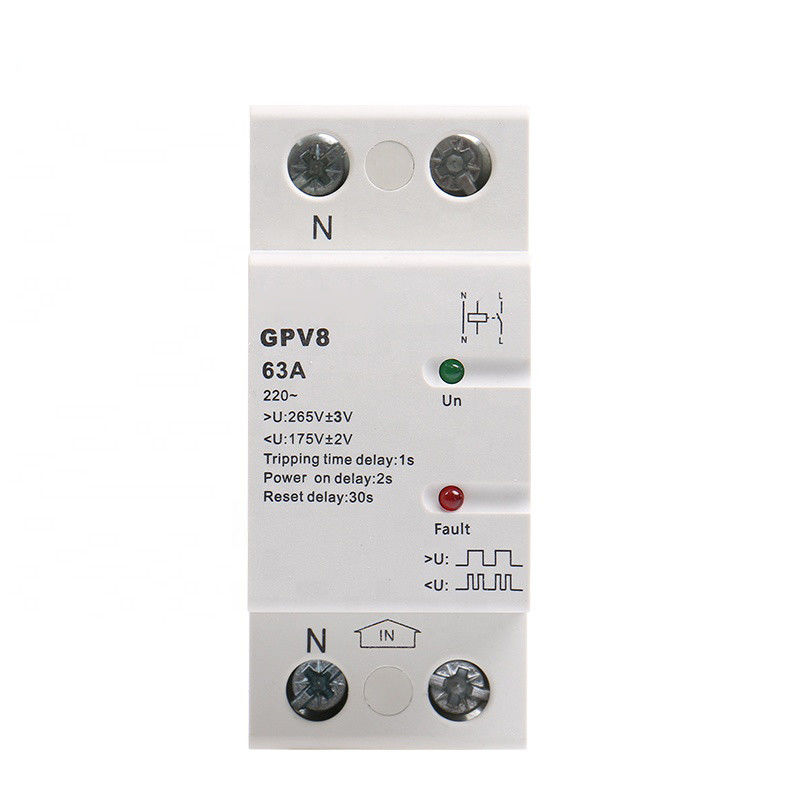

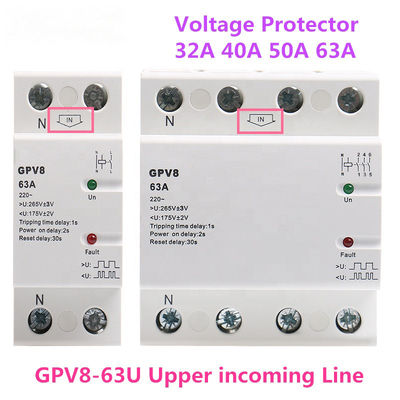

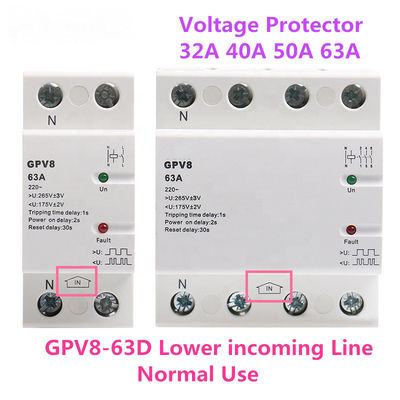

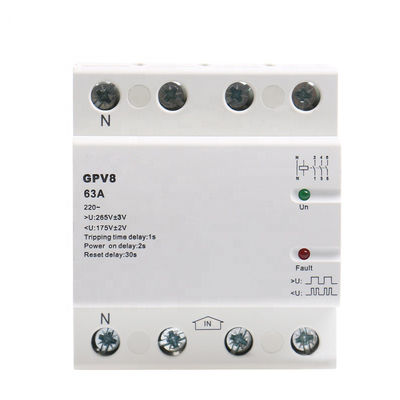

PV8 Auto Voltage Protector Din Rail 2P 4P 32A 40A 50A 63A Voltage Sensitive Relay
General
Applications
-Overvoltage and undervoltage protection for household equipment.
Function Features
-Supply voltage measurement and protection.
- Double bus wiring design stronger ability.
-Self reset after fault.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
Technical Data
| Model NO | GPV8 2P & 4P |
| Function | Automatic Over Under Voltage Protection |
| Voltage Range | AC220V |
| Burden | AC max. 3VA |
| Over voltage operation value | 265V |
| Over voltage reset value | 257V |
| Under voltage operation value | 175V |
| Under voltage reset value | 180V |
| Action delay time | 1s |
| Power- up delay | 2s |
| Reset time | 30s |
| Measurement error | ≤1% |
| Rated Frequency | 50/60HZ |
| Rated Current | 32A 40A 50A 63A |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 60255-1,IEC60947-5-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
Product Highlights
PV8 Auto Voltage Protector Din Rail 2P 4P 32A 40A 50A 63A Voltage Sensitive Relay General Applications -Overvoltage and undervoltage protection for household equipment. Function Features -Supply voltage measurement and protection. - Double bus wiring design stronger ability. -Self reset after fault. ...
