200kVA AC Motor Contactor

  • 200kVA AC Motor Contactor
  • 200kVA AC Motor Contactor
  • 200kVA AC Motor Contactor
  • 200kVA AC Motor Contactor
200kVA AC Motor Contactor
Product Details:
Place of Origin: China
Brand Name: Fenigal
Certification: CE,CCC
Model Number: SBW-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 1,000pcs/month
Contact Now
Detailed Product Description
Voltage: 380V/415V Power: 10kVA~200kVA(3phase)
Material: Steel Case + Pure Copper Coil
High Light:

200kVA apc voltage stabilizer

,

380V stabilizer voltage regulator

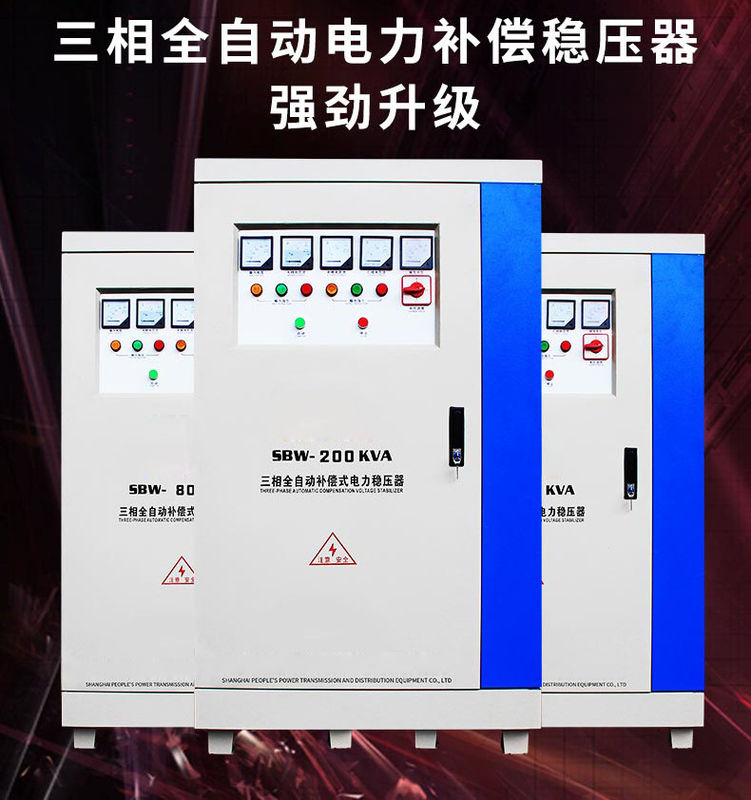

SBW-F series three phase full-automatic voltage stabilizer 380V-415V 30~200kVA



Widely used in the fields of post office,store,elevator,hospital,school,publishing house and stock exchange where normal voltage is in need,and also can be used in the factories of large and middle-scale industrial and mining corp,it is very much suitable for some important devices and supporting single machine.


Technical parameter

1. Power Range: 30kVA-600kVA (three phase);
2. Input Voltage: Ordinary 304-456V, or optional larger range;
3. Output Voltage: 380V±1-5% (Special input and output center voltage, like 3 phase 220v, 400v, 415v, etc, can be customized);
4. Coil Material: Ordinary aluminum and copper mixed, full copper can be customized, please let us know when your place order;
5. Display: Ordinary meter type, LED or LCD display screen can be customized, please let us know when your place order;
6. Frequency: 50~60Hz;
7. Electric intensity: The voltage for electrical strength and power frequency sinusoidal is 2000V without breakdown and flash over when lasts 1minute;
8. Overload Capacity: It can last 1 minute at the rated current of two times;
9. Protective function:it offers the protections against over voltage,over current,phase shortage and phase-sequence(The single-phase offers no protection against the phase shortage and phase-sequence)and mechanical failure;
10. Adjusting Time: <1s ( when input voltage has a change of 10%);
11. Response Speed: <1.5S
12. Waveform Distortion: No additional waveform distortion;
13. Efficiency: >98%;
14. Relative Humidity: ≤95%;
15. Ambient Temperature: -5 ~ +40°C;
16. Insulation Resistance: ≥2MΩ;
17. Packaging Detail: In Standard Plywood Case



Specification SBW 50KVA up to 600KVA
Input voltage Single Phase:175V-265V Three Phase:300V-456V
Output voltage Single Phase:220V Three Phase:380V
Output Deviance 1-5% adjustable
Frequency 50Hz/60Hz
Efficiency ≥95%
Response time ≤1.5S
Ambient temperature -10°C~40°C
Insulation resistance ≥5MΩ
Waveform distortion Non-Lack Fidelity Wareform
Overload Double Reted Current,One Min
Protect Overvoltage,Overcurrent,Lack Phases
Trade Items
MOQ 1 Set
Design Ability OEM&ODM is welcome,can supply sample
Certification CE,ISO9001,PCT,SGS,CCC
Packing Standard Export Packing
Payment Term Trade Assurance,T/T,L/C,D/A,D/P Western Union MoneyGram and so on
Delivery time 7-10 working days after payment received



200kVA AC Motor Contactor 0

200kVA AC Motor Contactor 1



200kVA AC Motor Contactor 2

200kVA AC Motor Contactor 3

200kVA AC Motor Contactor 4



Model (KVA) Output Power (KVA) Package Sizes(CM) Weight(KG)
SBW-50K 50 80*62*135 350
SBW-60K 60 80*62*135 370
SBW-100K 100 85*62*150 420
SBW-120K 120 100*72*170 450
SBW-150K 150 100*72*170 550
SBW-180K 180 100*72*170 570
SBW-200K 200 100*72*200 630
SBW-225K 225 110*80*180 660
SBW-250K 250 110*80*200 700
SBW-300K 300 110*80*210 740
SBW-320K 320 110*80*210 760
SBW-400K 400 100*80*210 Double cabinet 1100
SBW-500K 500 100*80*210 Double cabinet 1500
SBW-600K 600 100*80*210 Double cabinet 2200
