C45 DZ47 1P 2P 3P 4P 3kA 6KA 220V MCB 6 Amp Curve C

C45 DZ47 1P 2P 3P 4P 3kA 6KA 220V MCB 6 Amp Curve C

  • C45 DZ47 1P 2P 3P 4P 3kA 6KA 220V MCB 6 Amp Curve C
  • C45 DZ47 1P 2P 3P 4P 3kA 6KA 220V MCB 6 Amp Curve C
  • C45 DZ47 1P 2P 3P 4P 3kA 6KA 220V MCB 6 Amp Curve C
  • C45 DZ47 1P 2P 3P 4P 3kA 6KA 220V MCB 6 Amp Curve C
C45 DZ47 1P 2P 3P 4P 3kA 6KA 220V MCB 6 Amp Curve C
Product Details:
Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE, CCC etc.
Model Number: FGD47-63
Payment & Shipping Terms:
Minimum Order Quantity: 12pcs / 1doz.
Price: Negotiate
Packaging Details: standard in carton box
Delivery Time: 2~15days
Payment Terms: T/T, Western Union
Supply Ability: 200,000 pcs/month
Contact Now
Detailed Product Description
Model: FGD47-63 Pole(s): 1,2,3,4, DPN/1P+N
Volt: 220~240VAC, 380~400VAC Hz: 50~60Hz
Phase: 1/3 Standard: EN/IEC60898
Certification: CCC, CE, GS Etc. Breaking Capacity: Ics=Icn=6000A
Thermal Trip Curve: B,C,D Case Material: Nylon 66 Recylable
Wiring: Terminal Block, Busbar Duct Etc. IP20B Electric Shock Protection: Class II
Mechanical Life: 10,000 Electrical Life: 4,000
High Light:

DZ47 single phase mcb

,

6KA type c mcb

Economic MCB C45,DZ47,Miniature Circuit Breaker 6~63A, 1P,2P,3P,4P, Curve C, 3kA,6KA,220V IEC60898





FGD47-63 MCB has the characteristics of advanced structure, reliable performance, high breaking capacity and beautiful appearance. It is mainly used for AC 50HZ or 60HZ, rated voltage 400V or below and rated working current 63A or below. It is used for overload and short-circuit protection of lighting, distribution lines, equipment in office buildings, residential buildings and etc. It can also be used for infrequent on-off operations and conversion of lines.





Technical Data




Standard EN/IEC60898-1 Nuber of poles 1P,1P+N,2P,3P,3P+N and 4P
Breaking capacity 4.5kA Type of trip Thermal/magnetic release
Protection Against overload and short circuit Type of terminal Lug type and Pin type
Rated current In 0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A Terminal capacity 16mm² flexible or 25mm² rigid up to 25A ratings
25mm² flexible or 25mm² rigid from 32A to 63A ratings
Rated voltage AC:1,2,3,4 Pole 230/400V
Rated insulation voltage Ui:500V
Rated impulse withstand voltage Uimp:4000V
Energy limiting:class 3
protection degree IP 20
Ambient temperature(C°) -5~+40 Installation Mounting on 35mm DIN rail
Characteristic Thermal operating limit:(1.13-1.45)×In
Magnetic operating:B:(3-5)×In
C:(5-10)×In
D:(10-20)×In
Width 17.8mm per pole

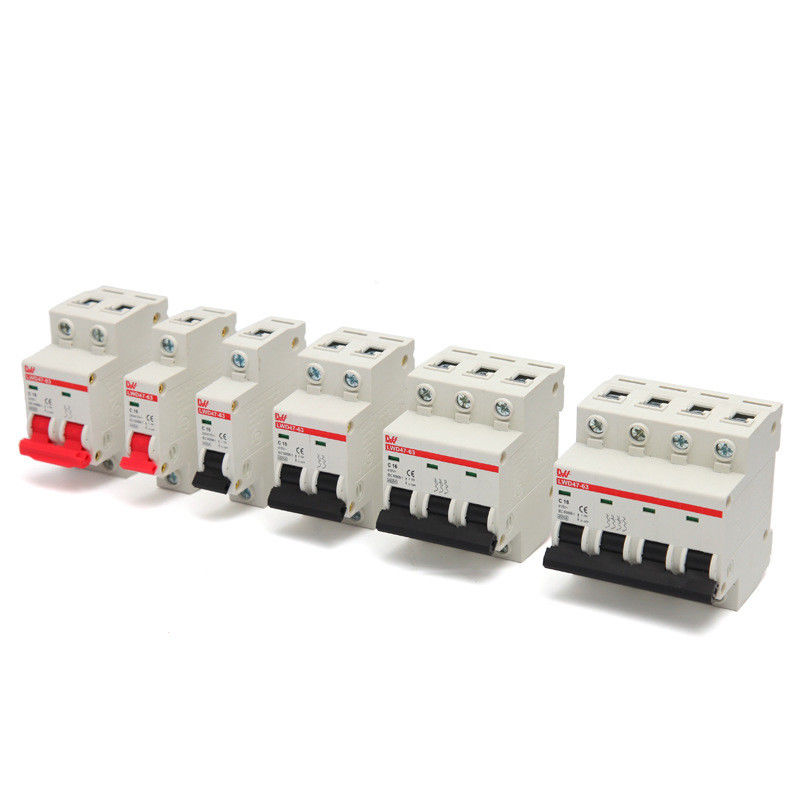

C45 DZ47 1P 2P 3P 4P 3kA 6KA 220V MCB 6 Amp Curve C 0

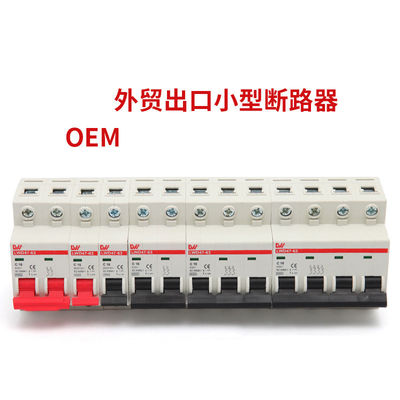

C45 DZ47 1P 2P 3P 4P 3kA 6KA 220V MCB 6 Amp Curve C 1

C45 DZ47 1P 2P 3P 4P 3kA 6KA 220V MCB 6 Amp Curve C 2

C45 DZ47 1P 2P 3P 4P 3kA 6KA 220V MCB 6 Amp Curve C 3

C45 DZ47 1P 2P 3P 4P 3kA 6KA 220V MCB 6 Amp Curve C 4

C45 DZ47 1P 2P 3P 4P 3kA 6KA 220V MCB 6 Amp Curve C 5

C45 DZ47 1P 2P 3P 4P 3kA 6KA 220V MCB 6 Amp Curve C 6
