Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898

Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898

  • Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898
  • Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898
  • Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898
  • Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898
  • Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898
Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898
Product Details:
Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE, CCC etc.
Model Number: FG47-63N
Payment & Shipping Terms:
Minimum Order Quantity: 12pcs / 1doz.
Price: Negotiate
Packaging Details: standard in carton box
Delivery Time: 2~15days
Payment Terms: T/T, Western Union
Supply Ability: 200,000 pcs/month
Contact Now
Detailed Product Description
Model: FG47-63N Pole(s): 1,2,3,4, DPN/1P+N
Volt: 220~240VAC, 380~400VAC Hz: 50~60Hz
Phase: 1/3 Standard: EN/IEC60898
Certification: CCC, CE, GS Etc. Breaking Capacity: Ics=Icn=6000A
Thermal Trip Curve: B,C,D Case Material: Nylon 66 Recylable
Wiring: Terminal Block, Busbar Duct Etc. IP20B Electric Shock Protection: Class II
Mechanical Life: 10,000 Electrical Life: 4,000
High Light:

6KA mcb thermal magnetic

,

220V thermal magnetic mcb

Premium Thermal Magnetic MCB Miniature Circuit Breaker 6~63A, 1P,2P,3P,4P, busbar connection,6KA,220V IEC60898

Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898 0

FG47-63N

Miniature circuit breakers are mechanical switching devices able to switch, conduct and switch-off the current under normal conditions, and able to switch, conduct and automatically switch-off the current under abnormal circuit conditions, such as short circuit.
Miniature circuit breakers are suitable for protection from overload and short circuit.
Method of connection: for AC MCBs optional, the input and output terminals can be changed.

Miniature circuit breakers are mechanical switching devices able to switch, conduct and switch-off the current under normal conditions, and able to switch, conduct and automatically switch-off the current under abnormal circuit conditions, such as short circuit.
Miniature circuit breakers are suitable for protection from overload and short circuit.
Method of connection: for AC MCBs optional, the input and output terminals can be changed.

Technical Data
Standard: IEC60898
Pole No.: 1P, 2P, 3P, 4P
Rated voltage: 240/415V AC
Rated current(A): 1,2,3,4,6,10,13,16,20,25,32,40,50,63
Tripping curve: B, C, D
Rated short-circuit capacity(Icn): 4.5KA/6kA
Rated frequency: 50/60Hz
Rated service short-circuit breaking capacity(Icu): 6kA
Rated impulse withstand voltage: 6.2kV
Electro-mechanicla endurance: 4000 Contact position indication
Connection terminal:
Screw terminal

Pillar terminal with clamp
Connection capacity: Rigid conductor up to 25mm2
Fastening torque: 2.0Nm
Installation:

On symmetrical DIN rail 35mm
Panel mounting

1. Beautiful product appearance, flexible operation, good electrical contact, width of 2P is 36mm.
2. Rated Current: In=63A
3. Rated Voltage: Un=AC 400V/230V
4. Breaking Capacity: 7.5kA/10kA Mechanical Life: 20000
times
5. Working temperature:-40ºC~+70ºC
6. Material of the enclosure: Thermoplastic/Thermosetting Shell





Basic Info.

Model NO.
COB-100H
Poles
1p 1p+N 2p 3p 3p+N 4p
Frequency
50/60Hz
Rated Current in(a)
6, 10, 16, 20, 25, 32, 40, 50, 63, 80, 100
Rated Insulated Voltage Ui(V)
400
Rated Working Voltage Ue(V)
1p: 20/400 1p+N: 230 2p/3p/3p+N/4p:400
Rated Impulse Withstand Voltage Uimp(V)
4000
Instantaneous Trip Type
H
Ics(Ka)
7.5
ICU(Ka)
10
Mechanical Life(Times)
20000
Origin
China

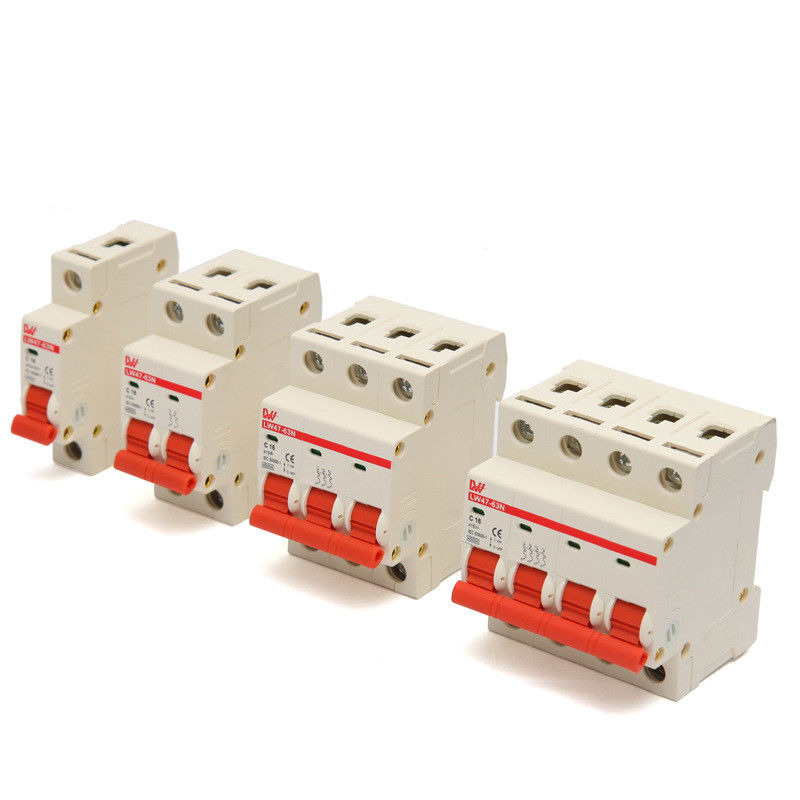

Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898 1

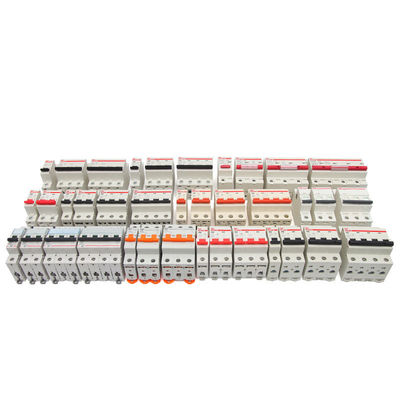

Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898 2

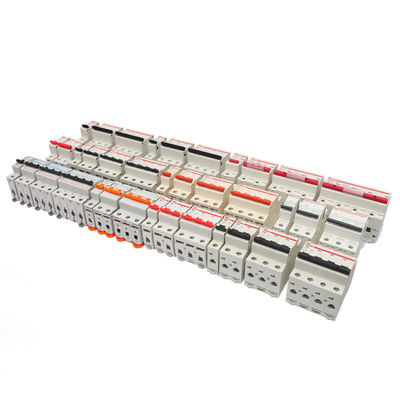

Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898 3

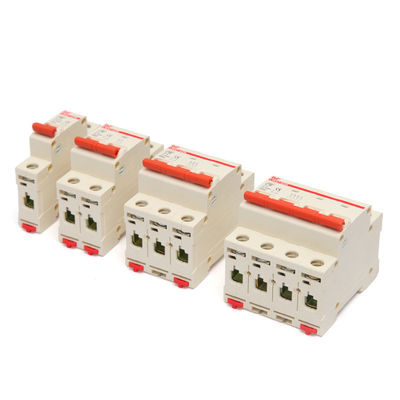

Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898 4

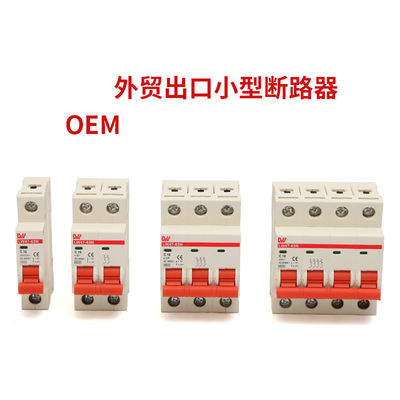

Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898 5

Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898 6

Thermal Magnetic 6KA Industrial Circuit Breaker 220V IEC60898 7
