100A 30mA 2P 4P 230V/400V IEC61008 RCCB Industrial Circuit Breaker
Product Details
| Model: | FGF362,F364 | Pole(s): | 1,2,3,4, DPN/1P+N |
|---|---|---|---|
| Volt: | 220~240VAC, 380~400VAC | Hz: | 50~60Hz |
| Phase: | 1/3 | Standard: | EN/IEC61008 |
| Certification: | CCC, CE Etc. | Rated Conditinal Short Circuit Capacity: | 6000A |
| Earth Leakage Current: | 30mA, 100mA, 300mA | Case Material: | Nylon 66 Recylable |
| Wiring: | Terminal Block, Busbar Duct Etc. IP20B | Electric Shock Protection: | Class II |
| Mechanical Life: | 10,000 | Electrical Life: | 4,000 |
| Highlight |
30mA rccb mcb,4P rcd power breaker |
||
Product Description

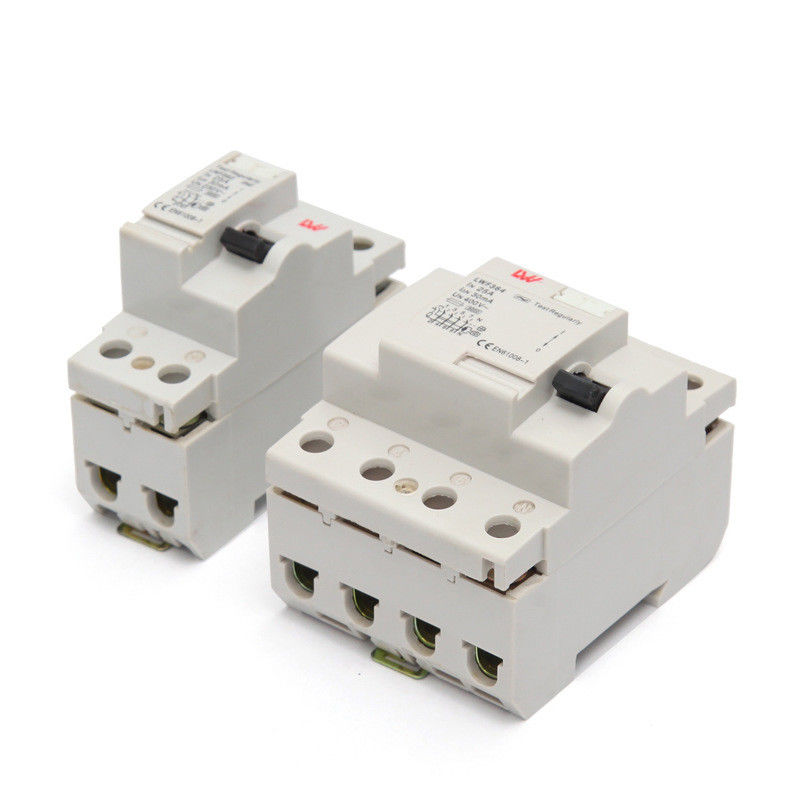

Higer quality RCCB Residual Current Circuit Breaker 16~100A,30mA,2P,4P, 230V/400V IEC61008
F362, F364 SERIES Earth Leakage circuit breaker (ELCB) without over current protection conforms to the standards of GB16916.1, EN61008, and BS 4293 etc. It is used in the circuit of AC 50~60Hz, single phase 240V, three phases 415V in industrial & mining enterprises, commercial buildings and housing for protection of personal electric shock hazard and electric equipment and for unfrequented switchover of circuits under normal conditions
Construction and Feature:
-Provides protection against earth fault/leakage current and function of isolation.
-High short-circuit current withstand capacity
-Application to terminal and pin/fork type bulbar connection
-Fire resistant plastic parts endures abnormal heating and strong impact
-Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
-Independent of power supply and line voltage, and free from external internal interference voltage fluctuation.
Technical Data:
Type: Residual Current Circuit Breaker
Arc-extinguishing Medium: Air
Structure: Earth Leakage Circuit Breaker
Breaking Capacity: Low Voltage Circuit Breakers
Speed: Normal Type Circuit Breaker
Operation: Electric Type, Manual Type.
Residual current characteristic: AC
Pole No. 2, 4
Rated making and breaking capacity: 630A
Rated current (A): 25, 40, 63
Rated voltage: 230/400V AC
Rated Frequency: 50/60Hz
Rated Residual operating current IΔ N (mA): 30, 100, 300, 500
Tripping time: 100ms(depending on specifications 5XIΔ N400ms)
Minimum value of rated making and breaking capacity (Im): 1KA
Ambient temperature: -5 C~+55 C
Climatic resistance: 55 C/28 cycles
Vibration resistance: Minimum 5g 30min, 0~8Hz
Life expectance: At least 10, 000 operations
| Type and Specification |
Rated Current |
Rated Voltage |
Rated Operating Current |
Residual Operating Current range |
Rated conditional Short circuit Current |
Mechanical life |
|

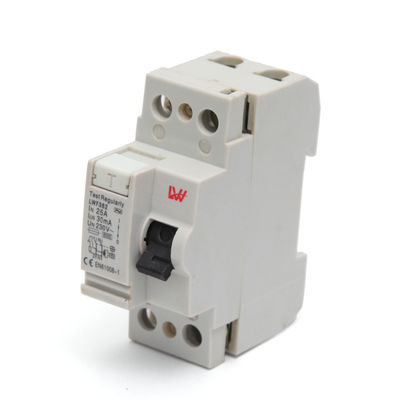

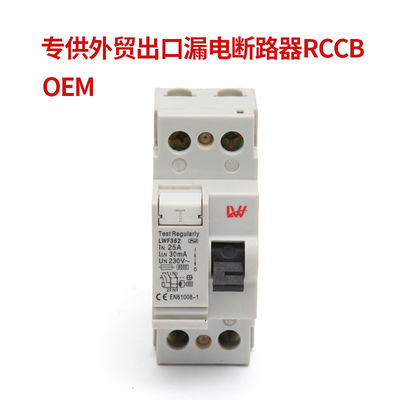

| F362 | 2 Poles | 16A 25A 32A 40A 63A 80A 100A |
AC 240V | 0.03A 0.1A 0.3A |
0.5I Δ n~ I Δ n | 3000A to 6000A | 10000 |

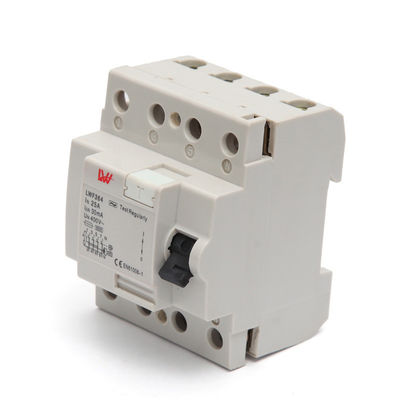

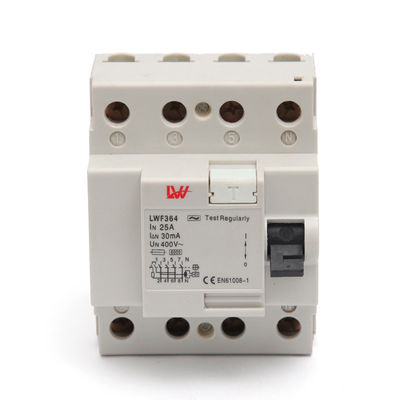

| F364 | 4 Poles | 16A 25A 32A 40A 63A 80A 100A |
AC 415V | 0.03A 0.1A 0.3A |
0.5I Δ n~ I Δ n | 3000A to 6000A | 10000 |
