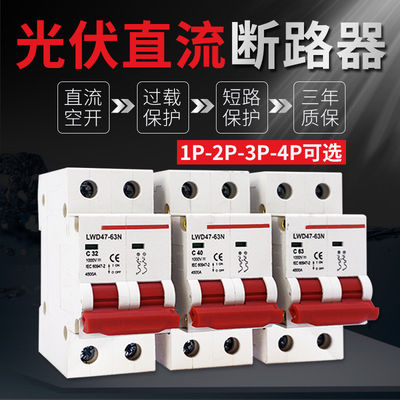

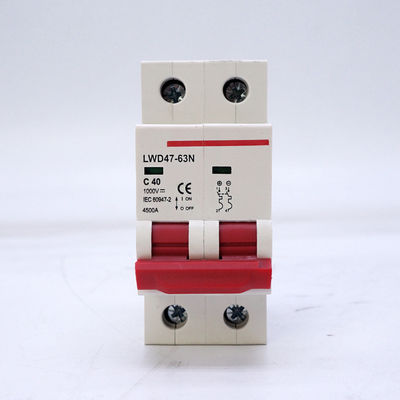

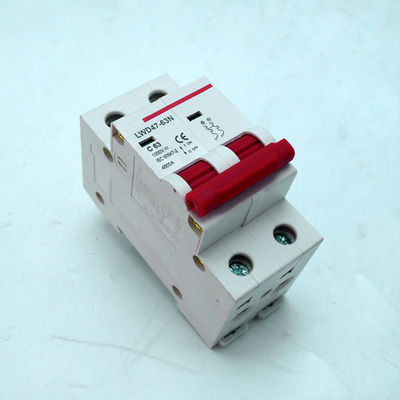

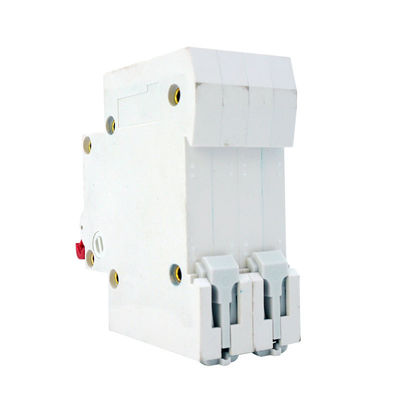

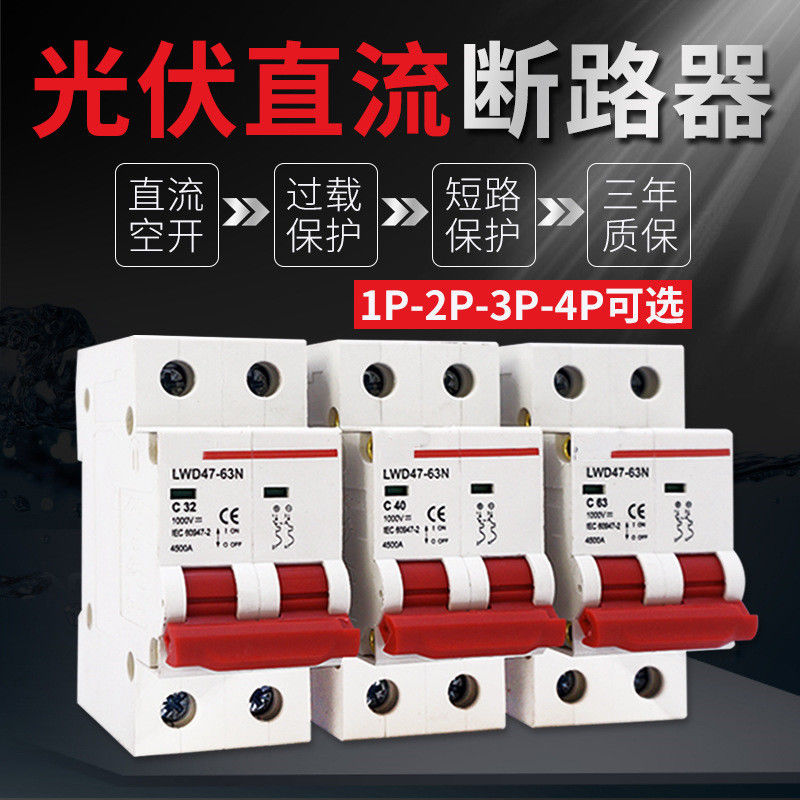

1p 2p 3p 4p 6ka 10ka PV 63A Industrial Circuit Breaker DC/AC Solar System
Product Details
| Model: | FGD47-63PV | Pole(s): | 1,2,3,4 |
|---|---|---|---|
| Volt: | 220~240VAC, 380~400VAC | Hz: | 50~60Hz |
| Phase: | 1/3 | Standard: | EN/IEC60947 |
| Certification: | CCC, CE, GS Etc. | Breaking Capacity: | Ics=Icn=6000A |
| Thermal Trip Curve: | B,C,D | Case Material: | Nylon 66 Recylable |
| Wiring: | Terminal Block, Busbar Duct Etc. IP20B | Electric Shock Protection: | Class II |
| Mechanical Life: | 10,000 | Electrical Life: | 4,000 |
| Highlight |
63A thermal breaker switch,4p mini circuit breakers |
||
Product Description
MCB DC/AC Solar System PV Circuit Breakers, 63A, 1p, 2p, 3p, 4p, 6ka/10ka High Breaking Capacity, 100V/230V/400V, OEM
FGD47-63PV series DC mini circuit breakers are applied at direct current circuit system, with rated operation ovltage DC220V, rated current upto 63A, to make protection of overload and short circuit, also for infrequent changeover for the lines. The breakers are used at places of commercial office, residential and similar buildings.
The product meets standards of GB 10963.2 and IEC 60898-2, at advanced international level.
Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.
dc mcb Features:
1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic
Technical Data
| Standards | IEC 60947 |
| Poles | 1P/2P/3P / 4P |
| Magnetic tripping characteristics | C2 |
| Rated current(A) | 6 10 16 20 25 32,40,50,63A |
| Rated short-circuit capacity(Icn): | 4.5/6kA |
| Rated voltage | DC250V DC550V DC750V DC800V DC1000V DC1200V |
| Rated withstand voltage (Uimp): | 6kV |
| Rated insulation voltage(Ui): | 1000 |
| Contact position indication | Yes |
| Energy limiting class: | 3 |
| Electrical Life: | >2000 |
| Mechanical Life: | >1500 |
| Connection terminal: | Screw terminal |
| Pillar terminal with clamp | |
| Connection capacity: | 1~16mm |
| Installation: | Symmetrical DIN rail 35mm |
| Panel mounting | |
| Accessories: | OF: Auxiliary contact |
| FB: Auxiliary alarm | |
| QY: under/over volage protector | |
| FL: Shunt release |
