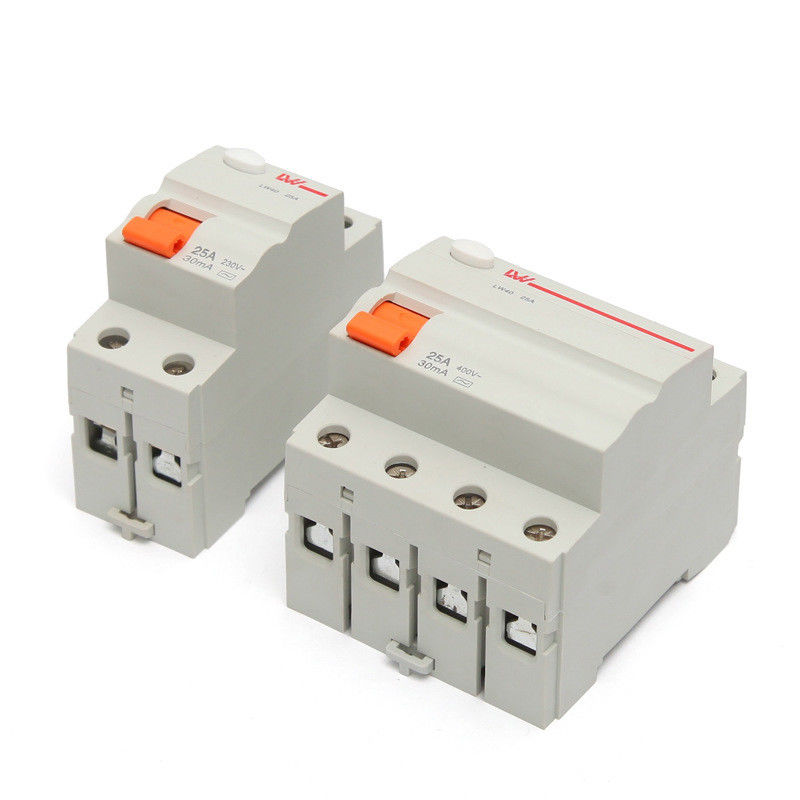

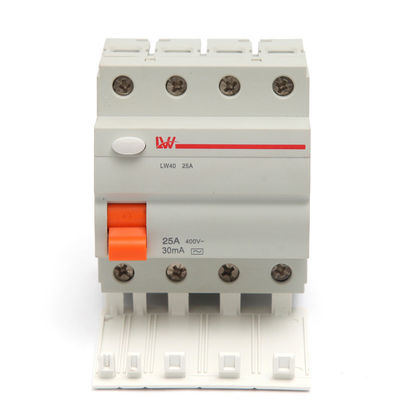

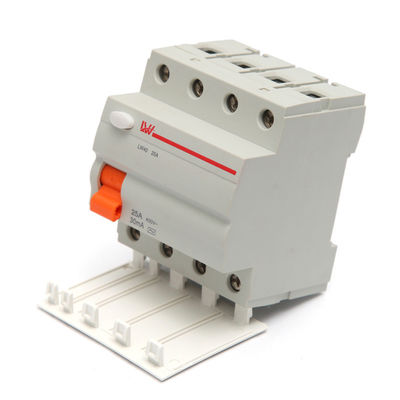

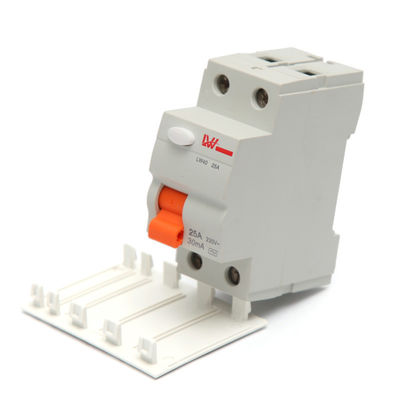

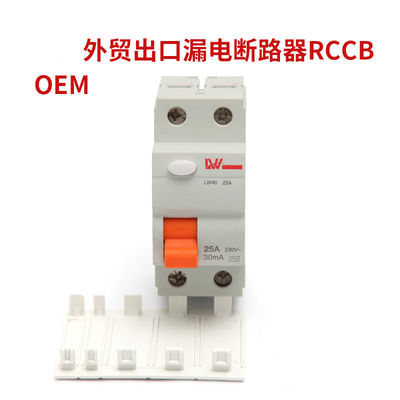

RCCB IEC61008 2 Pole 300mA Industrial Circuit Breaker

RCCB IEC61008 2 Pole 300mA Industrial Circuit Breaker

  • RCCB IEC61008 2 Pole 300mA Industrial Circuit Breaker
  • RCCB IEC61008 2 Pole 300mA Industrial Circuit Breaker
  • RCCB IEC61008 2 Pole 300mA Industrial Circuit Breaker
  • RCCB IEC61008 2 Pole 300mA Industrial Circuit Breaker
  • RCCB IEC61008 2 Pole 300mA Industrial Circuit Breaker
RCCB IEC61008 2 Pole 300mA Industrial Circuit Breaker
Product Details:
Place of Origin: China
Brand Name: Fenigal/OEM
Model Number: ID
Payment & Shipping Terms:
Minimum Order Quantity: 12pcs / 1doz.
Price: Negotiate
Packaging Details: standard in carton box
Delivery Time: 2~15days
Payment Terms: T/T, Western Union
Supply Ability: 200,000 pcs/month
Contact Now
Detailed Product Description
Certification: CCC, CE Etc. Model: ID
Pole(s): 2,4 Volt: 220~240VAC, 380~400VAC
Hz: 50~60Hz Phase: 1/3
Standard: EN/IEC61008 Rated Conditinal Short Circuit Capacity: 6000A
Earth Leakage Current: 30mA, 100mA, 300mA Case Material: Nylon 66 Recylable
Wiring: Terminal Block, Busbar Duct Etc. IP20B Electric Shock Protection: Class II
Mechanical Life: 10,000 Electrical Life: 4,000
High Light:

300mA rcd power breaker

,

2 Pole rccb

New RCCB Residual Current Circuit Breaker for Earth Leakage Protection 63A 30mA 2P 4P IEC61008

ID series Residual current circuit breaker(without over-current protection) is suitable for the line of A and S 50/60Hz, voltage 240V(2pole)/415V(4pole), rated current up to 63A.When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will cut off the power rapidly to protect human safety and prevent the accident due to the current leakage.It can be used as infrequent changeover of the line in normal situation.It is applicable to industrial site, commercial site, tall building and civil house.

It complies with standard of IEC/EN61008.1 and GB16916.1.Each phase of conductor at the circuit breaker passes through the zero-sequence current transformer, and the secondary side of coil connects with the electromagnetic tripper.Under normal condition, the vector sum of each phase of current passing through zerosequence current transformer is zero.The flux of the zero-sequence current transformer is zero.And the secondary output voltage is zero and the circuit breaker doesn't zero, and the zero-sequence current transformer would produce the magnetic flux, and the secondary side of coil would output the voltage.Once the leak current increases to drive the output voltage at the secondary side to grow to certain level, the electromagnetic release would activate to drive the operation mechanism to act to break the contact that connects the power, finally to realize the leak protection.



Model NO.
ID

Certification
CE, CB
Dimension
Customized
Color
Customized
Standards
IEC
Brand
Fenigal/OEM
Category
RCCB
Current
16,20,25,32,40,50,63A
No. of Pole
2,4
Voltage
230,400
Breaking Capacity1
6ka
AC or a
AC or a

Transport Package
with Strong Package
Specification
RoHS
Origin
China
HS Code
853620000



















Frame 63A
Rated working voltage 240/415V
Rated frequency 50/60Hz
Rated working current 16,20,25,32,40,50,63A
Rated residual operating current 0.03,0.1,0.3A
Rated residual un-operating current 0.015,0.05,0.15A
Sensibility A Type,AC Type,S Type
Maximum operating time IΔn t≤0.1s , 5IΔn t≤0.04
Rated making and breaking capacity In≤50A 500A,In=63A 630A
Limiting value of un-operating current 6In
Rated limiting short-circuit current 6000A
Pole number 2,4P
Mechanical life 10000
Electric life 4000



Residual Current Circuit Breaker


Catalogue
Number

Rated
Current (A)

Number
of Pole

Rating

Type

Un(V)

IΔc(A)

FGID-63/2P

16,20,25,32,
40,50,63

2P

10,30,
100,300

AC,A

230VAC

6000

FGID-63/4P

16,20,25,32,
40,50,63

4P

10,30,
100,300

AC,A

400VAC

6000
