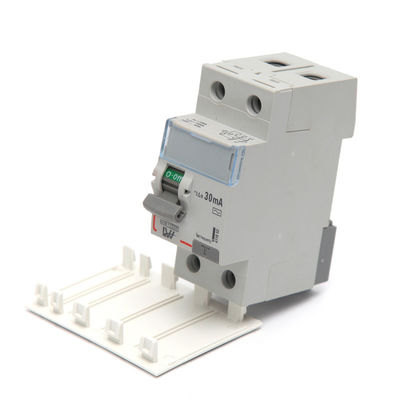

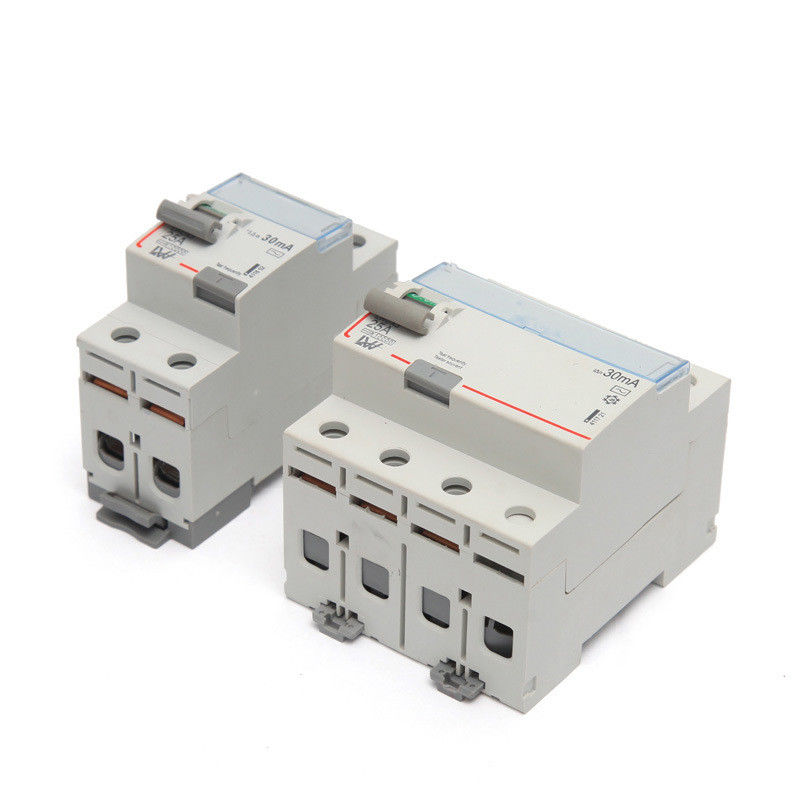

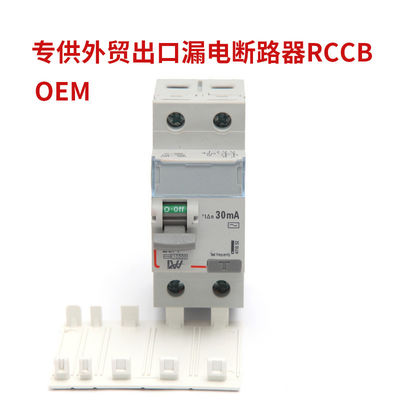

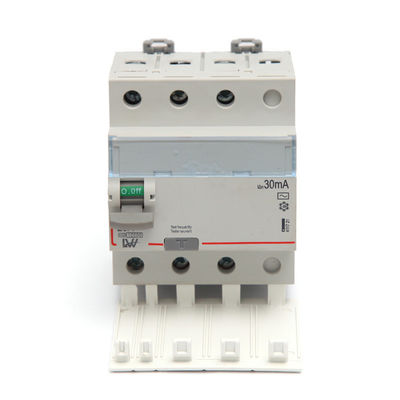

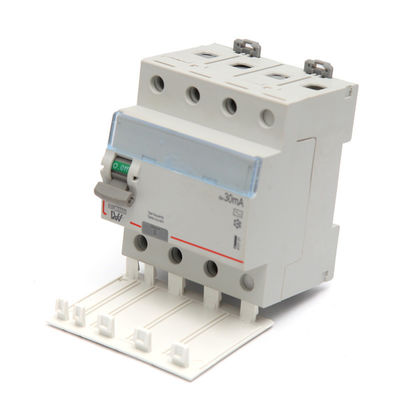

RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker

RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker

  • RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker
  • RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker
  • RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker
  • RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker
  • RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker
RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker
Product Details:
Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE, CCC etc.
Model Number: RX3
Payment & Shipping Terms:
Minimum Order Quantity: 12pcs / 1doz.
Price: Negotiate
Packaging Details: standard in carton box
Delivery Time: 2~15days
Payment Terms: T/T, Western Union
Supply Ability: 200,000 pcs/month
Contact Now
Detailed Product Description
Model: RX3 Pole(s): 2,4
Volt: 220~240VAC, 380~400VAC Hz: 50~60Hz
Phase: 1/3 Standard: EN/IEC61008
Certification: CCC, CE Etc. Rated Conditinal Short Circuit Capacity: 6000A
Earth Leakage Current: 30mA, 100mA, 300mA Case Material: Nylon 66 Recylable
Wiring: Terminal Block, Busbar Duct Etc. IP20B Electric Shock Protection: Class II
Mechanical Life: 10,000 Electrical Life: 4,000
High Light:

100MA rcd breaker switch

,

50A residual current switch

LEGRAND RCCB ELCB RCD RX3 TX3 DPXL RX3-ID 2P 4P 2POLE 4 POLE 30MA 100MA 40A 63A 25A 16A 50a residual circuit breaker

Residual current circuit breaker (without over-current protection) is suitable for the line of AC 50/60Hz,voltage 240V(2pole)/415V(4pole),rated current up to 63A.When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, RCCB will cut off the power rapidly to protect human safety and prevent the accident due to the current leakage.

It can be used as infrequent changeover of the line in normal situation. RCCB is applicable to industrial area, commercial area, tall building and civil house.

It complies with standard IEC/EN61008.1 and GB16916.1

The Residual Current Circuit Breakers (RCCBs) range is commonly used to open a circuit automatically in the case of an earth leakage fault between phase/ neutral and earth, greater or equal to 10, 30, 100, 300 or 500mA.



RCCBs range




  • 2 pole 230V - 50Hz
  • 4 pole 230/400V - 50Hz
  • Terminal capacity : 16-63A rigid 25mm², flexible 16mm²
  • Terminal capacity : 80-100A rigid 50mm², flexible 35mm²
  • Sensivity from 10 to 500mA
  • Current from 16 to 100A



Newest type RCCB

Application:

1. For protection against risk of fire due to live to earth fault where fault current is insufficient to cause over-current protection device to operate

2. For protection against risk of shock from indirect contact with equipment suffering a live to earth fault.

3. For protection against shock in potentially hazardous environment

4. As supplementary protection against shock from directly touching live parts
Note: An RCCB must not be used as the sole means of protection against touching live parts


Specification:

Rated working voltage: 240/415V
Rated frequency: 50/60Hz
Rated working current: 16, 20, 25, 32, 40, 50, 63, 80, 100A
Rated residual operating current: 0.03, 0.1, 0.03A
Sensibility: AC Type



Model NO.
RX3 RCCB
Breaking Capacity
Low Voltage Circuit Breakers
Operation
Electric Type
Speed
Normal Type Circuit Breaker
Arc-extinguishing Medium
Air
Installation
Fixed
Structure
Conventional Circuit Breaker
Certification
CE
Body Material
PA66
The Inside Parts
IEC Standard Accessaries
Type
Circuit Breaker
Function
Overcurrent Protection
Trademark
Fenigal/OEM
Specification
IEC1008, GB16916, BS EN61008
Origin
China Wenzhou

RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker 0

RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker 1

RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker 2

RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker 3

RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker 4

RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker 5

RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker 6

RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker 7

RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker 8

RCCB ELCB RCD 30MA 100MA 25A 16A 50A Industrial Circuit Breaker 9
