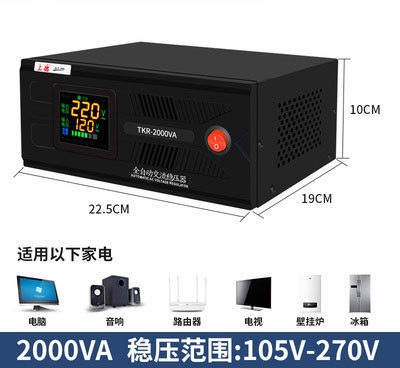

AC 110V 260V 500VA 1000VA 5kVA Automatic Voltage Stabilizer
Product Details
| Voltage: | 230V/400V | Power: | 0.5kVA~30kVA(1phase), ~60kVA(3phase) |
|---|---|---|---|
| Material: | Steel Case + Pure Copper Coil | ||
| Highlight |
1000VA auto cut stabilizer,5kVA auto voltage stabilizer |
||
Product Description
AC Stabilizer, Automatic Voltage Stabilizer 110V~260V 500VA, 1000VA, 5kVA TKR TND
Application
full-automatic AC voltage regulator collects sample and amplifies it and automatically control circuit, and drives the servomotor to rotate the rocker arm and brush in required direction, and finally adjusts the output voltage to the rated value, finally reaches the aim of stabilizing the voltage. It can be widely used in areas, where the mains voltage often comes across sharp fluctuation or sharp seasonal variation, such as industrial production, scientific research medical treatment & hygiene, household electrical appliances, it can provide any loads with excellent power supply.
Features
Elegant appearance, compact structure, light weight, low power waste, complete protection functions, stable and reliable, low output waveform distortion and so on.
Operation conditions
Ambient temperature: -15℃~+45℃.
Relative humidity ≤90%(at +25℃).
Altitude: ≤1000m.
Working environment: Indoors, be free from chemical deposition, dirt, harmful corrosive medium, or flammable or explosive gas.
Technical Data
| Chint TND/TNS voltage stabilizer | ||
| Model | TND | TNS |
| Phase | Single | Three |
| Power (kVA) | 0.5,1,1.5,2,3,5,10, 15,20,30 |
1.5,3,4.5,6,9,15, 20,30,45,60 |
| Input volt | 140~260V | 280~430V(3P4L) |
| Output volt | 220V+/-4% | 380V+/-4% |
| Frequncy | 50-60Hz | |
| Stabilizing time | <=3s with input volt fluactuating less than 20V | |
| Harmonic distortion | No additional distortion | |
| Output over-voltage protection set value |
246+/-4V phase voltage 246+/-4V | |
| Output under-voltage protection set value |
180+/-4V phase voltage 180+/-8V | |
Technical characteristics
Output capacity
The relation between output capacity and input voltage refer to as fig. 1 When input voltage less than 198V, the output capacity of product will decrease, the working capacity of stabilizer shall come down; when you choose output voltage of 110V, the out put capacity shall be not more than 50% rated capacity,to prevent overload.
Overload capacity
The stabilizer is not allowed for working overloading long time, when the input phase voltage fluctuate within 198V ~ 250V (line voltage from 342V ~ 430V), at emergent case, it is allowed to work as specified
