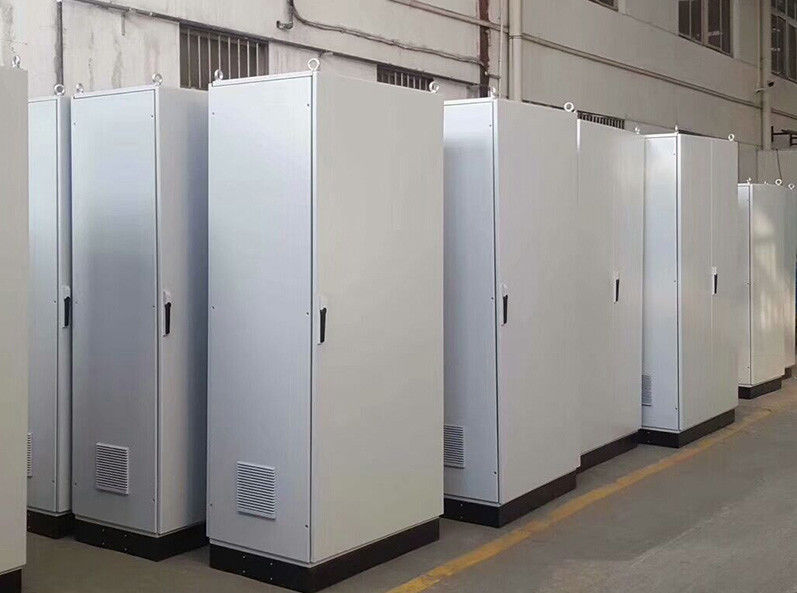

XL-21 Low Voltage Control Power Mobile IP40 Electricity Cabinet
Product Details
| Material: | Stainless Steel | Color: | White, RAL 7035 |
|---|---|---|---|
| Application: | To Protect Circuit Breakers Installed In The Panel Box,Indoor Or Outdoor,Industrial | Type: | Distribution Box,Power Distribution System |
| Protection Level: | IP40 | Rated Voltage: | 220/380V,110V/220V |
| Standard: | IEC60439-3 | Rated Current: | 6A-400A |
| Function: | Waterproof Distribution Box | Certification: | CE |
| Name: | Distribution Cabinet/Power Electric Meter Box | Mounting Type: | Flush Or Surface |
| Protection Level: | IP2X | Specification: | 800*1200*2200 |
| Highlight |
IP40 Electricity Cabinet,RAL Electricity Cabinet,IP2X Electricity Cabinet |
||
Product Description
XL21 Chint Motor Control Center JXF Enclosure in Sheet Steel for Power Distribution or Water Pump Control Cabinet
Panel Building Services for Electrical Installation and Distribution
General
XL21 Chint Motor Control Center Enclosure for Power Distribution (hereinafter referred to as EDB) is developed by our company after referring to Swiss ABB's MNS series low-voltage EDB and making comprehensive improvement.The products are composed of standardized, serial modules, and the drawer has a reliable mechanical interlock device, which makes the user safer and more reliable when using.
The distribution cabinet is suitable for use in ac 50 Hz (60), rated voltage 400 v, 660 v, rated current under 5000 a and three-phase five wire of electric power supply system, can be used in power plants, substations, industrial and mining enterprises, hotel, airport, dock and radio and television communications center, for power generation, transmission and distribution, power conversion and power consumption equipment control, and through the ark to its main bus-bar capacitance compensation for reactive power compensation.
The product design has fully considered the requirements of the majority of power users and design departments, which can meet the needs of the developing power industry such as the centralized control of capacity increase power, convenient installation and maintenance, and shortened accident treatment time, etc., which is safe, economical, reasonable and reliable.The product has the characteristics of strong connection ability, high breaking ability, good dynamic stability, flexible electrical scheme, convenient combination, strong series and practicability, novel structure and so on.At the same time, it can be combined with drawers and cabinets for mixed use.
Switch cabinet cabinet structure is composed of profiles (module E=25mm) assembly.As a result of using lock since tapping screw and 8.8 class high strength bolt for connection, thus high precision cabinet, good patience.
Technical Data
| Items | Parameters | |
| Rated insulation voltage (V) | 660 | |
| Rated operating voltage (V) | 380/660 | |
| Auxiliary circuit rated voltage (V) | AC | 220/380 |
| DC | 110/220 | |
| Operating frequency (Hz) | 50 - 60 | |
| Rated current (A) | Horizontal bus-bar | < 3150 |
| Vertical bus-bar | 630/800 | |
| Rated short-time withstand current | Midline (kA/1 s) | 50 |
| Bus-bar (kA/1 s) | 30 | |
| Rated peak current (kA/0.1 s) | 105/50 | |
| Functional unit breaking capacity (kA) | 50 (effective value) | |
| Cabinet protection degree | IP40 | |
| Bus-bar | Three phase four wire system, three phase five wire system | |
| Operating mode | On-site, distance and automatic | |
