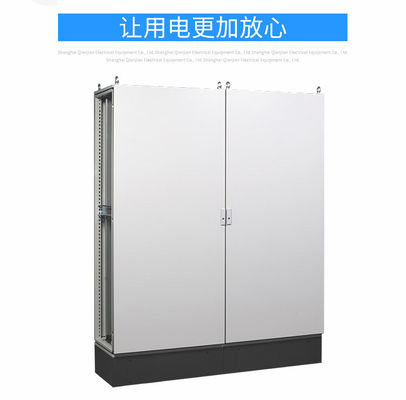

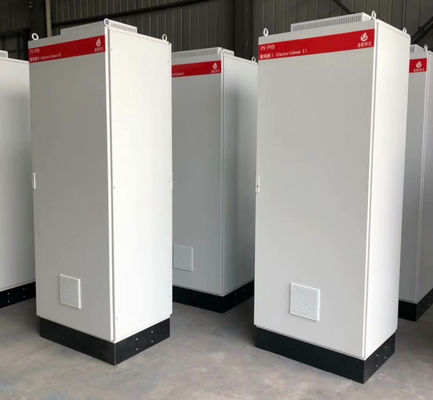

IP66 Steel Rolling Sheet 400A Electrical Distribution Box

IP66 Steel Rolling Sheet 400A Electrical Distribution Box

  • IP66 Steel Rolling Sheet 400A Electrical Distribution Box
  • IP66 Steel Rolling Sheet 400A Electrical Distribution Box
  • IP66 Steel Rolling Sheet 400A Electrical Distribution Box
  • IP66 Steel Rolling Sheet 400A Electrical Distribution Box
IP66 Steel Rolling Sheet 400A Electrical Distribution Box
Product Details:
Place of Origin: China
Brand Name: Chint
Certification: CE,CCC
Model Number: XL-21, JXF, GGD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD20~USD200
Packaging Details: Standard export carton/crate wood box
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 300pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Color: White,gray,RAL 7035
Application: To Protect Circuit Breakers Installed In The Panel Box,Indoor Or Outdoor,Industrial Type: Distribution Box,Power Distribution System
Protection Level: IP54 Rated Voltage: 220/380V,120V/240V
Standard: IEC60439-3 Rated Current: 6A-400A
Function: Waterproof Distribution Box Certification: CE
Working Temperature: -40 To +80 Degrees Centigrade Name: Distribution Cabinet/Power Electric Meter Box
Mounting Type: Flush Or Surface
High Light:

ip66 Electrical Distribution Box

,

400A Electrical Distribution Box

,

IEC60439-3 electrical db box



Electrical Cable Contactor Power Supply Steel Enclosure Box



XL21 Chint Motor Control Center JXF Enclosure in Sheet Steel for Power Distribution or Water Pump Control Cabinet

Panel Building Services for Electrical Installation and Distribution.



General

Can set up transformer multi-loop outlet line, electric energy accurate measure special room, anti-theft electricity, reactive power automatic compensation, voltage and current monitoring, overload short circuit protection, low voltage lightning protection, leakage personal electric shock protection and so on multi-function in one body. Control the main switch for leakage and personal shock protection, and with reclosing function. ; small area, convenient to move; deep load center, short construction period, waste reduction and other advantages.



Outdoors integrated distribution cabinet series is suitable for AC 50 Hz, rated voltage up to 0.4 kV power transmission and distribution system. This series of product is a combination of automatic compensation and power distribution. And it is a innovative indoors and outdoors pressure distribution cabinet of electrical leakage protection, energy metering, over-current, over-pressure open phase protection. It has benefits of small volume, easy installation, low cost, electricity-stolen prevention, strong adaptability, resistance to aging, accurate rotor, no compensation error, etc. Therefore it is the ideal and preferred product for electric grid reformation.



The product is made of bending and welding of high quality stainless steel. Compared with other distribution boxes made of cold steel, its tensile ability, oxidation resistance, corrosion resistance has been greatly strengthened, and it extends the service life of the equipment. Novel design shows scientific innovation and achievements. On the other hand, V-type box is equipped with sealing rubber strip, which can prevent the dust, and it is fitted with floor at the same time. It can be installed electrical equipment. The open angle is greater than 90 degrees. It is adopted the new design: waterproof, anti-theft, anti-dust. And organic glass has been adopted to increase safety, easily installation and operation. Specifications, sizes can be customized according to customers' requests.

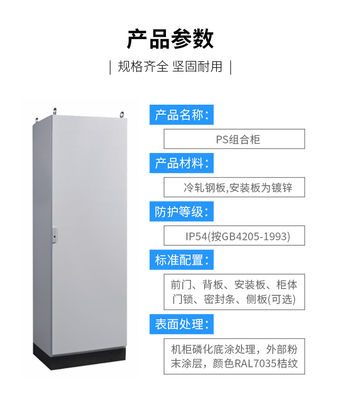

Technical Data



Power distribution Box(IP66)
Material:sus304
Protection degree: IP66
Thickness of the sheet steel:door:2.0mm ,panel:1.5mm/enclosure body
Customized:OEM/ODM
Power distribution Box(IP66)
Width(mm) 400 500 600 760 800
Height(mm) 400 500 600 760 800
Depth(mm) 210 250 300 350

IP66 Steel Rolling Sheet 400A Electrical Distribution Box 0IP66 Steel Rolling Sheet 400A Electrical Distribution Box 1IP66 Steel Rolling Sheet 400A Electrical Distribution Box 2IP66 Steel Rolling Sheet 400A Electrical Distribution Box 3IP66 Steel Rolling Sheet 400A Electrical Distribution Box 4IP66 Steel Rolling Sheet 400A Electrical Distribution Box 5IP66 Steel Rolling Sheet 400A Electrical Distribution Box 6IP66 Steel Rolling Sheet 400A Electrical Distribution Box 7
