| Place of Origin: | China |
| Brand Name: | Fenigal/None |
| Certification: | CE,CCC |
| Model Number: | WIP01 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | USD10~USD100 |
| Packaging Details: | Standard export carton |
| Delivery Time: | 5-8 working days or bulk order negotiate |
| Payment Terms: | T/T |
| Supply Ability: | 1,000pcs/month |
| Material: | ABS/PC | Color: | Grey White/Transparent Cover |
|---|---|---|---|
| Application: | Power Distributing | Type: | Distribution Box Electrical Boxes |
| Installation Type: | Surface Type/ Flush Type | Standard: | IEC60439-3 |
| Rated Voltage: | 220V-380V,220/110V | Rated Current: | 32,63A,100A |
| Frequency: | 50 HZ/60HZ | External Size: | 230*381*110mm |
| Way: | 5,8,12,15,18,24 | Working Temperature: | -40 To +80 Degrees Centigrade |
| High Light: | IP65 Outdoor Distribution Box,IEC60439-3 Outdoor Distribution Box,32A Outdoor Distribution Box |
||

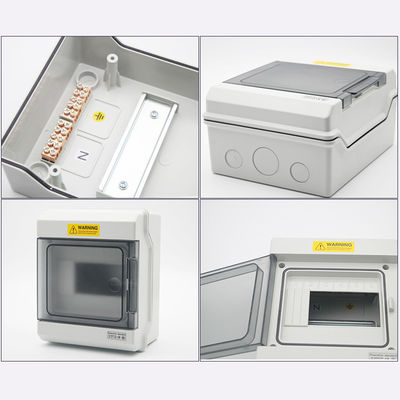

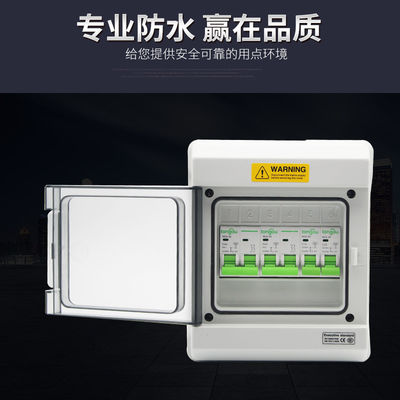

Features:
Waterproof distribution box made of high quality ABS+PC material, which can prevent burning, prevent water splashing, and ensure user safety Applicable circuit breakers:This distribution box is designed for 2-3 ways circuit breaker. They are also ideal for mounting and protecting process control sensors and switches. They are available with screws and hinge covers in both polycarbonate and ABS, suitable for the harsh industrial environment of electrical and electronic control equipment, shipbuilding, petrochemical industry, large factories, coastal factories, terminal water treatment facilities, all kinds of natural disaster prevention equipment.
Scope of application:
can be widely used, Mainly used in indoor environments such as kitchens and other indoor environment,can be widely used Flexible installation: The distribution box is made of plastic and its weight is very light. We can replace it for free.
When you use a water heater in the bathroom, will you feel uneasy, because the bathroom is very humid and the water is prone to splashing, Prone to electric shock. - You may choose to install a low-voltage air circuit breaker that automatically shuts off when a hazard occurs - But the installation of the circuit breaker requires a special slide rail, and there is no waterproof function, Waterproof Distribution Box can solve this problem perfectly, easy to install, and can be waterproof
Materials:
ABS+PC br / Type: 2-3 Ways br / Size: 5.1*3.7*2.6 Inch br / Weight: 306g br / br / Package Includes: 1 x Distribution Box (circuit breaker is NOT included) br / 1 x 80mm x 60mm Tape
| Color | Light Grey |
| Configuration | Without Knock-Outs |
| Material | ABS |
| Length | 7.9 in. (200mm) |
| Width | 5.9 in. (150mm) |
| Height | 3.9 in. (99.5mm) |
| Weight | 0.97 lbs (0.44kg) |
| Ingress Protection (EN 60529) | IP 65 |
| Impact Resistance (EN 62262) | IK 08 |
| Configuration | Smooth Wall |
| Cover Locking | Screw |
| Cover screws | ABS |
Tightening torque |
8.85 lbf⋅in (1N⋅m) |
| Type | Junction Box |
