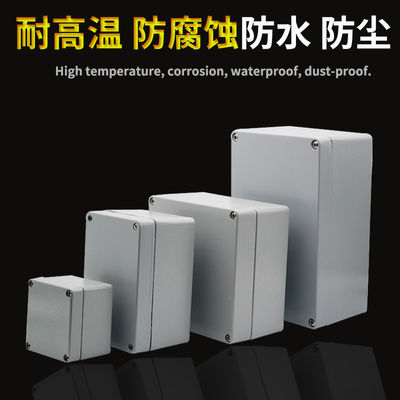

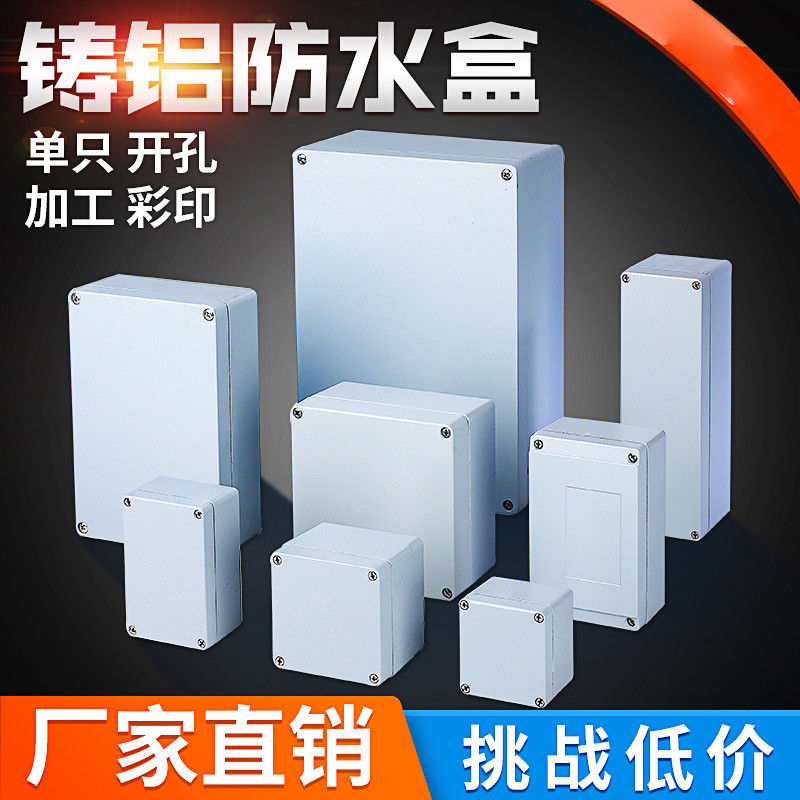

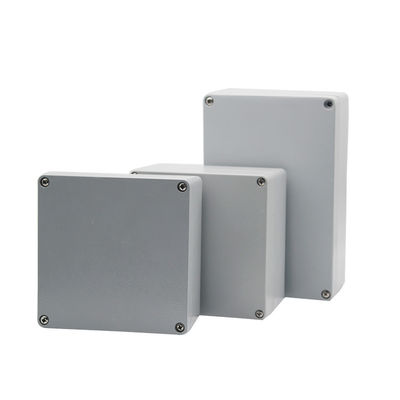

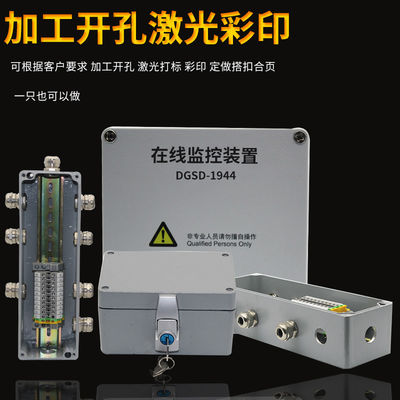

Aluminum Cast Outdoor Or Indoor Weatherproof Db Box

Aluminum Cast Outdoor Or Indoor Weatherproof Db Box

  • Aluminum Cast Outdoor Or Indoor Weatherproof Db Box
  • Aluminum Cast Outdoor Or Indoor Weatherproof Db Box
  • Aluminum Cast Outdoor Or Indoor Weatherproof Db Box
  • Aluminum Cast Outdoor Or Indoor Weatherproof Db Box
Aluminum Cast Outdoor Or Indoor Weatherproof Db Box
Product Details:
Place of Origin: China
Brand Name: Fenigal/None
Certification: CE,CCC
Model Number: WIP01
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD10~USD100
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T
Supply Ability: 1,000pcs/month
Contact Now
Detailed Product Description
Material: ABS/PC Color: Grey White/Transparent Cover
Application: Power Distributing Type: Distribution Box Electrical Boxes
Installation Type: Surface Type/ Flush Type Standard: IEC60439-3
Rated Voltage: 220V-380V,220/110V Rated Current: 32,63A,100A
Frequency: 50 HZ/60HZ External Size: 230*381*110mm
Way: 5,8,12,15,18,24 Working Temperature: -40 To +80 Degrees Centigrade
High Light:

Indoor Weatherproof Db Box


outdoor Weatherproof Db Box


Aluminum Cast Weatherproof Db Box

Aluminum cast weatherproof distribution wiring box outdoor or indoor use

  • Aluminum Junction Boxes General Electrical Metal Project Enclosure Waterproof IP66, Abrasion Resistant, Good Heat Dissipation for Outdoor
  • Electrical boxes are the workhorse of electrical repairs and remodels, serving as end or transition points for electrical cables. Outlets, light switches, ceiling lights, ceiling fans, and transition wires are just a few of the items that are installed in electrical boxes
  • Ultra-strong, fireproof, and incapable of being melted, aluminum metal boxes offer the greatest level of security for all electrical wiring applications
  • It is recommended that you wear gloves when working with metal boxes, Metal boxes can also be used with Romex or NM wiring if desired, though special precautions must be taken to ensure proper grounding
  • Also use metal boxes with interior exposed applications. Typically, electrical boxes are recessed in walls. But areas such as unfinished basements and mudrooms may not have a complete wall system that allows for the box to be enclosed by drywall. A typical installation in these cases involves attaching the exposed box directly to a masonry wall. Because the wires are also exposed, metal conduit is required

1.Wall mounted, enclosure
2.Receptacle strip, enclosure
3.Portable, enclosure
4.Portable, with feeder cable, enclosure


Model NO.
Application Range
Industrial Area
Shell Material
Plastic ABS PA
Shell Protection Grade
IP44 and IP67
ABS PA Plastic
Grey Orange Black Yellow
Protection Degree
IP44 and IP67
16A 32A
for Standard Size Is Available
Indoor / Outdoor
Transport Package
by Carton


Name Socket box
Rated insulation voltage AC400V(660V)
Rated operation voltage AC230/400V, DC440V
Rated frequency 50Hz
Protection class IP44, IP67
Single-loop output current 16A, 32A, 63A, 125A etc.
Single-loop output voltage 20-25V,40-50V,100-130V,200-250V,380-480V, 500-660V
Environment temperature -30 ℃ ~+40 ℃, indoor and outdoor
Sample free


Order No. Product Name Dimension(mm)
223415 Water-proof Electric Box 220*340*150
304016 Water-proof Electric Box 300*400*160
305216 Water-proof Electric Box 300*520*160
274616 Water-proof Electric Box 270*460*160
365418 Water-proof Electric Box 360*540*180
233316 Water-proof Electric Box 230*330*160
282815 Water-proof Electric Box 280*280*150
363616 Water-proof Electric Box 360*360*160
608022 Water-proof Electric Box 600*800*220



They are widely used in the machine, Petroleum Chemical Industry , Electricity,Electronics,railway,Construction Site,Airports,mine, post-mining land, water treatment plant and port,Pier,market,hotel.



Manufacture of CEE Industrial plugs and sockets with IEC60309-2 standard (CEE) and high quality with RoHS.

1.Poles: 2P+E, 3P+E, 3P+N+E;

2.Rated Voltage: 110V, 230V, 400V, 500V;

3.Rated Current: 16A, 32A, 63A, 125A;

4 Waterproof: IP44 or IP67;

5. Earth Contact Position: 3h, 6h, 9h

6.Feature: dust-proof,waterproof,Corrosion-Proof and heat-resistant,UV-stop

7.This Industrial Connector have soft-contact technique, and the cable penetration from top and buttom.

8. Various colors to choose from:Red, blue and black.


Aluminum Cast Outdoor Or Indoor Weatherproof Db Box 0Aluminum Cast Outdoor Or Indoor Weatherproof Db Box 1Aluminum Cast Outdoor Or Indoor Weatherproof Db Box 2Aluminum Cast Outdoor Or Indoor Weatherproof Db Box 3Aluminum Cast Outdoor Or Indoor Weatherproof Db Box 4Aluminum Cast Outdoor Or Indoor Weatherproof Db Box 5
