| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE,CCC |
| Model Number: | FMQ1-63 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Standard export carton |
| Delivery Time: | 5-8 working days bulk order negotiate |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000pcs/month |
| Max. Current: | 63A | Max. Voltage: | 1000V And Below |
|---|---|---|---|
| Pole: | 2P,3P,4P | Rated Voltage: | 230V/400V |
| Rated Current: | 6A 10A 16A 20A 25A 32A 40A 50A 63A | Product Name: | Dual Power Automatic Transfer Switch ATS |
| Frequency: | AC 50 Hz/60Hz | Operation Type: | Manual Operation,Auto&Manual |
| Standard: | IEC60947-6-1 And GB/T14048.11 | Arc-out Mode: | Magnetic Blow Breaker |
| Highlight: | Household Ats Power Switch,Dual Switching Ats Power Switch,63a 2p Ats Power Switch |
||

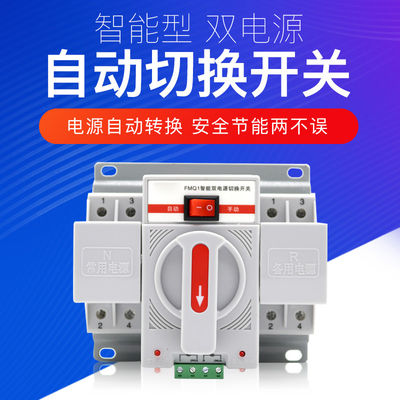

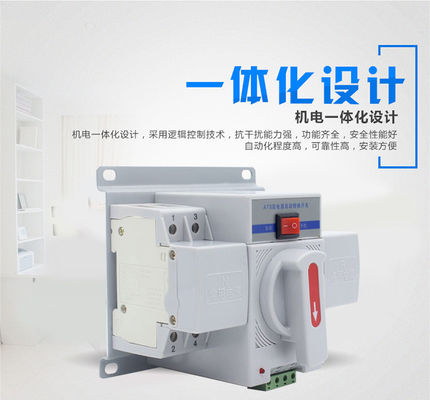

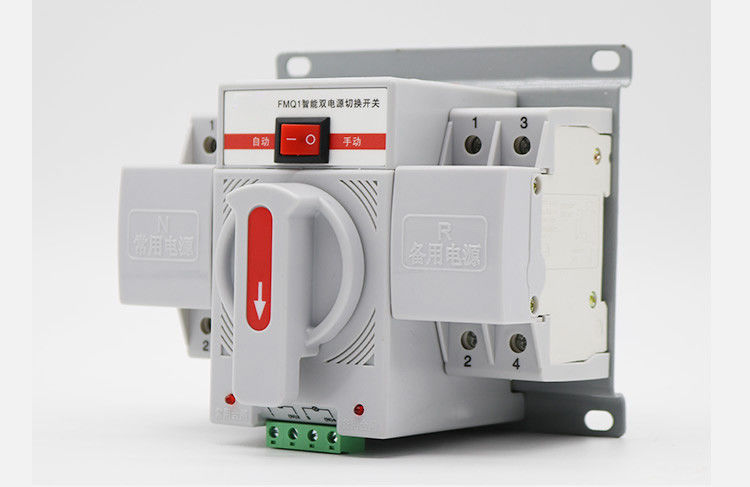

Dual-power automatic switching switch 63A2P dual-switching household power supply
General
FMQ1-63 is terminal type automatic transfer device. It's suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A. When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase),it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits.
The automatic transfer switch conforms to IEC60947-6-1 and GB/T14048.11
| Rated Current Ie A | 6,10,16,20,25,32,40 | 50, 63 |
| Electrical Appliances Class | CB | |
| Use Category | AC~33B | |
| Tripping Current | 5~10In (Type C), 10~15In (Type D), | |
| Rated voltage Ue | 220V (2P),380V (3P or 4P) | |
| Rated frequency | 50/60Hz | |
| Rated short circuit connecting ability Icm (Peak) | 9.18KA | 6.615KA |
| Rated short circuit breaking ability Icn (effective value) | 6KA | 4.5KA |
