| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE,CCC |
| Model Number: | FMQ1 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Standard export carton |
| Delivery Time: | 5-8 working days bulk order negotiate |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000pcs/month |
| Max. Current: | 63A 100A | Max. Voltage: | AC 400V |
|---|---|---|---|
| Pole: | 2P,3P,4P | Rated Voltage: | 230V/400V |
| Rated Current: | 16A 20A 25A 32A 40A 50A 63A 80A 100A | Product Name: | Dual Power Automatic Transfer Switch ATS |
| Operation Type: | Manual Operation,Auto&Manual | Standard: | IEC60947-6-1 |
| Frequency: | Manual 5000 Times | ||
| Highlight: | 63a single phase automatic transfer switch,single phase ATS Automatic Transfer Switch,2p ATS Automatic Transfer Switch |
||

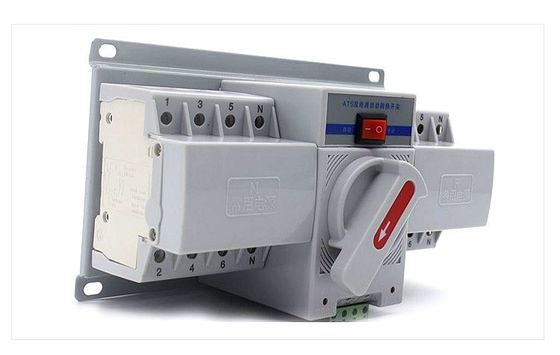

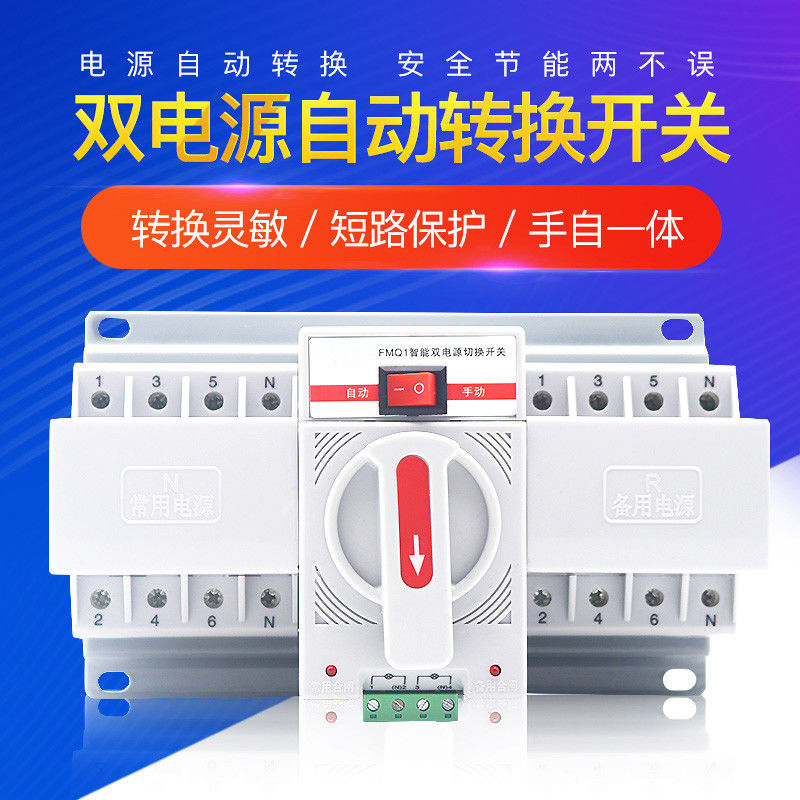

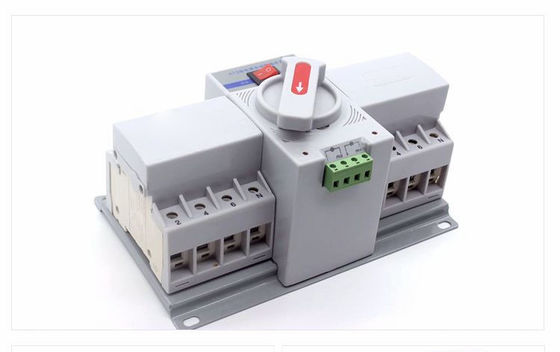

General

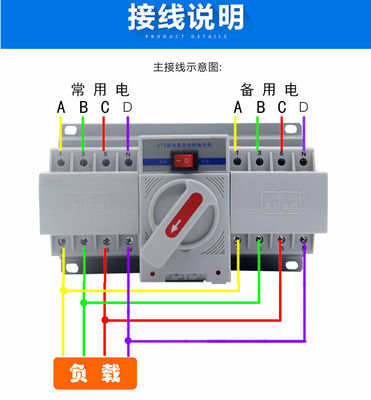

FMQ1 series automatic transfer switch is applicable to 3 phases 4 wires dual powergrid with AC 50Hz, rated voltage 400V and rated current up to 63A.
When a power goes wrong, it will automatic connect one or several load circuitsfrom this power to the other power automatically, to ensure normal power supply ofload circuits. And it keeps the original mini circuit breakers' overload and short circuitprotection functions.
The product is suitable for industrial, commercial, high-rise and civil residential areas.
Technical Data
| Original | FMQ1 |
| Rated operational current (Ie) | 16A 20A 25A 32A 40A 50A 63A 80A 100A |
| Rated operational voltage (Ue) | AC 400V |
| Rated frequency | 50Hz |
| Poles | 2P,3P, 4P |
| Rated short circuit breaking capacity (I | 6KA |
| Mechanical life | 5000 |
| Electrical life | 3000 |
| Sampling mode | Three-phase sampling |
| Structure type | Integrated |
| Product Keywords | automatic transfer switch for generator,automatic transfer switch ats model,automatic transfer switch ats 63a |
