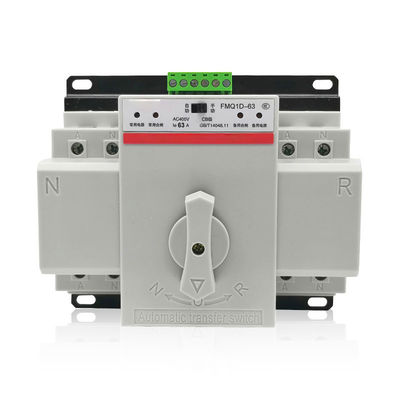

Dual Power Cb Class 2P 63A 220V ATS Automatic Transfer Switch

Dual Power Cb Class 2P 63A 220V ATS Automatic Transfer Switch

  • Dual Power Cb Class 2P 63A 220V ATS Automatic Transfer Switch
  • Dual Power Cb Class 2P 63A 220V ATS Automatic Transfer Switch
  • Dual Power Cb Class 2P 63A 220V ATS Automatic Transfer Switch
  • Dual Power Cb Class 2P 63A 220V ATS Automatic Transfer Switch
Dual Power Cb Class 2P 63A 220V ATS Automatic Transfer Switch
Product Details:
Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE,CCC
Model Number: FMQ1D-63
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs/month
Contact Now
Detailed Product Description
Pole: 2P 4P Rated Voltage: 1000V And Below
Rated Current: 10A-63A Product Name: Dual Power Automatic Transfer Switch ATS
Color: White Operation Type: Manual Operation,Auto&Manual
Standard: IEC60947-6-1 Power Supply: AC
High Light:

220V ATS Automatic Transfer Switch

,

63a ATS Automatic Transfer Switch

,

2p ATS Automatic Transfer Switch



General

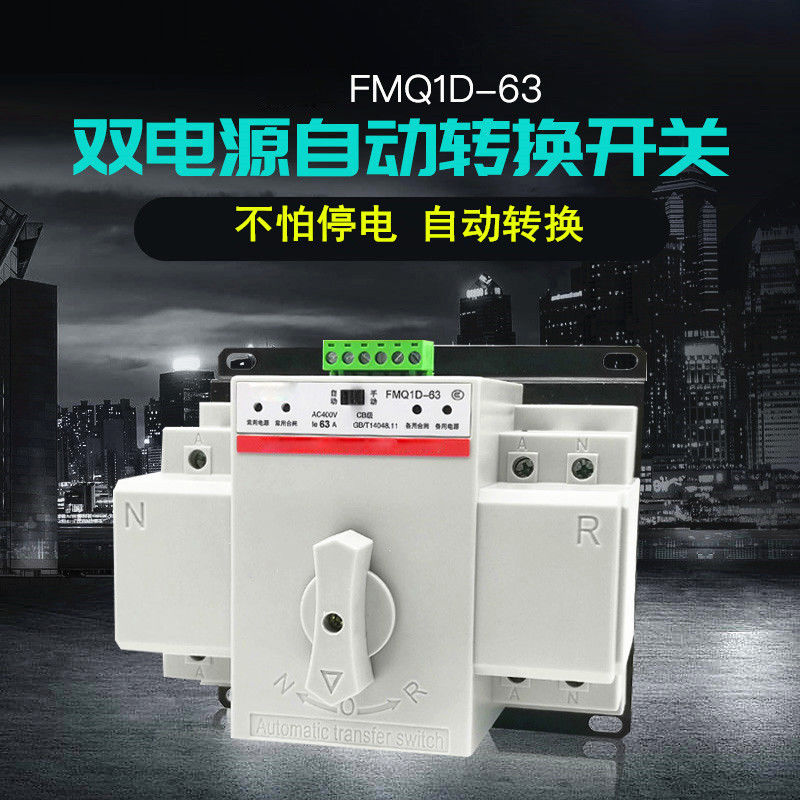

FMQ1D-63 series dual power automatic transfer switch is new developed micro household power transfer switch..

The switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in PZ30 power distribution box.

FMQ1D-63 series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternatting current rated 400V 63A. ATS is compact in structure, reliable in transfer, convenient in instabllation and maintenance, and has long lif expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually.



Technical Data
ITEM NO.
FMQ1D-63
Rated current Ie(A)
16A, 20A, 25A, 32A, 40A, 50A, 63A,100A
Installation
Din rail
Rated insulation voltage Ui (V)
AC690, 50HZ
Rated working voltage Ue (V)
AC400, 50HZ
Rated impulse withstand voltage (KV )
8KV
Poles
2P 3P 4P
Weight (KG)
1.7 2.1 2.6
Connecting and breaking
6.0Ie 1.05Ue cosØ=0.50±0.05, 50 times
Operating performance
2.0Ie 1.05Ue cosØ=0.80±0.05, 6000 times
Rated limited short-circuit current Iq
50KA
SCPD (FUSES )
RT16-00-63A
Control circuit
Rated supply voltage Us: AC220V, 50HZ.
Working condition:85% Us~110% Us
Ancillary circuit
Two isolated relays, each relay with 2 groups of passive
switch contact. Contact capacity: AC220 50Hz, Ie=5A
Switching time
<50ms
Action time
<50ms
Dual Power Cb Class 2P 63A 220V ATS Automatic Transfer Switch 0Dual Power Cb Class 2P 63A 220V ATS Automatic Transfer Switch 1
