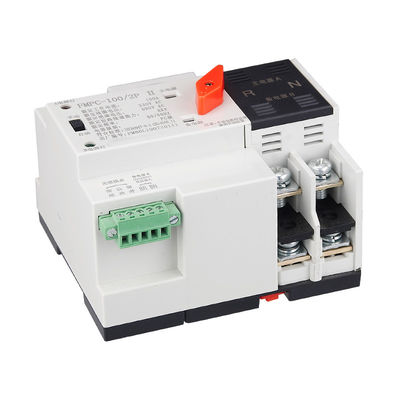

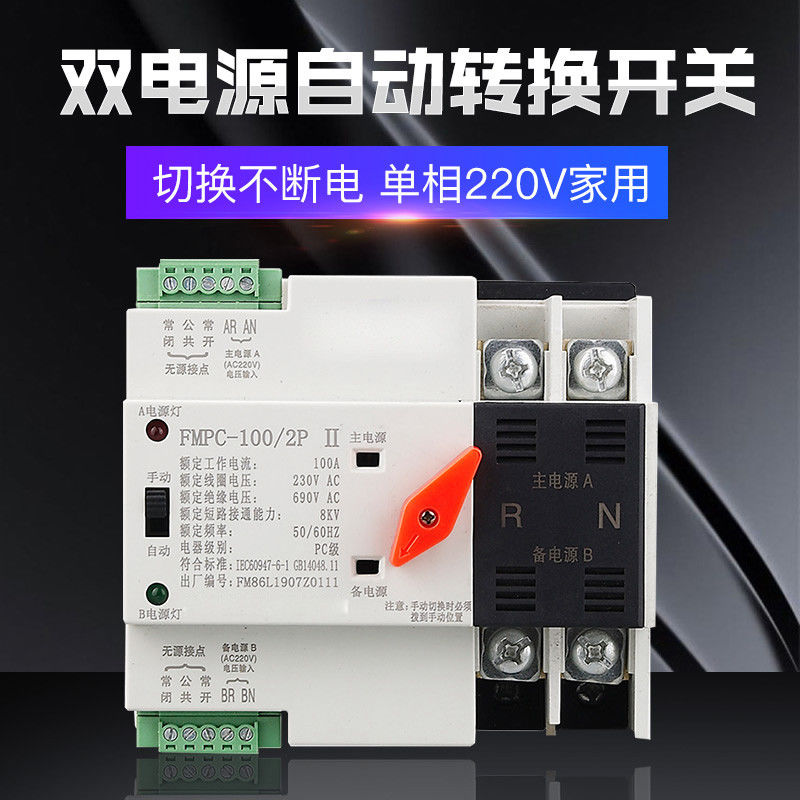

400V Din Rail 2P 63A 100A 125A Single Phase Ats Switch
Product Details:
Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE,CCC
Model Number: FMPC-100/2P
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs/month
Contact Now

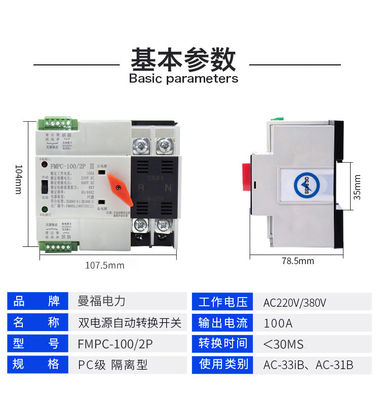

Detailed Product Description
Max. Current: 100A Max. Voltage: 400V
Pole: 2P 3P 4P Rated Voltage: 220V/380400V
Product Name: Dual Power Automatic Transfer Switch ATS Color: White
Frequency: AC 50 Hz/60Hz Standard: CE/CCC
Switch Time: <30ms
High Light:

125A Single Phase Ats Switch

,

100A Single Phase Ats Switch

,

63A Single Phase Ats Switch





General

FMPC series dual power automatic transfer switch is new developed professional circuit / wire protection equipment.With this protection device, when the household circuit is short-circuited, the automatic disconnection function can be quickly provided.The contactor is sensitive and the carrying capacity is stronger. The outer casing and parts are made of high flame retardant, impact resistant plastic and have a long service life.
Uses: Mainly used for housing and similar architectural lighting, wire and equipment overload and short circuit protection ,Can be widely used in electric power, post and telecommunications, transportation, mining and other fields.



Rated Current(Ith) 20A 40A 60A 80A 100A 125A 160A 250A 400A 630A 800A 1000A 1250A 1600A
Rated insulation voltage(Ui) 750V 1000V
Rated concussion withstand voltage(Uimp) 8KV 12KV
Rated working voltage(Ue) AC440V
Rated working current(Ie) AC-31A 20 40 63 80 100 125 160 250 400 630 800 1000 1250 1600
AC-35A 20 40 63 80 100 125 160 250 400 630 800 1000 1250 1600
AC-33A 20 40 63 80 100 125 160 250 400 630 800 1000 1250 1600
Rated connection capacity 10le
Rated breaking capacity 8le
Rated limited short-circuit current(ls) 50kA 70kA 100kA 120kA
Rated short-time withstand current(ls) 7kA 9kA 13kA 26kA 50kA
Transfer I-II or II-I 0.45s 0.6s 1.2s






400V Din Rail 2P 63A 100A 125A Single Phase Ats Switch 0400V Din Rail 2P 63A 100A 125A Single Phase Ats Switch 1
