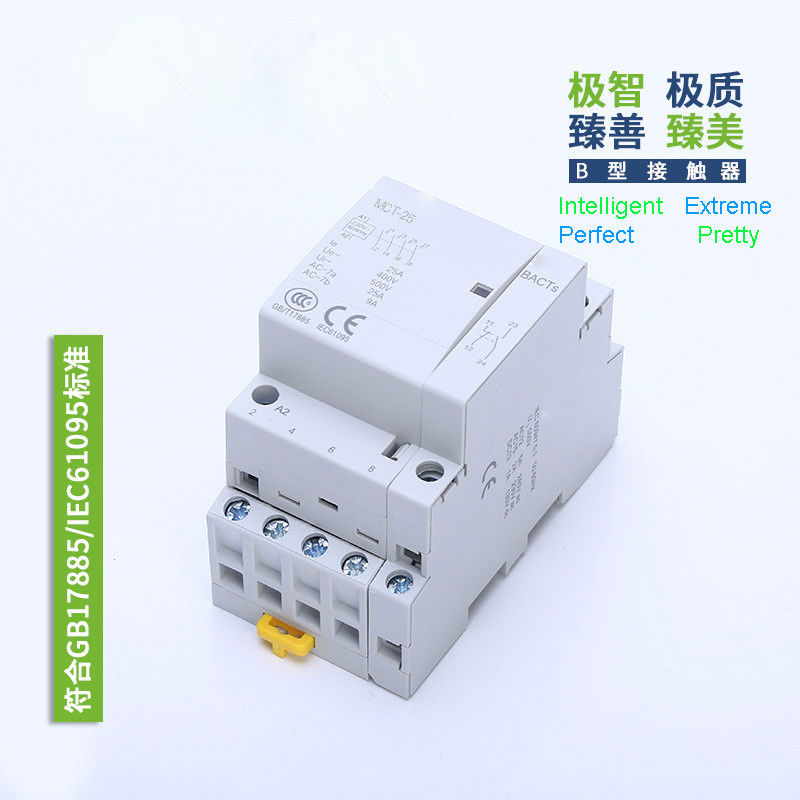

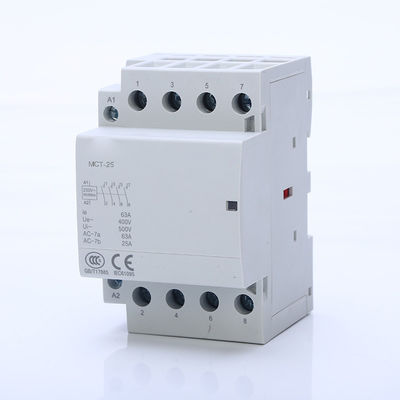

IEC Flame Retardant MCT-25 Contactor Modular AC 230V 2P 3P 4P
Product Details
| Product Name: | AC/DC Contactor | Type: | Contactor |
|---|---|---|---|
| Rated Frequency: | 50/60Hz | Rated Current: | 25A,32A,40A,63A,100A |
| Voltage: | 2p: 230V/4p:400V | Standard: | IEC61095 |
| Model NO.: | MCT 4P | ||
| Highlight |
iec contactor modular,Flame Retardant contactor modular,2P contactor modular |
||
Product Description
General Introduction
The breadth of the MCT contactor range satisfies the most application cases. MCT contactors can be combined with auxiliary control, protection and indication functions. The contactors are produced according to IEC61095.
MCT Modular Contactor (also known as analog contactors and architectural contactors) are mainly used in power systems with AC 50Hz/60Hz, rated working voltage up to 400V and rated working current up to 100A. They are used as remote switches and control circuits in AC-1 and AC-7a (non-inductive or low-inductive loads, resistance furnaces, household appliances and similar low-inductive loads). It can also be used to control the load of household motor. Modular Contactors cant't be used in break short-circuit currents, so appropriate short-circuit protective appliances (such as small circuit breakers) should be selected when using them. It meets the standard IEC 61095. MCT contactor can expand auxiliary control, protection and indication functions. MCT Modular Contactor is a kind of control device used for long distance connection and disconnection of inductionless or low inductive load, resistance furnace, household appliances and similar low inductive load, household motor, etc. MCT Modular Contactor are mainly used in homes, hotels, apartments, office buildings, public buildings, shopping malls, gymnasiums and other places to achieve automatic control functions.
MCT contactors can be used to remote control applications in alternative networks:
lighting, heating, ventilation, roller blinds, sanitary hot water.
mechanical ventilation systems, etc.
Product characteristics
(1) The analog and digital control device has novel structure and compact volume.
(2) Installation orbiting, dimension modularization, safe use, can be combined with small circuit breakers installed in the control lighting box.

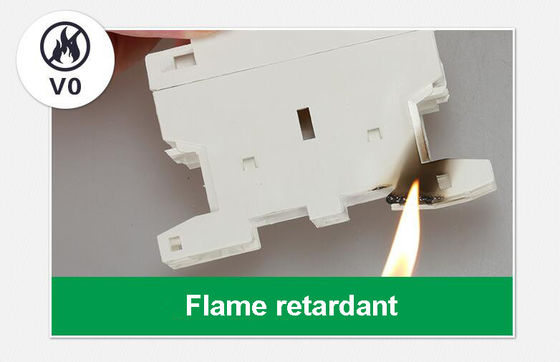

(3)The use of high-quality insulation materials greatly improves the safety.
(4) Beautiful appearance with working status indicator window.
(5)No noise, suitable for hotels, hospitals and other places.
