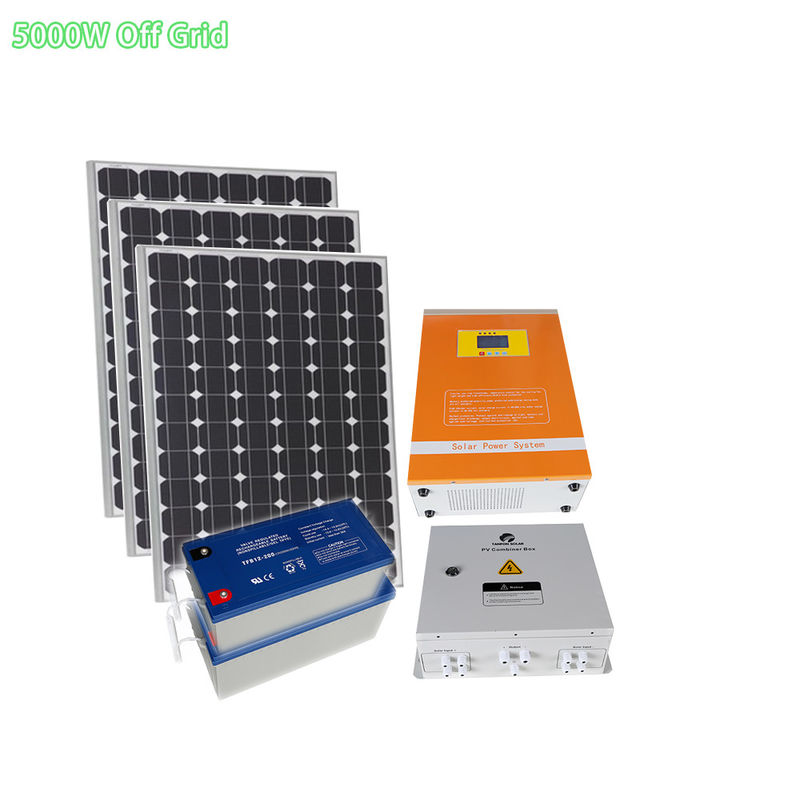

Home 4000W 5000W Inverter Pv System With CE IEC Grid
Product Details
| Certification: | ISO, CE | Application: | Home/Building/Apartment/Villa/Farm |
|---|---|---|---|
| System Name: | 5000w PV Solar System | Output Voltage: | 230V/400V |
| Output Type: | Single Phase | AC Nominal Voltage: | 220V,230V,240V; 180Vac - 280Vac |
| AC Grid Frequency: | 50Hz/60Hz ±5Hz | Output Frequency: | 50Hz/60Hz ±5Hz |
| Highlight |
4000w inverter pv system,5000w inverter pv system,IEC Grid inverter pv system |
||
Product Description
The Applications of the of grid system :
5000w Solar System is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters including on-grid, off-grid and storage inverters, and user side smart energy management solutions as well. The power capacity of system on-grid inverters ranges from 1 kW to 100 kW, meanwhile its off-grid and storage inverters cover a power range from 1 kW to 630 kW. Inverters are extensively used worldwide for applications in residential, commercial, utility-scale scenarios as well as other storage power station projects.
Solar power is an environmental friendly safe energy with abundant supply. Installing a on grid residential solar power system is a good way to meet the rising renewable energy portfolio standards.
With various level of governments' financial support for solar power system installation and feed -in-tariff for purchasing solar power feed into the grid, solar power system investment has become a risk-free financial product with a very attractive rate of return.
On Grid system is connecting to the national grid net directly. No battery backup.
On Grid system can only use at the country where allowed people connecting to the utility grid net.

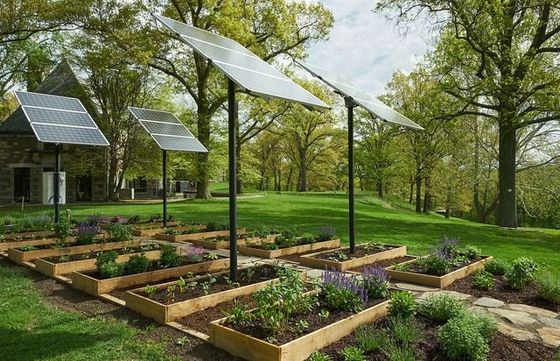

It can be applied to the villa, household, tourist resorts, prairie areas, remote mountain village, no power supply areas, farms, villages, island, highway and any regions to generate electricity.
It can load household appliances like TV, Air Conditioner, refrigerator, lighting, washing machine, etc.
Technical Data
|
Input Data (DC)
|
|||||
|
Max. recommended PV power
|
3900W
|
4680W
|
5460W
|
5980W
|
6500W
|
| (for module STC) | |||||
|
Max. DC voltage
|
500V
|
550V
|
550V
|
550V
|
550V
|
|
Start voltage
|
100V
|
100V
|
100V
|
100V
|
100V
|
|
PV voltage range
|
70V-550V
|
70V-550V
|
70V-550V
|
70V-550V
|
70V-550V
|
|
MPP work voltage range/
|
80V-550V /360V
|
80V-550V /360V
|
80V-550V /360V
|
80V-550V /360V
|
80V-550V /360V
|
| nominal voltage | |||||
|
Full load dc voltage range
|
160V-450V
|
190V-500V
|
150V-500V
|
160V-500V
|
175V-500V
|
|
Max. input current of tracker A/
|
10A/10A
|
10A/10A
|
15A/15A
|
15A/15A
|
15A/15A
|
| tracker B | |||||
|
Max. input current per string of
|
10A/10A
|
10A/10A
|
15A/15A
|
15A/15A
|
15A/15A
|
| tracker A/tracker B | |||||
|
Number of independent MPP
|
2/1
|
2/1
|
2/1
|
2/1
|
2/1
|
| trackers / strings per MPP tracker | |||||
|
Output (AC)
|
|||||
|
Rated AC output power
|
3000W
|
3600W
|
4200W
|
4600W
|
5000W
|
|
Max. AC apparent power
|
3000VA
|
3600VA
|
4200VA
|
4600VA
|
5000VA
|
|
Max. output current
|
13.6A
|
16.3A
|
19A
|
20.9A
|
22.7A
|
|
AC nominal voltage
|
220V/230V/240V;180Vac - 280Vac
|
220V/230V/240V
|
220V/230V/240V
|
220V/230V/240V
|
220V/230V/240V
|
|
AC grid frequency
|
50Hz,60Hz /±5Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
|
Adjustable power factor
|
0.8leading...0.95lagging
|
0.8leading...0.8lagging
|
0.8leading...0.8lagging
|
0.8leading...0.8lagging
|
0.8leading...0.8lagging
|
|
THDi
|
<3%
|
<3%
|
<3%
|
<3%
|
<3%
|
|
AC connection
|
Single phase
|
Single phase
|
Single phase
|
Single phase
|
Single phase
|
|
Certificates and Approvals
|
CE, IEC62109, G83, VDE0126-1-1, UTE C 15-712,G59, AS4777, AS/NZS 3100, CEI0-21, VDE-AR-N4105, EN50438, CQC, IEC 61683, IEC 60068,
|
||||
| IEC 61727, IEC 62116, INMETRO | |||||
