1kw Off Grid Pv 10000w Solar Photovoltaic Power System Single Phase
Product Details
| Product Name: | 10000 Watt PV Solar System | Solar Panel Type: | Grade A Polycrystalline |
|---|---|---|---|
| Output Voltage (V): | 230/400V | Inverter: | Growatt Off-grid Inverter |
| Panel Power: | 8400W | Output Frequency: | 50/60HZ |
| Load Power (W): | 10kw | Output Voltage: | 230V |
| Battery: | Lead Acid/Lithium Battery | ||
| Highlight |
1kw solar photovoltaic power system,solar photovoltaic power system 1kw,10000w solar photovoltaic power system |
||
Product Description
The Applications of the off grid system :
Solar power is an environmental friendly safe energy with abundant supply. Installing a on grid residential solar power system is a good way to meet the rising renewable energy portfolio standards.
With various level of governments' financial support for solar power system installation and feed -in-tariff for purchasing solar power feed into the grid, solar power system investment has become a risk-free financial product with a very attractive rate of return.

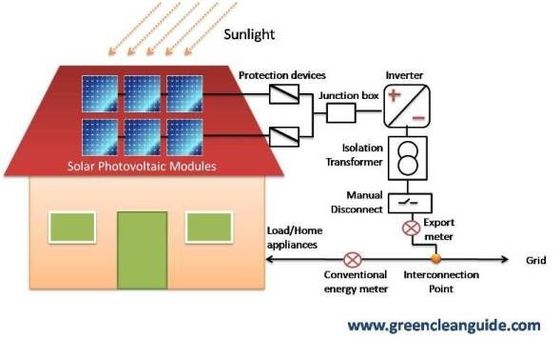

On Grid system is connecting to the national grid net directly. No battery backup.
On Grid system can only use at the country where allowed people connecting to the utility grid net.
It can be applied to the villa, household, tourist resorts, prairie areas, remote mountain village, no power supply areas, farms, villages, island, highway and any regions to generate electricity.
It can load household appliances like TV, Air Conditioner, refrigerator, lighting, washing machine, etc.
Protection functions: Multiple protections(low-voltage/over-voltage/over-load/short-circuit/overheat protection, self-recovery)
1.Off-Grid Solar Power System is composed of solar panels, solar inverter, battery bank, solar panel mounting racks, and other accessories required for a complete system.
2.This solar energy generating system is mainly used in power shortage, power instability, and no power areas.
3.It's featured with high-efficiency, easy-installation, economic and environment-friendly, etc.
4. With UPS and AVR voltage stabilizing function
5.Auto-switch, self-recovery and unattended operation.
A.The system can provide electricity produced by solar energy to loads directly.
B.It can auotmatically select the solar energy or utility power to charge the battery according to the state of the sunlight and battery voltage.
C.The systems can automatically identify the state of day and night, and interactive switches between AC mode and inverting mode.
Technical Data
|
No.
|
Component Name
|
Quan.
|
Unit
|
Model
|
Warranty
|
|
1
|
PV Module
|
30
|
pcs
|
280Poly-60
|
10 years and 25years
|
|
2
|
mounting structure,clamp,Screws
|
1
|
lot
|
Galvanized Steel or Alluminum Alloy
|
10 years
|
|
3
|
DC combiner box 5in1out
|
2
|
set
|
500V50A
|
2 years
|
|
4
|
OFF-Grid Inverter, 230VAC/50HZ
|
2
|
set
|
SPF5K
|
2 years
|
|
5
|
Battery and battery structure -30KWH,DOD 70%
|
24
|
set
|
2V900AH
|
2 years
|
|
6
|
PV Cable-Module to DC Combiner
|
400
|
m
|
1x4mm2
|
3 years
|
|
7
|
PV Cable-DC Combiner to Inverter
|
20
|
m
|
YJV 2x10mm2
|
3 years
|
|
8
|
Battery Cable-Inverter to Battery Box
|
20
|
m
|
BV/RVV1*25mm2
|
3 years
|
|
9
|
Battery Cable-Battery Box to Battery
|
30
|
m
|
BV/RVV1*50mm2
|
3 years
|
|
10
|
Battery Box (Breaker, SPD)
|
1
|
set
|
2in1out
|
2 years
|
|
11
|
AC Combiner Output Box, 2in 1 output
|
1
|
set
|
230V,50HZ, Breaker
|
3 years
|
|
12
|
AC Cables-Inverter to AC Combiner Output Box
|
10
|
m
|
YJV 3*4mm2
|
2 years
|
|
13
|
MC4 Connector
|
15
|
pair
|
MC4 Compatiable
|
3 years
|
|
14
|
PV TOOLS
|
1
|
set
|
|
|
|
According calculated based on an average daily sunshine time of 5 hours,The panel will generate 38kwh/day,The battery can storage 42kwh.
|
|||||
