Wuxi Fenigal Science & Technology Co., Ltd
Manufacturer and Supplier for Electrical & Lighting Products
|Place of Origin:||China|
|Model Number:||3000 watt PV Solar System|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||Standard export carton|
|Delivery Time:||5-8 working days bulk order negotiate|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||depend on quantity|
|System Name:||3000w PV Solar System||System Voltage:||DC 48V|
|Watt Options:||3000w/5000w/6000w/8000w/10000w||Inverter:||3KW,built In Solar Controller|
|Solar Panel Type:||Monocrystalline Silicon||Controller Type:||Off-Grid|
|Output Frequency:||50 / 60 HZ||Output Voltage (V):||DC5V/12V|
apartment solar panels and inverter system,
3000w solar panels and inverter system,
solar panels and inverter system 3000w
The Applications of the of grid system :
A photovoltaic system, also PV system or solar power system, is a power system designed to supply usable solar power by means of photovoltaics. It consists of an arrangement of several components, including solar panels to absorb and convert sunlight into electricity, a solar inverter to convert the output from direct to alternating current, as well as mounting, cabling, and other electrical accessories to set up a working system. It may also use a solar tracking system to improve the system's overall performance and include an integrated battery solution, as prices for storage devices are expected to decline. Strictly speaking, a solar array only encompasses the ensemble of solar panels, the visible part of the PV system, and does not include all the other hardware, often summarized as balance of system (BOS).
Operating silently and without any moving parts or environmental emissions, PV systems have developed from being niche market applications into a mature technology used for mainstream electricity generation. A rooftop system recoups the invested energy for its manufacturing and installation within 0.7 to 2 years and produces about 95 percent of net clean renewable energy over a 30-year service lifetime.
With various level of governments' financial support for solar power system installation and feed -in-tariff for purchasing solar power feed into the grid, solar power system investment has become a risk-free financial product with a very attractive rate of return.
On Grid system is connecting to the national grid net directly. No battery backup.
On Grid system can only use at the country where allowed people connecting to the utility grid net.
It can be applied to the villa, household, tourist resorts, prairie areas, remote mountain village, no power supply areas, farms, villages, island, highway and any regions to generate electricity.
It can load household appliances like TV, Air Conditioner, refrigerator, lighting, washing machine, etc.
|Fenigal Off grid solar power system- SP3KW|
|System||Solar panel rated output power: 3000W|
|Basic Information||Suitable for daily power consumption : >18KWH||SP-3kw|
|Allowable max loads power : 3KW(=4.2KVA)|
|Solar panel||FS300W mono solar panel(poly optional)||QTY|
|Vmp:37.57V Voc:46.34V Imp 8.78A||10pcs|
|Size : 1956*992*40mm||Connection|
|(Mono) ( poly)||25 years life time (CE TUV)|
|Coated steel Glass:3.2mm Tem pered||TANFON advantage:|
|Terminal block:IP65 with MC4 connector||Training team and installation service|
|Efficiency performance :25 years 80 % 20 year 85% 10 years 90%|
|Connect way:each 2 pcs in series|
|Simplify wiring between PV array and controller. Prevent hot spot effect||1pc|
|thunderstorm& surge protection|

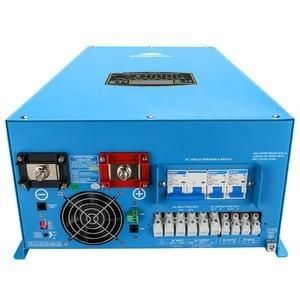

|Hybrid solar Inverter||Wall type Inverter power:3kw/48V||QTY|
|MPPT Controller model:48v/60A||1pc|
|AC charger :10-15A|
|100% USA brand MOS materials|
|Double protection, easy after sales service|
|full sealed Solar power gel battery,||4pcs|
|Service life:6-8 years ,(free one for service)|
|Connect way: 4pcs battery in series is each string.|
|panel rack||Slope Rooftop or Flat rooftop||QTY|
|wind load:55m/s,snow load:1.5kn/m2||1set|
|structure:Anodized Aluminum+stainless steel, Angle adjustable|
|(other type of rack can be customized as per client's requirement )|
|Cables||1) 3pcs 16mm2*35CM battery cable||QTY|
|2pcs 16mm2*2M battery cable||1set|
|2)4mm2 PV cable 100M|
|3)terminals and MC4+1P63A Battery switch|
Contact Person: Anderson Du
