The Applications of the of grid system :
Complete Off grid tied Solar Power Generator/Solar Home Power System,SNAT would offer the system 300W to 50KW with good quality and fast transportation.Below SNAT Off grid solar home power system SNT-S 8000W only for reference,other type of systems can be customized as per client' s requirement.
For solar system mostly use for household power supply, have main charger when non-sunshine. very useful system. Pure sine wave output, can take all inductive loads. Product sales to (France,USA,Canada,Pakistan,Indonesia,UAE,Bangladesh,Philippines,Greece,Iran,Kuwait,Iraq, Bulgaria,Romania, South Africa ect)

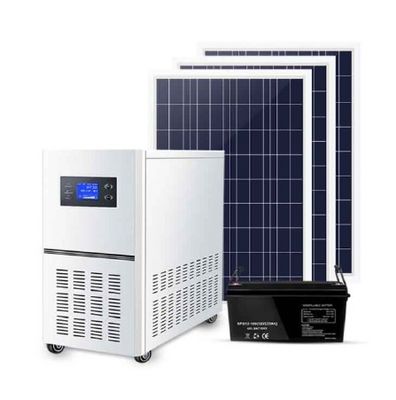

Solar off grid system:solar panel+hybird inverter(controller ,inverter)+battery(other parts like PV array combiner,battery rack,solar bracket,cable can optional)
System Range of application:
1,Living house and home building;
2.Office building ,factory and warehouse
3.Shopping mall,venue,stadium and so on
4.Power station,field operation and some huge engineer construction,ect……
Solar power is an environmental friendly safe energy with abundant supply. Installing a on grid residential solar power system is a good way to meet the rising renewable energy portfolio standards.
With various level of governments' financial support for solar power system installation and feed -in-tariff for purchasing solar power feed into the grid, solar power system investment has become a risk-free financial product with a very attractive rate of return.
On Grid system is connecting to the national grid net directly. No battery backup.
Technical Data
| Off grid solar power system- SP8KW |
| System |
Solar panel rated output power: 8400W |
|
| Basic Information |
Suitable for daily power consumption : >50.4KWH |
|
| |
Allowable max loads power : 8KW(=11.4KVA) |
SP-8kw |
| |
|
|
| |
|
Full set: |
| |
|
Total volume:3.6CBM |
| |
|
Total weight:1310KG |
| Solar panel |
FS350W mono solar panel(poly optional) |
QTY |
|
| |
Vmp:38.39V Voc:47.13V Imp 9.37A |
24pcs |
|
| (Mono) ( poly) |
Size : 1956*992*40mm |
|
|
| |
25 years life time (CE TUV) |
|
|
| |
Coated steel Glass:3.2mm Tem pered |
|
|
| |
Efficiency performance :25 years 80 % 20 year 85% 10 years 90% |
|
advantage: |
| |
Connect way:each 4 pcs in series |
|
Training team and installation service |
| PV Array Combiner |
Model:H6T-96v Multiple PV strings inputs |
QTY |
|
| and controller, Prevent hot spot effect |
1pc |
|
| Reliable thunderstorm& surge protection |
|
|
| Product Size:400*425*145mm |
|
|
| Solar Controller |
MPPT controller model:96V/60A |
QTY |
|
| Charging efficiency; 90%-95%, |
1pc |
|
| charging mode, intelligent control., |
|
|
| various protection functions |
|
|
| Pure sine wave Inverter |
Inverter:8KW96VDC |
QTY |
|
| 110V/120V/220V/230V/240VAC output, |
1pc |
|
| City power and generator charger build in Overload, overcharge, over-discharge protection |
|
|
| Fuji brand IGBT material |
|
|
| Gel Battery |
Capacity:12V/150AH |
QTY |
|
| full sealed Solar power gel battery, |
16pcs |
|
| Service life:6-8 years , |
|
|
| Size:483*170*219mm |
|
|
| Connect way: 8pcs battery in series is each string, |
|
|
| 2 strings connect to solar hybrid inverter |
|
|
| panel rack |
Slope Rooftop or Flat rooftop |
QTY |
|
| wind load:55m/s,snow load:1.5kn/m2 |
1set |
|
| structure:Anodized Aluminum+stainless steel, Angle adjustable |
|
|
| (other type of rack can be customized as per client's requirement ) |
|
|
| Cables |
1) 14pcs 16mm2*35CM battery cable |
QTY |
|
| 4pcs 16mm2*1M battery cable |
1set |
|
| 2)4mm2 PV cable 200M |
|
|
| 3)terminals and MC4+2P63A Battery switch |
|
|
