2000w 3000w Inverter 72H Grid Connected Solar Pv System
Product Details
| Application: | Home/Building/Industry/Commercial | System Name: | PV Solar System |
|---|---|---|---|
| Solar Power (W): | 2KW 3KW Solar Power System | Work Time (h): | Solar Power System 72H |
| Solar Panel System: | Mono Or Poly | Power: | Optional |
| Mounting Type: | Ground Mounting, Roof Mounting | Certification: | CE |
| Highlight |
2000w grid connected solar pv system,3000w grid connected solar pv system,72H grid connected solar pv system |
||
Product Description
The Applications of the of grid system :
Off Grid system can only use at the country where allowed people connecting to the utility grid net.
It can be applied to the villa, household, tourist resorts, prairie areas, remote mountain village, no power supply areas, farms, villages, island, highway and any regions to generate electricity.
It can load household appliances like TV, Air Conditioner, refrigerator, lighting, washing machine, etc.

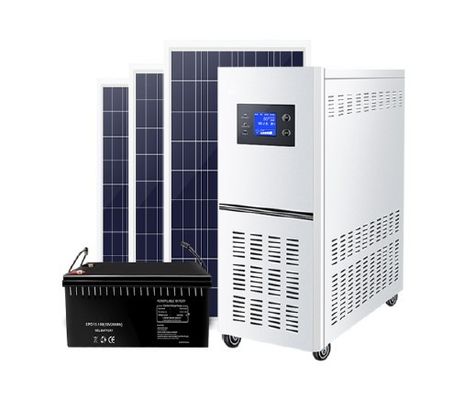

1.Off-Grid Solar Power System is composed of solar panels, controller, inverter, battery bank, solar panel mounting racks, and other accessories required for a complete system.
2.This solar energy generating is mainly used for application with relatively-small power consumption, and the areas without grid-power network.
3.It's featured with high-efficiency, easy-installation, economic and environment-friendly, etc.
4.Auto-switch, self-recovery and unattended operation.
Technical Data
| Input Data (DC) | |||||
| Max. recommended PV power | 3900W | 4680W | 5460W | 5980W | 6500W |
| (for module STC) | |||||
| Max. DC voltage |
500V
|
550V | 550V | 550V | 550V |
| Start voltage | 100V | 100V | 100V | 100V | 100V |
| PV voltage range | 70V-550V | 70V-550V | 70V-550V | 70V-550V | 70V-550V |
| MPP work voltage range/ | 80V-550V /360V | 80V-550V /360V | 80V-550V /360V | 80V-550V /360V | 80V-550V /360V |
| nominal voltage | |||||
| Full load dc voltage range | 160V-450V | 190V-500V | 150V-500V | 160V-500V | 175V-500V |
| Max. input current of tracker A/ | 10A/10A | 10A/10A | 15A/15A | 15A/15A | 15A/15A |
| tracker B | |||||
| Max. input current per string of | 10A/10A | 10A/10A | 15A/15A | 15A/15A | 15A/15A |
| tracker A/tracker B | |||||
| Rated AC output power | 3000W | 3600W | 4200W | 4600W | 5000W |
| Max. AC apparent power | 3000VA | 3600VA | 4200VA | 4600VA | 5000VA |
| AC nominal voltage | 220V/230V/240V;180Vac - 280Vac | 220V/230V/240V | 220V/230V/240V | 220V/230V/240V | 220V/230V/240V |
| AC grid frequency | 50Hz,60Hz /±5Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Adjustable power factor | 0.8leading...0.95lagging | 0.8leading...0.8lagging | 0.8leading...0.8lagging | 0.8leading...0.8lagging | 0.8leading...0.8lagging |
| THDi | <3% | <3% | <3% | <3% | <3% |
| AC connection | Single phase | Single phase | Single phase | Single phase | Single phase |
Product Highlights
The Applications of the of grid system : Off Grid system can only use at the country where allowed people connecting to the utility grid net. It can be applied to the villa, household, tourist resorts, prairie areas, remote mountain village, no power supply areas, farms, villages, island, highway ...
