50.6kwh Parking Area 8000w Off Grid Solar Pv System
Product Details
| Application: | Parking Lot/Parking Area/Commercial | System Name: | 8000w PV Solar System |
|---|---|---|---|
| Output Voltage: | 110V-240V Optional | Watt Options: | 8000w |
| System: | Off Grid | Suitable For Daily Power Consumption: | >50.6kwh |
| Max Power: | Inverter Power *120% | Allowable Max Loads Power: | 8kw(=8.5kVA) |
| Highlight |
8000w off grid solar pv system,off grid solar pv system 8000w,50.6kwh off grid solar pv system |
||
Product Description
The Applications of the of grid system :
Complete Off grid tied Solar Power Generator/Solar Home Power System,SNAT would offer the system 300W to 50KW with good quality and fast transportation.Below SNAT Off grid solar home power system SNT-S 8000W only for reference,other type of systems can be customized as per client' s requirement.
For solar system mostly use for household power supply, have main charger when non-sunshine. very useful system. Pure sine wave output, can take all inductive loads. Product sales to (France,USA,Canada,Pakistan,Indonesia,UAE,Bangladesh,Philippines,Greece,Iran,Kuwait,Iraq, Bulgaria,Romania, South Africa ect)

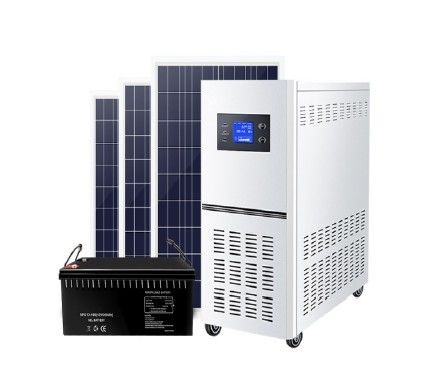

Solar off grid system:solar panel+hybird inverter(controller ,inverter)+battery(other parts like PV array combiner,battery rack,solar bracket,cable can optional)
System Range of application:

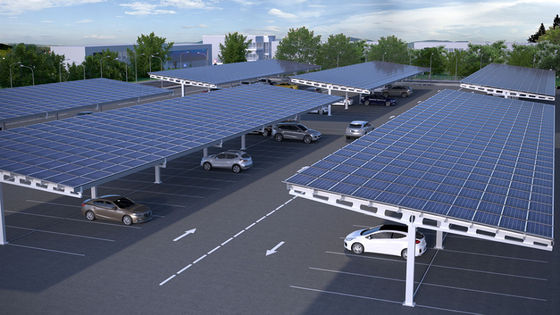

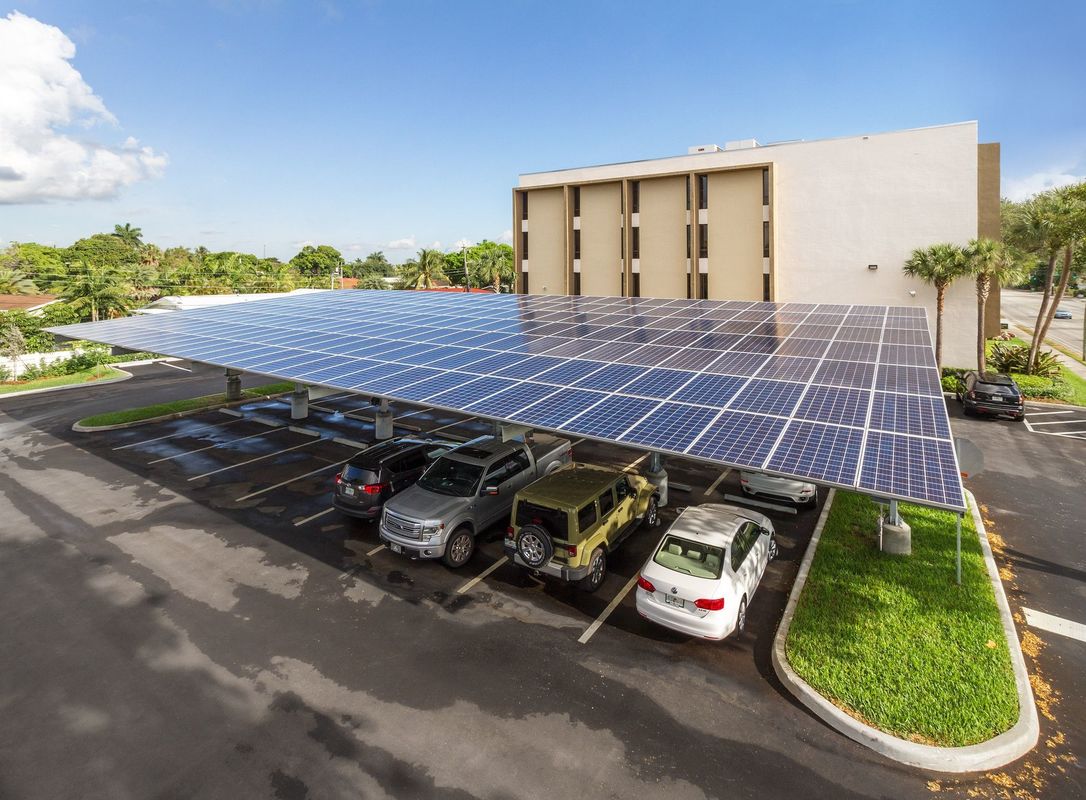

1. Parking lot/Parking Area/Commercial
2.Office building ,factory and warehouse
3.Shopping mall,venue,stadium and so on
4.Power station,field operation and some huge engineer construction,ect……
Technical Data
| Off grid solar power system- SP8KW | |||
| System | Solar panel rated output power: 8400W | ||
| Basic Information | Suitable for daily power consumption : >50.4KWH | ||
| Allowable max loads power : 8KW(=11.4KVA) | SP-8kw | ||
| Full set: | |||
| Total volume:3.6CBM | |||
| Total weight:1310KG | |||
| Solar panel | FS350W mono solar panel(poly optional) | QTY | |
| Vmp:38.39V Voc:47.13V Imp 9.37A | 24pcs | ||
| (Mono) ( poly) | Size : 1956*992*40mm | ||
| 25 years life time (CE TUV) | |||
| Coated steel Glass:3.2mm Tem pered | |||
| Efficiency performance :25 years 80 % 20 year 85% 10 years 90% | advantage: | ||
| Connect way:each 4 pcs in series | Training team and installation service | ||
| PV Array Combiner | Model:H6T-96v Multiple PV strings inputs | QTY | |
| and controller, Prevent hot spot effect | 1pc | ||
| Reliable thunderstorm& surge protection | |||
| Product Size:400*425*145mm | |||
| Solar Controller | MPPT controller model:96V/60A | QTY | |
| Charging efficiency; 90%-95%, | 1pc | ||
| charging mode, intelligent control., | |||
| various protection functions | |||
| Pure sine wave Inverter | Inverter:8KW96VDC | QTY | |
| 110V/120V/220V/230V/240VAC output, | 1pc | ||
| City power and generator charger build in Overload, overcharge, over-discharge protection | |||
| Fuji brand IGBT material | |||
| Gel Battery | Capacity:12V/150AH | QTY | |
| full sealed Solar power gel battery, | 16pcs | ||
| Service life:6-8 years , | |||
| Size:483*170*219mm | |||
| Connect way: 8pcs battery in series is each string, | |||
| 2 strings connect to solar hybrid inverter | |||
| panel rack | Slope Rooftop or Flat rooftop | QTY | |
| wind load:55m/s,snow load:1.5kn/m2 | 1set | ||
| structure:Anodized Aluminum+stainless steel, Angle adjustable | |||
| (other type of rack can be customized as per client's requirement ) | |||
| Cables | 1) 14pcs 16mm2*35CM battery cable | QTY | |
| 4pcs 16mm2*1M battery cable | 1set | ||
| 2)4mm2 PV cable 200M | |||
| 3)terminals and MC4+2P63A Battery switch | |||
Product Highlights
The Applications of the of grid system : Complete Off grid tied Solar Power Generator/Solar Home Power System,SNAT would offer the system 300W to 50KW with good quality and fast transportation.Below SNAT Off grid solar home power system SNT-S 8000W only for reference,other type of systems can be ...
