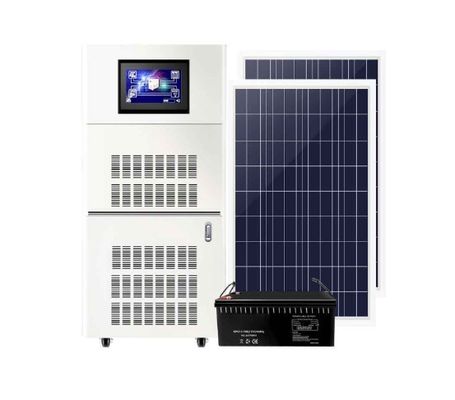

Villa Home Off Grid DC48V Hybrid Solar Pv System

Villa Home Off Grid DC48V Hybrid Solar Pv System

  • Villa Home Off Grid DC48V Hybrid Solar Pv System
  • Villa Home Off Grid DC48V Hybrid Solar Pv System
  • Villa Home Off Grid DC48V Hybrid Solar Pv System
  • Villa Home Off Grid DC48V Hybrid Solar Pv System
Villa Home Off Grid DC48V Hybrid Solar Pv System
Product Details:
Place of Origin: China
Brand Name: Fenigal
Certification: ISO, CE
Model Number: PV Solar System
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: depend on quantity
Contact Now
Detailed Product Description
Application: Home/Villa/Manor/Mansion/Apartment System Name: PV Solar System
System Voltage: DC48V Watt Options: 2000w/3000w/6000w/8000w/10000w
System: Off Grid Suitable For Daily Power Consumption: >50.4kwh
Output Voltage: 110V-240V Optional Max Power: Normal Inverter Power *120%
Approve: TUV, UL, CE, ISO
High Light:

villa hybrid solar pv system

,

DC48V hybrid solar pv system

,

hybrid solar pv system DC48V

The Applications of the of grid system :
Solar power is an environmental friendly safe energy with abundant supply. Installing a on grid residential solar power system is a good way to meet the rising renewable energy portfolio standards.



With various level of governments' financial support for solar power system installation and feed -in-tariff­ for purchasing solar power feed into the grid, solar power system investment has become a risk-free financial product with a very attractive rate of return.



Small systems such as this 2000 Watt microinverter kit are great entry level packages to get you going with solar. The seven 310W modules don't take up much roof space, but the energy they produce can offset small and medium size loads like lighting, television and your kitchen appliances.

The 175-375kWh generated by these systems is great for a person who is already a conservative user of electricity. The average American uses 920kWh per month. Based on that average, this system could provide 20-41%. If you're a below average consumer, a small 2000W system like this might be all you need to get started then expand your system later.



Technical Data



Off grid solar power system
System Solar panel rated output power: 2000W
Basic Information Suitable for daily power consumption : >50.4KWH
  Allowable max loads power : 8KW(=11.4KVA) SP-8kw

    Full set:
    Total volume:3.5CBM
    Total weight:1300KG
Solar panel FS350W mono solar panel(poly optional) QTY
  Vmp:38.39V Voc:47.13V Imp 9.37A 24pcs
(Mono) ( poly) Size : 1956*992*40mm
  25 years life time (CE TUV)
  Coated steel Glass:3.2mm Tem pered
  Efficiency performance :25 years 80 % 20 year 85% 10 years 90%   TANFON advantage:
  Connect way:each 4 pcs in series   Training team and installation service
PV Array Combiner Model:H6T-96v Multiple PV strings inputs QTY
and controller, Prevent hot spot effect 1pc
Reliable thunderstorm& surge protection
Product Size:400*425*145mm
Solar Controller MPPT controller model:96V/60A QTY
Charging efficiency; 90%-95%, 1pc
charging mode, intelligent control.,
various protection functions
Pure sine wave Inverter Inverter:8KW96VDC QTY
110V/120V/220V/230V/240VAC output, 1pc
City power and generator charger build in Overload, overcharge, over-discharge protection
Fuji brand IGBT material
Gel Battery Capacity:12V/150AH QTY
full sealed Solar power gel battery, 16pcs
Service life:6-8 years ,
Size:483*170*219mm
Connect way: 8pcs battery in series is each string,
2 strings connect to solar hybrid inverter
panel rack Slope Rooftop or Flat rooftop QTY
wind load:55m/s,snow load:1.5kn/m2 1set
structure:Anodized Aluminum+stainless steel, Angle adjustable
(other type of rack can be customized as per client's requirement )
Cables 1) 14pcs 16mm2*35CM battery cable QTY
4pcs 16mm2*1M battery cable 1set
2)4mm2 PV cable 200M
3)terminals and MC4+2P63A Battery switch
Home system Load reference
Load name Load's watt Qty Total watt
lights 11W 12 132 This exemple is just for reference. But Your load can be less than 8kw
Fan 80W 4 320
Computer(LCD display) 150W 2 300
printer 250W 1 250
Fax machine 150W 1 150
refrigerator(200L) 120W 3 360
Washing machine 300W 1 300
Microwave 1500W 1 1500
Electric cooker 300W 2 600
Air conditioner(1.5HP) 1125W 3 3375
Satellite TV receiver/VCD 25W 1 25
Color TV(32 inch) 150W 2 300
Water pump 200W 1 200
Total 7812
